Features

  • Foldable V-Mount Battery Mount Plate
  • Compact size for easy portability
  • PD3.0 100W fast charging technology
  • Rotatable design

Description

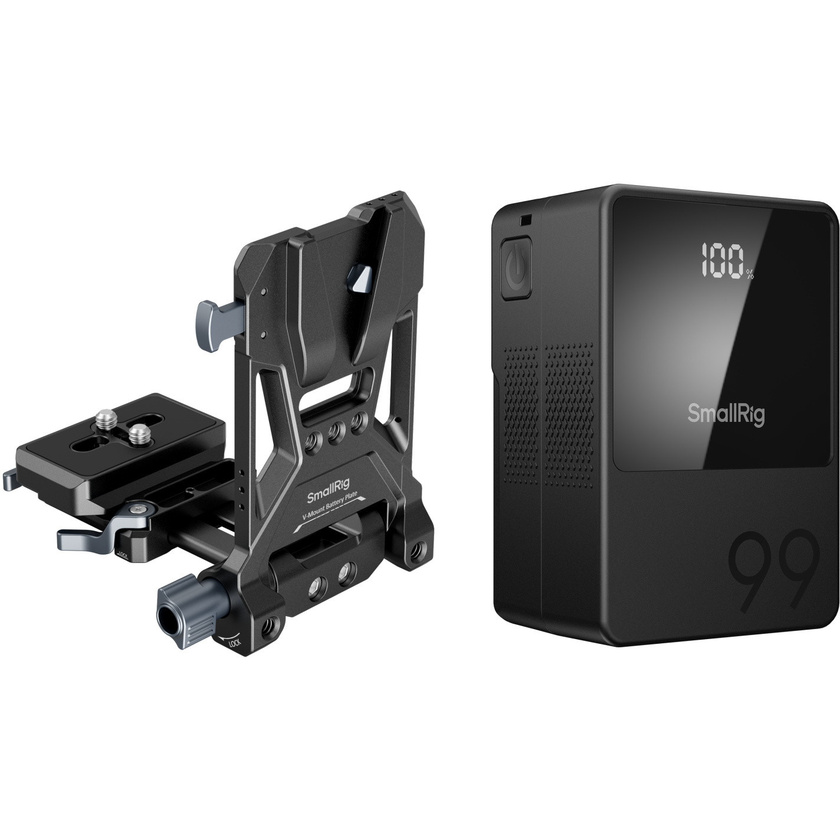

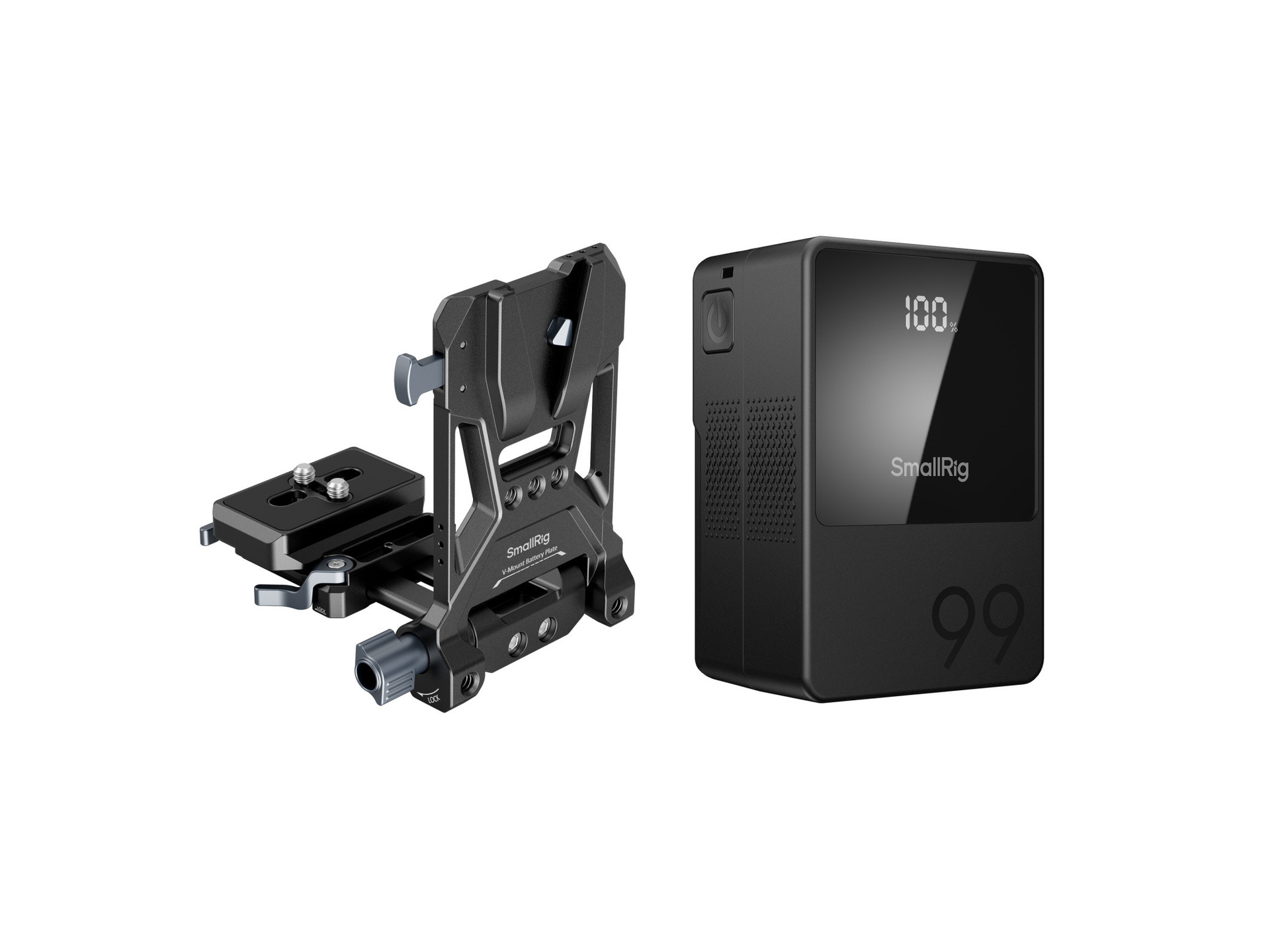

The SmallRig 5048 VB99 mini V Mount Battery includes the VB99 mini V Mount Battery with the foldable V-Mount Battery Mount Plate, providing a compact and lightweight integrated V-mount battery power solution. This kit stands out for its exceptional compatibility, adapting seamlessly to various devices and shooting environments. Its small size and portable design allow for convenient carrying and storage, providing power solutions to your devices anytime, anywhere.

The VB99 mini V Mount Battery is equipped with top-tier LG cells and features PD3.0 100W fast charging technology. It also has multiple interfaces to cater to your diverse power needs during shooting, ensuring safety and reliability.

The rotatable design of the V-mount plate enables quick access to the camera flip screen, while a foldable structure facilitates storage.

VB99 mini V mount battery kit is a portable, flexible, and high-performance power solution that meets creators' power needs in various situations.

Certification: CCC / FCC / CE / RoHS / ISED / RCM / PSE / KC /TISI

Note:

V-Mount Battery Mount Plate:

Maximum Load Capacity: 5kg / 11lb

To be used with SmallRig cages or baseplates

Button Functions:

Single Click:

Turn off the screen at normal brightness

Restore maximum brightness after dimming

Illuminate the screen after shutdown or screen blackout

Double Click: Switch between displaying voltage and power in charging and discharging mode

3-Second Press: Press and hold for 3 seconds to forcibly power off the USB-C, USB-A, and DC ports for discharging. Restore port operation by single-clicking or reinserting the plug ****

Specifications

Product Dimensions 145 x 114 x 84mm / 5.7 x 4.6 x 3.3in
Package Dimensions 148.5 x 125 x 104.5mm / 5.8 x 4.9 x 4.1in
Product Weight 834 ± 10.0g / 29.4 ± 0.4oz
Package Weight 1091 ± 10.0g / 38.5 ± 0.4oz
Material(s) Flame Retardant PC
Capacity 14.54V 6800mAh 98.872Wh
Rated Discharge Power 100W
Input
USB-C 100W(Max)
D-Tap / BP 6.8A (Max)
Output
USB-C 5V⎓3A﹑9V⎓3A﹑12V⎓3A﹑15V⎓3A﹑20V⎓5A (Max)
USB-A 5V⎓3A﹑9V⎓3A﹑12V⎓2A (Max)
BP/D-Tap 10A (Max)
8V-OUT 8V⎓3A (Max)
12V-OUT 12V⎓3A (Max)
Charging Protocols
USB-C PD3.0 / QC2.0 / QC3.0 / PPS / DCP-1.5A / APPLE-2.4A
USB-A QC2.0 / QC3.0 / DCP-1.5A / APPLE-2.4A
Cut-Off Voltage 11.2V
Operating Temperature -15℃ to 60℃ / 5℉ to 140℉
Charging Temperature 0℃ to 45℃ / 32℉ to 113℉
Optional Charging Methods BP, 16.8V D-Tap, USB-C

In The Box

  • VB99 mini V Mount Battery  x 1
  • V-Mount Battery Mount Plate Kit x 1
  • SmallRig Custom Sticker Set x 1
  • User Manual x 1
  • Operation Guide x 1
  • Guarantee Card x 1
