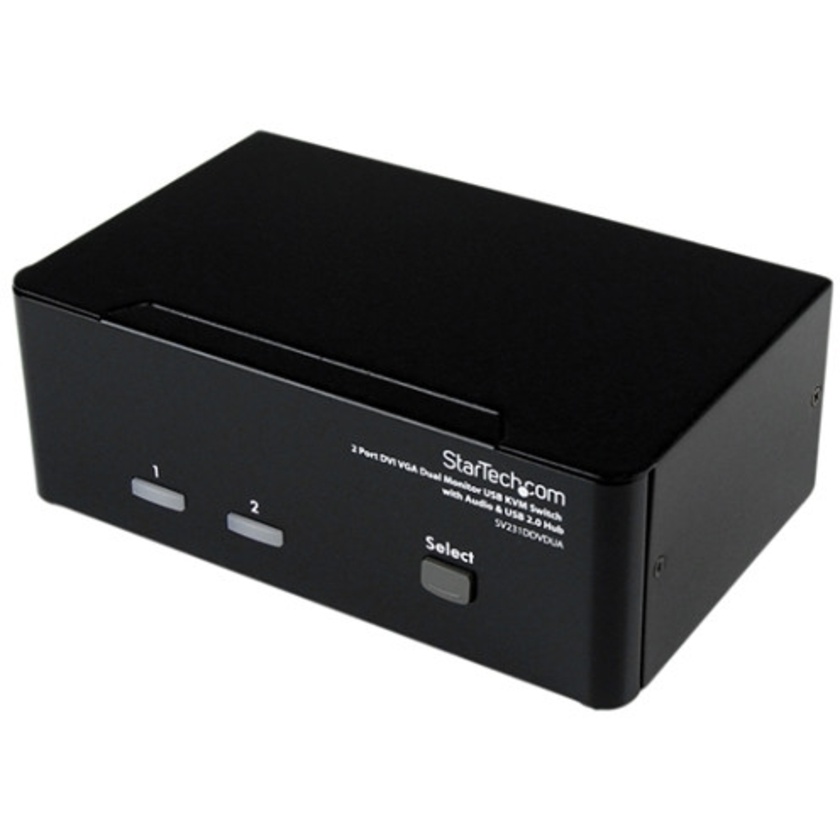

StarTech 2-Port DVI+VGA Dual Monitor KVM Switch with Audio & USB 2.0 Hub

Product #77940 | SKU SV231DDVDUA | Startech
In stock Ships direct Monday
Our Price $569.00
In stock Ships direct Monday
- +

this item may be nonreturnable
Shipping & Availability
Ships Monday. Deliver to Auckland for $9.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 4 working days
Click & Collect

Related Products


Features

  • 1920 x 1200 Maximum Resolution
  • Integrated 2-Port USB 2.0 Hub
  • Dual Monitor Support
  • All-Metal Chassis
  • Push-Button and Hotkeys

Description

The black StarTech 2-Port DVI+VGA Dual Monitor KVM Switch with Audio & USB 2.0 Hub allows you to control two dual display computers, using a single USB mouse and keyboard peripheral set. With support for high-resolution video interfaces, this dual view KVM switch provides one VGA (analogue) and one DVI-I port per computer connection, as well as audio-switching capability between connected computers.

The DVI + VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers. It offers a compact design with a rugged metal chassis for durable performance.

Key Features:

  • Direct channel selection and operation using front panel push-button, or keyboard hotkeys
  • Supports a maximum resolution of 1920 x 1200
  • OS independent (no drivers or software required)
  • Independent USB hub and audio switching
  • Full support for plug and play peripherals
  • All-metal chassis for use in harsh environments
  • Status LED display for port status monitoring
  • USB style keyboard and mouse, plus two other USB peripherals can be shared between two computers
  • Tone indicator for computer switching
  • Selectable time intervals for auto scan
  • Rear function key to adjust video strength
  • HDCP compliant
  • Supports DDC2B emulation and EDID pass through, which allows the display adapter to recognise and auto configure the display resolutions to match the display capabilities
  • Supports dual monitor/flat panel displays (1 x DVI + 1 x VGA)
  • For desktops, workstations and servers with both VGA and DVI-digital ports, allowing you to take advantage of the dual monitor configurations
  • For financial/banking industries, graphic designers, engineers, multi-media designers, and industries using CAD/CAM applications, where high-resolution dual monitor units are needed
  • For use in environments with electromagnetic interference, based on sturdy metal design
  • Provides support for setups where one machine is DVI and VGA, and the other is VGA and VGA (with available adapters)

Specifications

Connectors
KVM Ports 2
PC Interface USB
PC Video Type DVI+VGA
Multi-Monitor Yes
Console Interfaces 1 x DVI-I (29-pin) female
1 x VGA (15-pin, high density D-Sub) female
2 x 3.5 mm mini jack (3-position) female
4 x USB A (4-pin) female
Host Connectors 2 x DVI-I (29-pin) female
2 x USB B (4-pin) female
2 x VGA (15-pin, high density D-Sub) female
4 x 3.5 mm mini jack (3-position) female
Performance
DVI Support Single link
Maximum Digital Resolution 1920 x 1200
Maximum Number of Users 1
Port Selection Push button and hotkeys
Selection Support MTBF 64,691 hours
Indicators
LED Indicators Power: 1 x green
PC Detected: 2 x green
PC Indicator: 2 x red
Power
Plug Type M
Centre Tip Polarity Positive
Input Voltage 110 ~ 240 AC
Input Current 0.8 A
Output Voltage 12 VDC
Output Current 1.5 A
Environmental
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Relative Humidity 80%
OS Compatibility OS independent (No software or drivers required)
General
Enclosure Type Steel
Compliance FCC, COE, RoHS
Length 6.4" (162.5 mm)
Dimensions (W x H x D) 6.3 x 2.2 x 3.9" (160.0 x 55.8 x 99.0 mm)
Weight 26.5 oz (751.2 g)

In The Box

  • StarTech 2-Port DVI+VGA Dual Monitor KVM Switch with Audio & USB 2.0 Hub
  • 1 x Pack Rubber Feet
  • 1 x Universal Power Adapter
