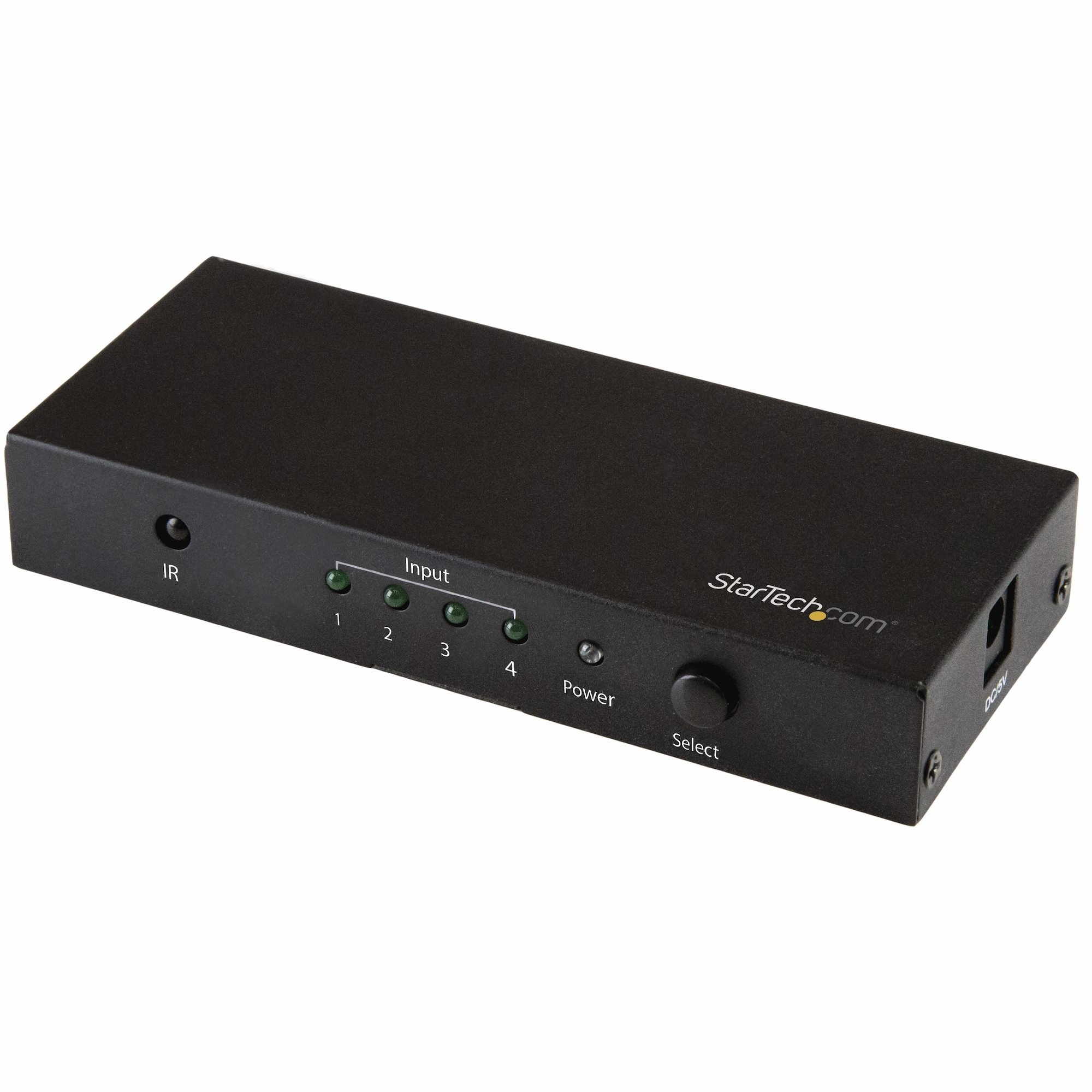

StarTech 4-Port HDMI Automatic Switch - 4K 60Hz

Product #83480 | SKU VS421HD20 | Startech
In stock Ships in 2 - 4 working days
Our Price $149
In stock Ships in 2 - 4 working days
- +

this item may be nonreturnable
Shipping & Availability
Ships in 2 - 4 working days. Deliver to Auckland for $8.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 4 working days
Click & Collect

Features

  • Astonishing picture quality with support for 4K 60Hz
  • Hassle-free operation with automatic 4-port switching
  • IR remote control included
  • 1 surround sound
  • Front-panel toggle-switch button

Description

This StarTech 4-Port HDMI Automatic Switch - 4K 60Hz lets you share an HDMI 2.0 display or projector with four HDMI 2.0 video sources. The switch features four independent video inputs that can each support 4K resolution at 60Hz, making it the perfect solution for connecting four video sources to a display that has a limited number of HDMI 2.0 ports.

Key Features:

Astonishing picture quality with support for Ultra HD 4K at 60Hz

The HDCP 2.2 HDMI switch lets you harness the High Dynamic Range (HDR) capability of your HDMI 2.0 video sources and deliver it to your UHD 4K60 display. Unlike many 4K switches that only support a 30Hz refresh rate, this switch works with HDMI 2.0 displays with output resolutions of up to 3840 x 2160p at 60Hz.

Don't be fooled by a clever spin on old technology. Many HDMI switches support 4K but will only work at a 30Hz refresh rate, or claim support for 60Hz but heavily compress their signal to a lower 4:2:0 chroma subsampling in order to work at inferior bitrates. This 4K 60Hz HDMI switch uses the latest components to offer full support for your HDMI 2.0 equipment, supporting true 4K resolution at 60Hz with 4:4:4 chroma subsampling. Support for HDMI 2.0 devices means this switch can transmit bandwidth up to 18Gbps, making it ideal for high-resolution computer tasks.

The switch is backward compatible with 4K 30Hz and 1080p displays, which ensures that it will work with lower resolution displays such as TVs or projectors around your site or in a digital signage application.

Hassle-free Operation with automatic switching

This switch ensures effortless operation with automatic switching that detects and selects a newly connected device. It's perfect for automatically switching to a 4K media player such as a 4K UHD Blu-ray™ player as soon as it's switched on. In your classroom or office boardroom, the automatic switch makes it easy to share your projector between multiple sources, which encourages on-the-fly collaboration among colleagues.

The HDMI switch also supports manual operation, using the included IR remote control or the built-in front-panel toggle switch.

Specifications

Connector
4 - Connector A HDMI (19 pin)
1 - Connector B HDMI (19 pin)
Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 80°C (14°F to 176°F)
Humidity 10% to 85% RH
Hardware
Ports 4
AV Input HDMI
AV Output HDMI
Audio Yes
Industry Standards HDMI 2.0
Indicators
4 - LED Indicators input LEDs
1 - LED Indicators power LED
Packaging Information
Package Height 2,1 in [53,0 mm]
Package Length 5,9 in [15,1 cm]
Shipping (Package) Weight 15,3 oz [434,0 g]
Package Width 0,9 in [22,0 mm]
Performance
Maximum Digital Resolutions 4K @ 60 Hz
Supported Resolutions 3840x2160 (4K) 60Hz
2560x1600 60Hz
1920x1200 60Hz
1920x1080 (1080p) 60Hz
1280x720 (720p) 60Hz
Wide Screen Supported Yes
Audio Specifications 7.1 Surround sound
General Specifications Lower resolutions are also supported
Physical Characteristics
Weight of Product 5,4 oz [152,0 g]
Color Black
Material Steel
Product Length 4,8 in [12,3 cm]
Product Width 2,0 in [51,0 mm]
Product Height 0,8 in [20,0 mm]
Power
Power Source AC Adapter Included
Input Voltage 100 - 240 AC
Input Current 0.4 A
Output Voltage 5 DC
Output Current 2000 mA
Plug Type M

In The Box

  • StarTech 4-Port HDMI Automatic Switch - 4K 60Hz

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: StarTech 4-Port HDMI Automatic Switch - 4K 60Hz
  • Manufacturer: Startech
  • Model: VS421HD20
  • SKU: VS421HD20
  • RM Product #: 83480
