StarTech 8 Port USB to DB9 RS232 Serial Adapter

Name: StarTech 8 Port USB to DB9 RS232 Serial Adapter
Brand: Startech
SKU: 79596
Price: 539.00 NZD
Availability: InStock

Product #79596 | SKU ICUSB2328I | Startech

| Write a review

In stock Ships in 2 - 4 working days

StarTech 8 Port USB to DB9 RS232 Serial Adapter

Our Price $539

In stock Ships in 2 - 4 working days

this item may be nonreturnable

Request price match

Talk to our experts

Shipping & Availability

Ships in 2 - 4 working days. Deliver to Auckland for $12 Change location

Click & Collect

Check availability

Features

USB to 8-Port Straight-Through RS232 Serial Adapter
Rugged metal construction
Wall-mountable, and includes DIN Rail clips
Baud Rate up to 921.6 Kbps
Powered by an available USB port

Description Specifications In The Box

Description

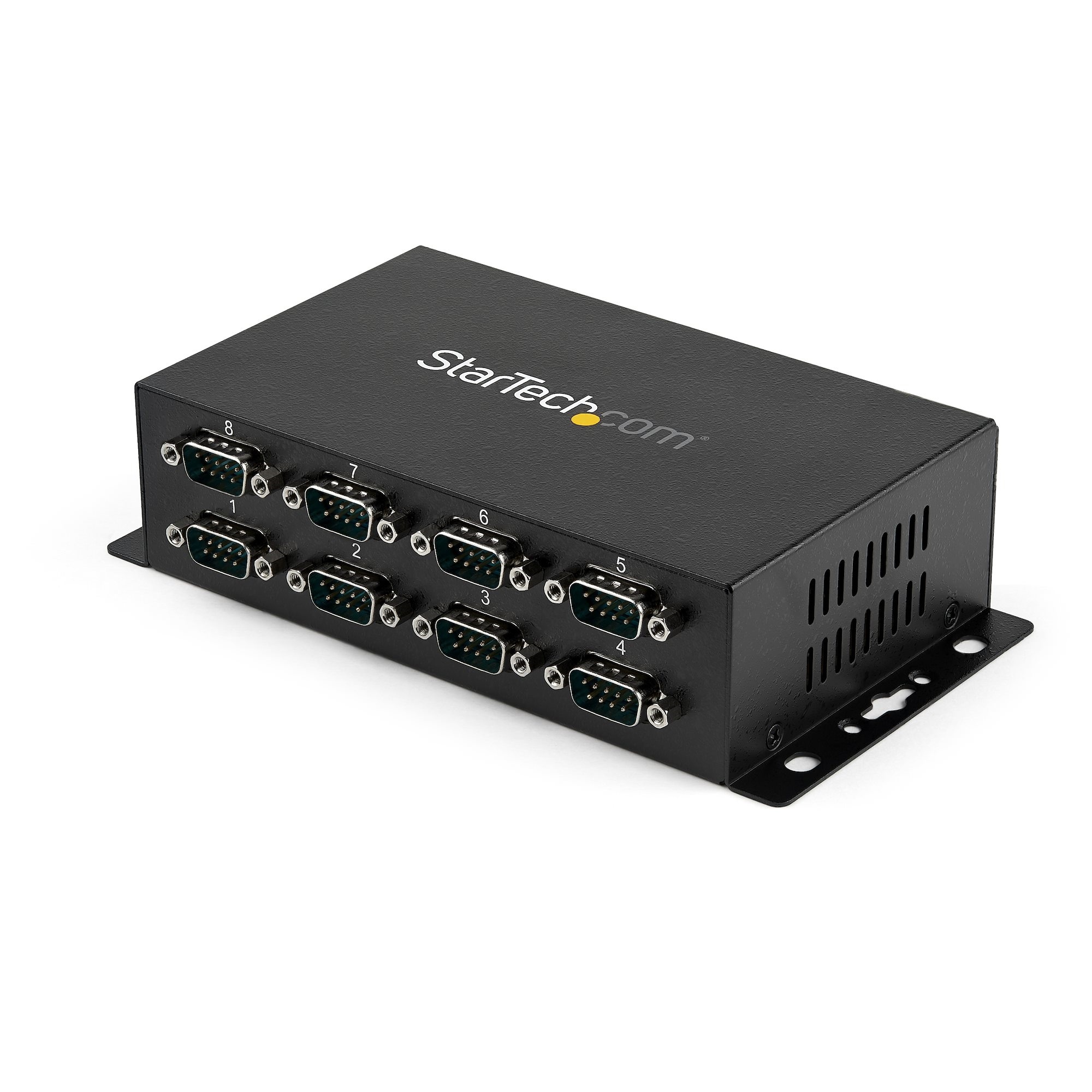

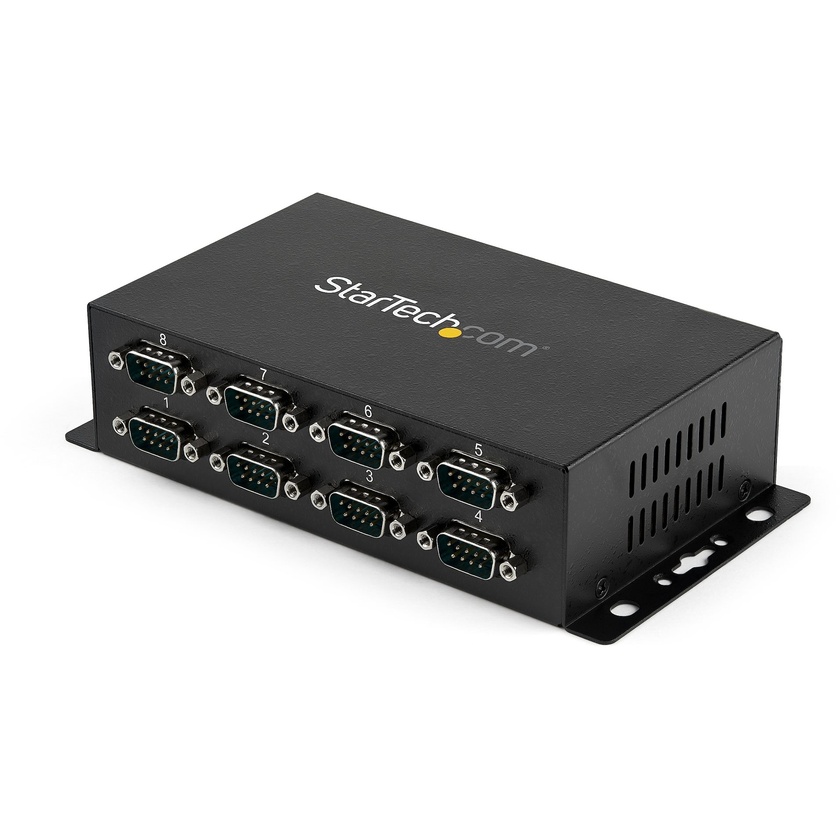

The StarTech 8 Port USB to DB9 RS232 Serial Adapter converts a single USB port into eight RS232 serial ports, enabling you to connect to, monitor and control your serial devices.

Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this 8 port USB to RS232 Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.

This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the USB serial hub ports.

Specifications


Connector
External Ports	1 - USB B (4 pin)
8 - DB-9 (9 pin, D-Sub)
Environmental
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-20°C to 85°C (-4°F to 185°F)
Humidity	5~95% RH
Hardware
Ports	8
Interface	Serial
Bus Type USB	2.0
Port Style	External Hub
Chipset ID	FTDI - FT232RL
Indicators
LED Indicators	1 - Power
Packaging Information
Package Height	2.8 in [71 mm]
Package Length	7.5 in [19.1 cm]
Shipping (Package) Weight	1.9 lb [0.9 kg]
Package Width	11.7 in [29.6 cm]
Performance
Maximum Data Transfer Rate	921.6 Kbps
Serial Protocol	RS-232
Max Baud Rate	921.6 Kbps
Data Bits	7, 8
FIFO	4096 byte Transmit and Receive
Parity	Odd, Even, Mark, Space, None
Stop Bits	1, 2
MTBF	146,300 Hours
Physical Characteristics
Weight of Product	19.5 oz [553 g]
Color	Black
Material	Steel
Product Length	7.1 in [18 cm]
Product Width	3.9 in [100 mm]
Product Height	1.7 in [4.3 cm]
Power
Power Source	USB-Powered
Input Voltage	5 DC
Input Current	250 mA
Plug Type	M
