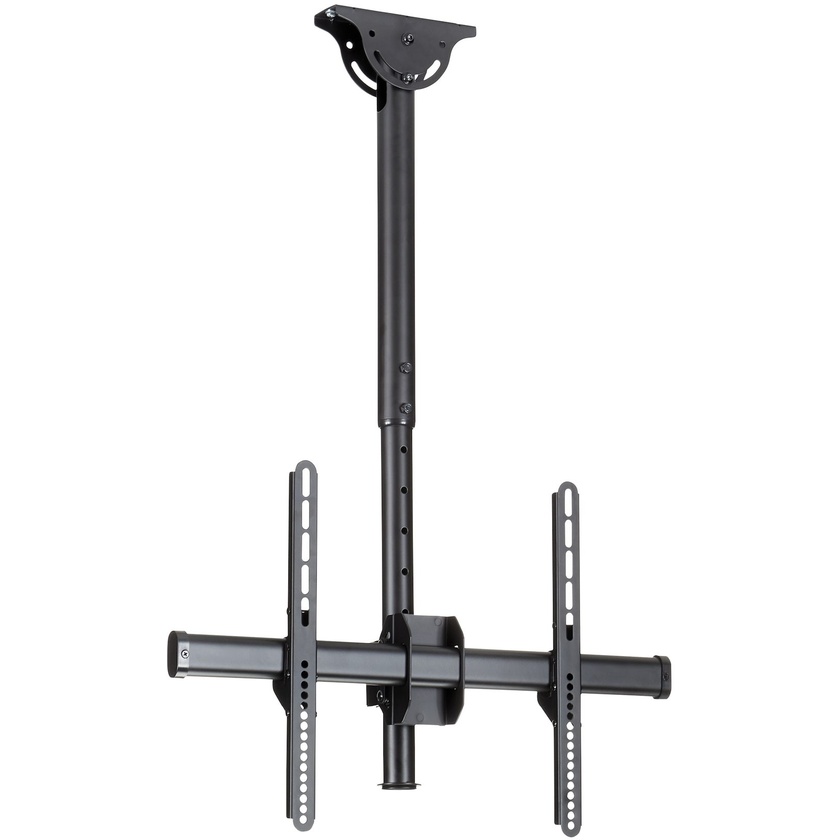

StarTech Ceiling TV Mount for up to 75in TV Steel

Product #83457 | SKU FPCEILPTBSP | Startech
Contact us for an ETA what does this mean?
Our Price $419
Contact us for an ETA what does this mean?
This product can't be purchased at this time, please contact us for more information.
- +

Email me when stock arrives


Features

  • Adjustable Height
  • Swivels to Suit Your Ceiling
  • Viewable from Any Direction
  • Hook-and-Mount Design

Related Products


Description

This StarTech Ceiling TV Mount for up to 70in TV Steel supports VESA mount compatible TVs from 32" to 75" in size, with a weight capacity of up to 110 lb. (50 kg). It lets you save wall and floor space by hanging your flat-panel LCD, LED or plasma TV from the ceiling in a prominent area.

The ceiling mount is ideal for use in corporate boardrooms, lobbies, entrances, restaurants, bars and meeting places.

Key Features:

  • Save space by suspending your 32 to 75" flat-screen TV from the ceiling
  • Min-max pole length extension of 22.0" to 35.8" (560 to 910 mm)
  • Ceiling TV mount swivels +60 /-60 degrees to adjust to sloped or level ceilings
  • Full-motion mount lets you swivel the display +180 /-180 degrees around the pole and tilt downwards -25 degrees, without using tools
  • Durable steel mount supports TVs up to 110 lb.(50 kg)
  • Easy setup, with a hook-and-mount design
Adjustable Height

With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling. This works well with a range of ceiling heights. The steel pole can extend from 22" to 33.5" (560 to 910 mm), with a total lift (height extension) of 13.7" (350 mm).

Swivels to Suit Your Ceiling

The flat-screen ceiling mount accommodates a wide variety of ceiling types. You can swivel the TV to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to 60 degrees), and pitched or horizontal (flat) ceilings.

Viewable from Any Direction

You can adjust your TV to create a comfortable viewing angle, by tilting it up to -25 degrees down towards your audience for optimum visibility. Plus, the full-motion mount lets you swivel your display around the pole + 180 / - 180 degrees, without using tools.

Hook-and-Mount Design

Simply attach the included vertical brackets, with built-in hooks, to the back of your TV. Once attached, hang your TV securely onto the ceiling mount. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.

Specifications

Hardware
Cable Management Yes
# of Displays Supported 1
Mounting Options Ceiling Mount
Wallmountable No
VESA Hole Pattern(s) 200x200 mm
300x300 mm
400x200 mm
400x400 mm
600x400 mm
Mounting Surface Thickness 560 mm to 910 mm
Packaging Information
Package Height 5.9 in [14.9 cm]
Package Length 14.4 in [36.6 cm]
Shipping (Package) Weight 15.1 lb [6.8 kg]
Package Width 30.4 in [77.1 cm]
Performance
Weight Capacity (Per Display) 110.5 lb [50 kg]
General Specifications Post-Installation Leveling Adjustment: +/-3°
Minimum Display Size 32in
Maximum Display Size 75"
Fits Curved Display Yes
Video Wall No
Height Adjustment Yes
Minimum Height 22.0 in [56 cm]
Maximum Height 35.8 in [91 cm]
Display Tilt +0° / -25°
Swivel / Pivot +180° to -180°
Display Rotation 360°
Anti-theft No
Physical Characteristics
Weight of Product 10.8 lb [4.9 kg]
Color Black
Material Steel
Product Length 17.1 in [43.5 cm]
Product Width 26.8 in [68 cm]
Product Height 3.8 ft [1.2 m]

In The Box

  • ceiling mount and pole
  • extension pole
  • 2 x vertical brackets
  • 1 - Included in Package horizontal bracket
  • 2 x bolts
  • 2 x nuts
  • wrench
  • hex key
  • mounting template
  • 4 x M5x14 mm screws
  • 4 x M6x14 mm screws
  • 4 x M6x30 mm screws
  • 4 x M8x30 mm screws
  • 4 x M8x50 mm screws
  • 4 x rectangular washers
  • 8 x small spacers
  • 8 x large spacers
  • 4 x 6.3x55 mm screws
  • 4 x concrete anchor
  • 4 x circular washers
  • instruction manual

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: StarTech Ceiling TV Mount for up to 75in TV Steel
  • Manufacturer: Startech
  • Model: FPCEILPTBSP
  • SKU: FPCEILPTBSP
  • RM Product #: 83457
  • Max Screen Size Supported: 75.00000 inches
  • Min Screen Size Supported: 32.00000 inches
  • Mounts Supported: 1
  • Max Weight Supported: 50.0 Kg
