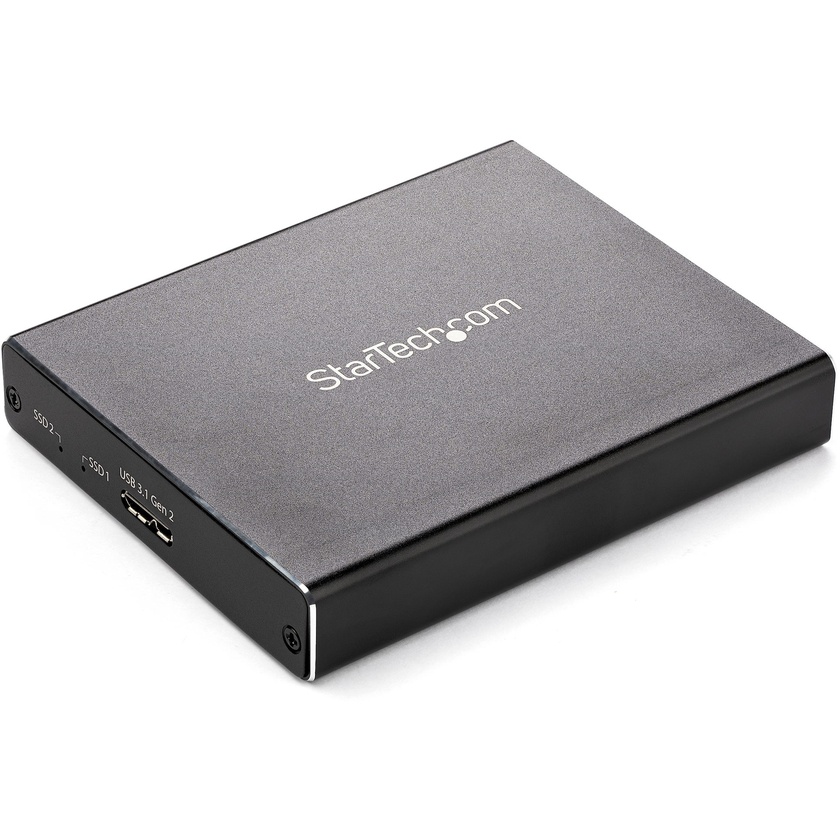

StarTech Dual M.2 Enclosure - RAID USB 3.1 Gen 2

Product #83432 | SKU SM22BU31C3R | Startech
In stock Ships in 2 - 4 working days
Our Price $159
In stock Ships in 2 - 4 working days
- +

this item may be nonreturnable
Shipping & Availability
Ships in 2 - 4 working days. Deliver to Auckland for $5.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 4 working days
Click & Collect

Features

  • Not compatible with M.2 NVMe or AHCI PCI-Express SSDs
  • Supports SSD TRIM to prolong drive lifespan and performance
  • Solid aluminum enclosure with SATA I, II, III (up to 6Gbps) support
  • Compatible with Thunderbolt 3 USB-C port
  • Backward compatible with USB Gen 1 (USB 3.0), USB 2.0, USB 1.x

Related Products


Description

This StarTech Dual M.2 Enclosure - RAID USB 3.1 Gen 2 makes it easy to add ultra-fast, portable external storage to your USB-C™ or USB-A enabled laptop, tablet, smartphone or desktop computer. Its multiple RAID modes provide increased capacity, improved performance, or data redundancy.

Key Features:

Access your external data at greater speeds

Quickly access, transfer, and backup your files wherever you go. This dual-slot M.2 RAID enclosure enables you to easily access your data by creating a high-performance, ultra-portable storage solution using two M.2 (NGFF) SATA SSDs. It’s ideal for creative professionals, such as photographers and videographers, as well as professionals in corporate, educational and government sectors who need fast access to important data files, while out in the field or back at the office.

The RAID enclosure enables you to leverage the speed of your M.2 (NGFF) SATA drives by taking advantage of USB 3.1 Gen 2, with data transfer rates of up to 10Gbps. It ensures easy access to your files for data migration and data backups so that you can safeguard important data at all times.

Increase performance and data redundancy

With multiple RAID options, the M.2 RAID enclosure enables you to gain increased storage size, performance, or redundancy. You can enjoy the peace of mind of knowing your files are continually backed up, or take advantage of greater speed and capacity offered by a combined solution. The enclosure supports RAID 0, RAID 1, Spanning, and JBOD, enabling you to choose your preferred backup mode. It also supports SSD TRIM to prolong drive lifespan and performance.

Make your data more portable

The dual M.2 SATA enclosure provides a highly portable storage solution. With its compact design, you can tuck it away inside your laptop bag or carrying case and take it anywhere - to the office, the lab, or for mobile use, so that you can access your data wherever you go. Engineered with a solid aluminum housing, the dual-slot M.2 SATA enclosure helps to safeguard your data wherever you go.

The M.2 SATA RAID enclosure is powered directly from the USB port on your device, so no external power is required. It comes with two USB cables (USB-C to Micro-B and USB-A to Micro-B) for flexible use with the latest laptops and tablets equipped with a USB-Type C™ port as well as legacy devices. The enclosure is OS independent, with no additional software or driver installation required, and is compatiIt’s also compatible with a Thunderbolt™ 3 USB-C port.

Specifications

Connector(s)
2 - Drive Connectors M.2 (SATA, B-Key, NGFF)
1 - Host Connectors USB 3.1 USB Type Micro-B (10 pin, Gen 2, 10 Gbps)
Environmental
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 0% ~ 90% RH
Hardware
Interface USB 3.1 Gen 2
Bus Type USB 3.1 Gen 2
Number of Drives 2
Drive Size 22mm - M.2 SATA
Compatible Drive Types M.2 (SATA, B-Key, NGFF)
Drive Installation Fixed
Supported Drive Height(s) 2230
Fan(s) No
Supported Drive Height(s) 2242
2260
2280
Chipset ID ASMedia - ASM1352R
Indicators
2 - LED Indicators Read / Write (green)
Error / Rebuilt (red)
Packaging Information
Package Height 1.3 in [32 mm]
Package Length 6.5 in [16.5 cm]
Shipping (Package) Weight 6.9 oz [195 g]
Package Width 5.2 in [13.1 cm]
Performance
Maximum Data Transfer Rate 10 Gbps
Type and Rate USB 3.1 Gen 2 - 10 Gbit/s
UASP Support Yes
4Kn Support Yes
Type and Rate SATA III (6 Gbps)
Port Multiplier Yes
TRIM Support Yes
Hardware Raid Supported Yes
Max Drive Capacity 2 TB
Supported RAID Modes RAID 0 (Striped Disks)
RAID 1 (Mirrored Disks)
BIG (Spanning or Concatenation)
JBOD - (Just a Bunch of Disks)
MTBF 35,000
General Specifications Not compatible with M.2 NVMe or AHCI PCI-Express SSDs

In The Box

  • M.2 SATA enclosure
  • USB-C to Micro-B cable - 18.5 inches
  • USB-A to Micro-B cable - 18.5 inches
  • 2 x housing assembly screws
  • 2 x sets of M.2 mounting hardware
  • screwdriver
  • quick-start guide

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: StarTech Dual M.2 Enclosure - RAID USB 3.1 Gen 2
  • Manufacturer: Startech
  • Model: SM22BU31C3R
  • SKU: SM22BU31C3R
  • RM Product #: 83432
