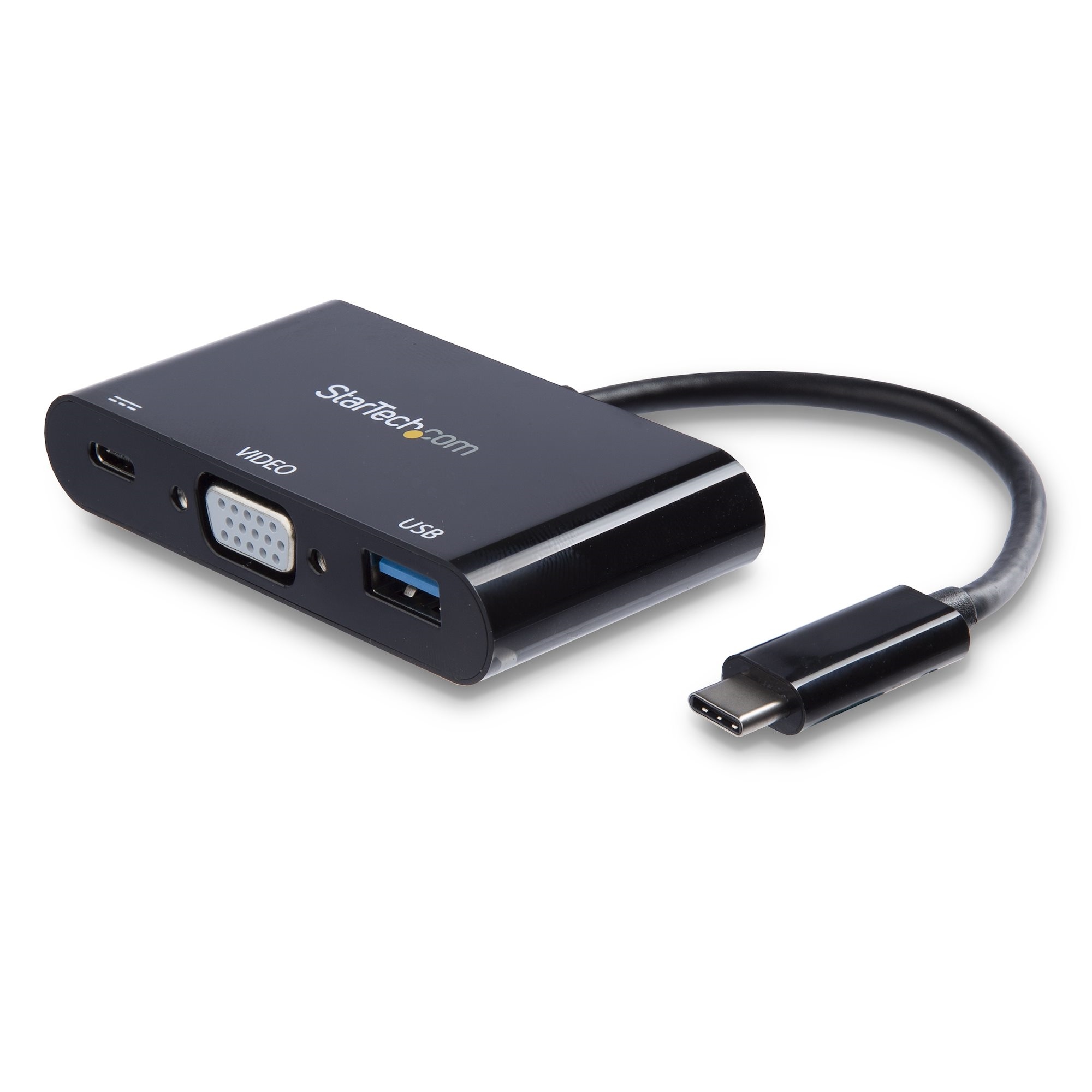

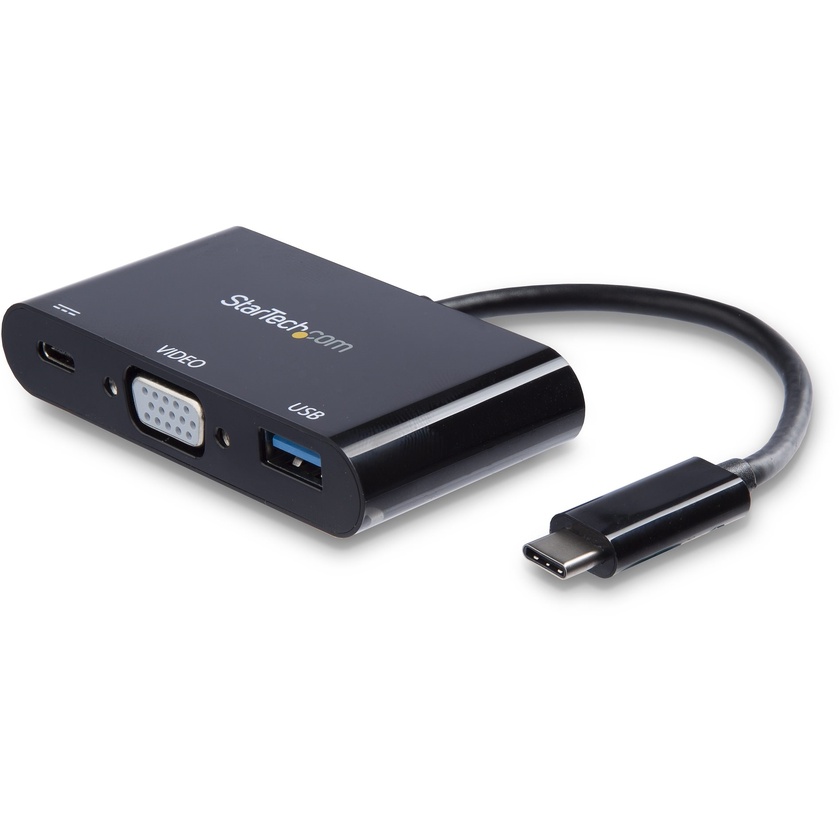

StarTech USB-C to VGA Multifunction Adapter

Product #83199 | SKU CDP2VGAUACP | Startech
Contact us for an ETA what does this mean?
Our Price $49.95
Contact us for an ETA what does this mean?
This product can't be purchased at this time, please contact us for more information.
- +

Email me when stock arrives


Features

  • Add a VGA port and a USB-A port
  • 60W Power Delivery
  • Connect a USB 3.0 Type-A device
  • Rugged design for durability
  • Thunderbolt 3 compatible

Related Products


Description

This StarTech USB-C to VGA Multifunction Adapter combines the capability of two single-function adapters, a USB-C video adapter and USB-C to USB adapter, into a portable docking station for your laptop. You can instantly connect to a VGA display and a USB 3.0 (Type-A) device, while also powering and charging your laptop using the same adapter.

Key Features:

Mobile Multitasking

With a secondary display connected to your laptop, you can multitask faster and easier. The USB-C adapter’s VGA video output lets you create a dual-screen workstation comprised of your laptop’s display and an additional VGA monitor or projector, in a boardroom or other professional environment.

Powers and Charges Your Laptop

With USB Power Delivery, you can power and charge your laptop by simply connecting the multiport adapter to your laptop’s USB Type-C port, then connecting a USB Type-C power adapter.

Universal Compatibility

The USB-C multiport adapter features a built-in USB-C cable and works with USB-C equipped MacBook, Chromebook™ and Windows laptops that support DisplayPort (DP) Alt Mode and USB Power Delivery.

Rugged and Portable

Compact, lightweight design and rugged construction lets you take this USB-C video adapter anywhere you take your laptop.

The StarTech.com Advantage for Docking Stations
  • Maximum compatibility - StarTech.com has a docking station to fit every operating system, laptop brand, and connectivity need
  • Get more done faster - More ports and more displays maximize end user connectivity and productivity
  • Quick installation - eliminate deployment headaches that waste time and frustrate end users
  • IT Grade quality - trusted by IT pros around the world for our rigorous in-house product testing, robust compliance, and lifetime multilingual technical support

Specifications

Connector
1 - Connector Type(s) USB Type-C (24 pin) USB 3.0 (5Gbps)
1 - Connector A USB-C (24 pin) DisplayPort Alt Mode
1 - Connector Type(s) VGA (15 pin, High Density D-Sub)
1 - Connector B VGA (15 pin, High Density D-Sub)
1 - Connector Type(s) USB Type-A (9 pin) USB 3.0 (5 Gbps)
1 - Connector B USB Type-A (9 pin) USB 3.0 (5 Gbps)
1 - Connector Type(s) USB-C (24 pin) USB Power Delivery only
1 - Connector B USB-C (24 pin) USB Power Delivery only
Environmental
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Humidity 5~90% RH (Non-condensing)
Hardware
4K Support No
Fast-Charge Port(s) No
Displays Supported 1
Bus Type USB-C
Industry Standards USB 3.0 - Backward compatible with USB 2.0 and 1.1
Chipset ID VIA/VLI - VL100
VIA/VLI - VL210
NXP - PTN3355
Packaging Information
Package Height 1.3 in [34 mm]
Package Length 6.7 in [17.1 cm]
Shipping (Package) Weight 3.8 oz [109 g]
Package Width 5.7 in [14.5 cm]
Performance
Maximum Data Transfer Rate 5 Gbps (USB 3.0)
Maximum Analog Resolutions 2048 x 1280p @ 60Hz
Lower resolutions are also supported.
Type and Rate USB 3.0 - 5 Gbit/s
UASP Support Yes

In The Box

  • StarTech USB-C to VGA Multifunction Adapter

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: StarTech USB-C to VGA Multifunction Adapter
  • Manufacturer: Startech
  • Model: CDP2VGAUACP
  • SKU: CDP2VGAUACP
  • RM Product #: 83199
  • Connector count: 4
  • Cable Connector: VGA (15-pin; D-Sub DB15) Female
  • Cable Connector: USB-C Female
  • Cable Connector: USB-C Male
