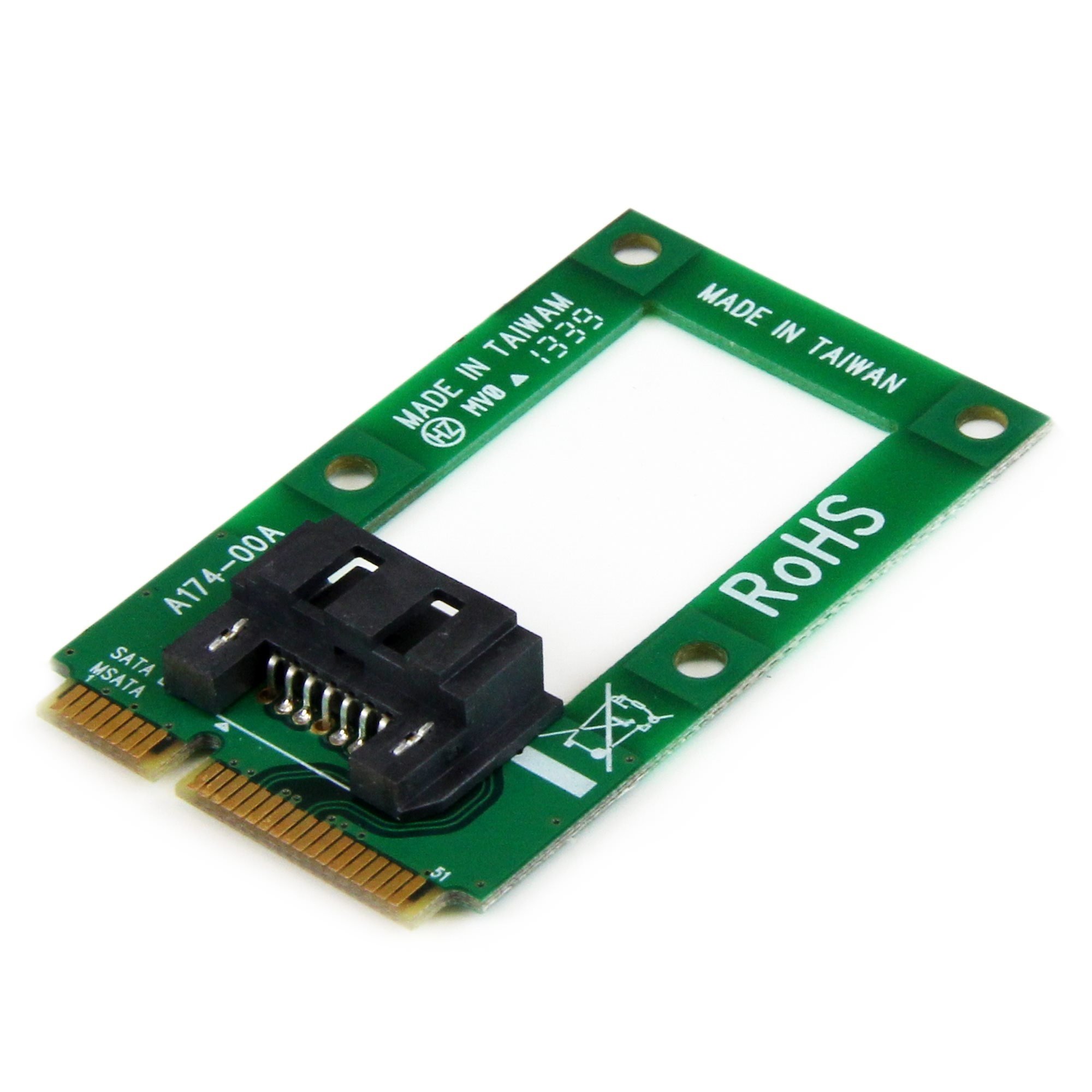

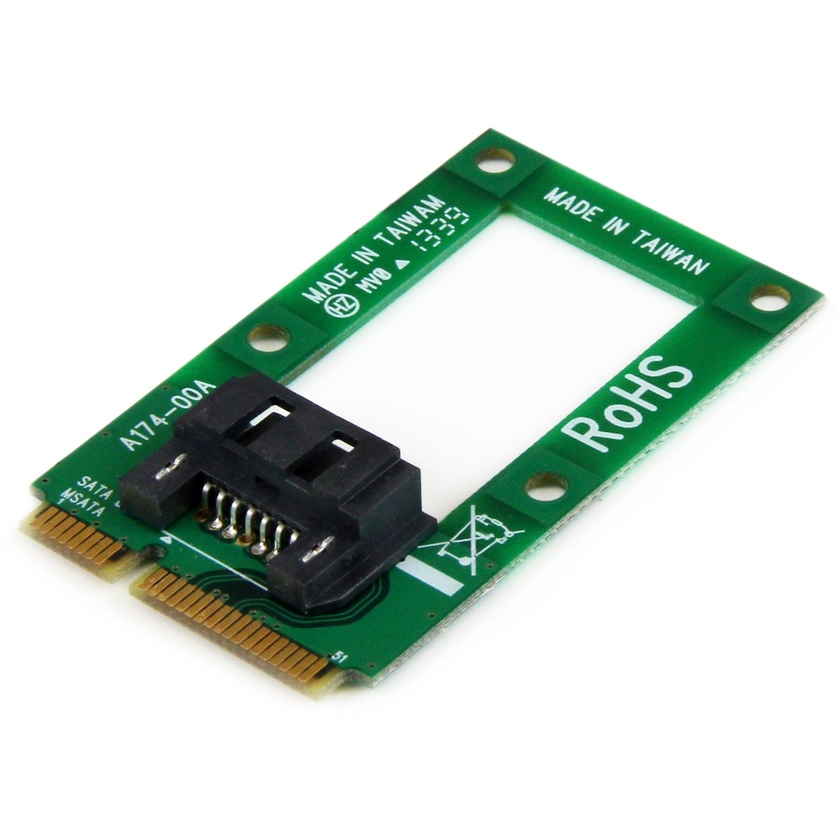

The StarTech mSATA to SATA HDD/SSD Adapter Converter enables you to connect a standard SATA drive to an available mSATA port.
The adapter improves system capacity by enabling an mSATA port to host a larger SATA hard drive (tested up to 4TB). For guaranteed compatibility and performance the adapter is compliant with SATA I/II/III revisions, allowing for transfer speeds up to 6Gb per second.
| Connector | |
| 1 - Drive Connectors | SATA (7 pin, Data) |
| 1 - Host Connectors | mSATA (52 pin, Mini SATA) |
| Environmental | |
| Operating Temperature | 5°C to 50°C (41°F to 122°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Humidity | Operating 20% to 80% |
| Non Operating 15% to 90% | |
| Hardware | |
| Interface | SATA |
| Micro SATA | |
| Number of Drives | 1 |
| Drive Size | 2.5in & 3.5in |
| Compatible Drive Types | SATA |
| Drive Installation | Fixed |
| Packaging Information | |
| Package Height | 0.4 in [10 mm] |
| Package Length | 8.9 in [22.5 cm] |
| Shipping (Package) Weight | 0.5 oz [15 g] |
| Package Width | 4.9 in [12.5 cm] |
| Performance | |
| Type and Rate | SATA III (6 Gbps) |
| Hardware Raid Supported | No |
| Max Drive Capacity | Currently tested with up to 4TB 7200 RPM hard drive |
