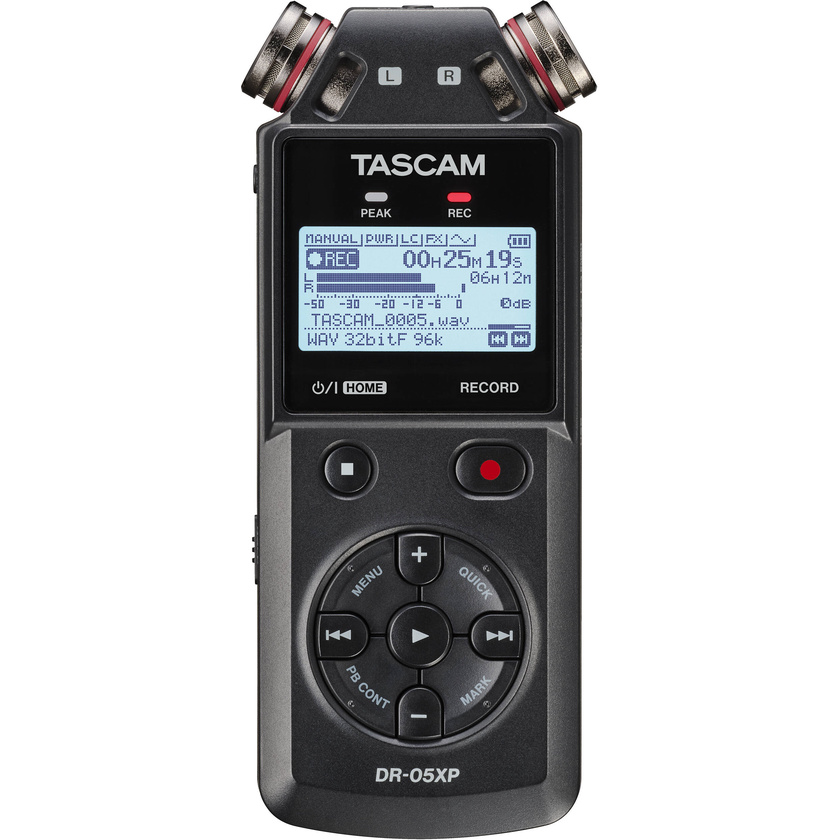

TASCAM DR-05XP 2-Channel 32-Bit Float Portable Audio Recorder

Product #121703 | SKU DR-05XP | Tascam
In stock Ships Monday
Our Price $238.81
In stock Ships Monday
- +

Shipping & Availability
Ships Monday. Deliver to Auckland for $5.90 Change location
Click & Collect Availability
Wellington In stock. Pickup Monday
Click & Collect

Features

  • Speech, Effects, and Music Recording
  • Onboard Omni Mics, Built-In Speaker
  • 3.5mm Mic/Line Input w/ Plug-In Power
  • Built-In Tuner, AEQ, and Reverb
  • Records in 32-Bit Float up to 96 kHz
  • 3.5mm Line/Headphone Output

Description

The TASCAM DR-05XP 2-Channel 32-Bit Float Portable Audio Recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation, and more. With 32-bit float recording mode, you'll never need to worry about setting audio levels. With easy one-handed operation, the DR-05XP makes it simple to start recording with minimal setup time.

Capture Pro-Level Recordings Every Time

With its 32-bit float recording mode, the DR-05XP ensures your audio recordings will always be clear, distinct, and free of distortion that could ruin your recording — and you'll never need to worry about setting input levels. Recording modes include 32-bit float / 24-bit / 16-bit, 96kHz / 48kHz / 44.1kHz and MP3.

Built-in Condenser Microphones

The DR-05XP features omnidirectional condenser microphones that can withstand high sound pressure levels (up to 125dB SPL), reducing the risk of mic distortion even in loud environments.

Simplicity in Your Palm

With the DR-05XP, the complexities of audio recording are a thing of the past. Easily access every feature from the palm of your hand. Plus, the backlit LCD screen means no squinting; just clear and concise navigation any time of day, in any environment.

Specifications

Portable Recorder
Form Factor Handheld Recorder
Number of Tracks WAV:
2
Number of Input Channels 2 (2 x Mono, 1 x Stereo)
Maximum Sampling Rate 96 kHz / 32-Bit Float
Microphone Built-In Omnidirectional Condenser Stereo Pair, A/B Configuration
Number of Microphone Inputs 1
Built-In Speaker Yes, 0.3 W Mono
Display Monochrome LCD (Backlit)
Memory Card Support microSD
microSDHC
microSDXC (Up to 512 GB)
Internal Storage No
Special Features Overdubbing, Voice Activation
Recording
Audio File Formats BWF, MP3, WAV
Sample Rates WAV:
44.1 / 48 / 96 kHz
Bit Depth 16 / 24 / 32-Bit
Bit Rates 32 to 320 kb/s (Record)
32 to 320 kb/s + VBR (Playback)
Signal Processing & FX Auto Gain, AEQ, Limiter, Low-Cut Filter, Reverb
Timecode Support No
Recording Time WAV 44.1 kHz/16-Bit:
789 Hrs (Stereo)
WAV 48 kHz/16-Bit:
526 Hrs (Stereo)
WAV 96 kHz/16-Bit:
362 Hrs (Stereo)
WAV 44.1 kHz/24-Bit:
526 Hrs (Stereo)
WAV 48 kHz/24-Bit:
724 Hrs (Stereo)
WAV 96 kHz/24-Bit:
241 Hrs (Stereo)
WAV 44.1 kHz/32-Bit:
394 Hrs
WAV 48 kHz/32-Bit:
362 Hrs
WAV 96 kHz/32-Bit:
181 Hrs
Included Software No
Connectivity
Analogue I/O 1x 1/8" / 3.5 mm TRS Female Unbalanced Line/Mic Input
1x 1/8" / 3.5 mm TRS Female Unbalanced Headphone/Line Output
Digital I/O No
Phantom Power No
Plug-In Power Yes
System Connection 1x USB-C (1.1, 2.0)
Audio Interface Capability Stereo Only
Wireless No
Mobile App Compatible No
Performance
Frequency Response 20 Hz to 20 kHz +1/-3 dB (at 44.1 kHz, JEITA)
20 Hz to 22 kHz +1/-3 dB (at 48 kHz, JEITA)
20 Hz to 40 kHz +1/-3 dB (at 96 kHz, JEITA)
Max Input Level Mic/Line Inputs:
-4 dBV
Max Output Level Line Outputs:
+2 dBV
Impedance Mic/Line Inputs:
≥18 Kilohms (Plug-In Power Off)
≥2 Kilohms (Plug-In Power On)
THD+N ≤0.01%
Microphone Max SPL 125 dB SPL
Power
Power Options Battery, USB Bus Power, AC/DC Power Adapter
Battery Type 2x AA (Not Included)
Approximate Battery Life WAV 44.1 kHz/16-Bit:
17.5 Hours (Alkaline, 2 Channels, Recording)
WAV 96 kHz/24-Bit:
15.5 Hours (Alkaline, 2 Channels, Recording)
AC/DC Power Adapter 5 VDC at 0.5 A (Not Included)
Physical
Included Accessories No
Mounting Options 1/4"-20 Female
Operating Conditions 32 to 104°F / 0 to 40°C
Dimensions 2.4 x 5.6 x 1.1" / 60.5 x 142.3 x 27 mm
Weight 4.4 oz / 126 g (without Batteries)
6.1 oz / 174 g (with Batteries)

In The Box

  • TASCAM DR-05XP 2-Channel 32-Bit Float Portable Audio Recorder
