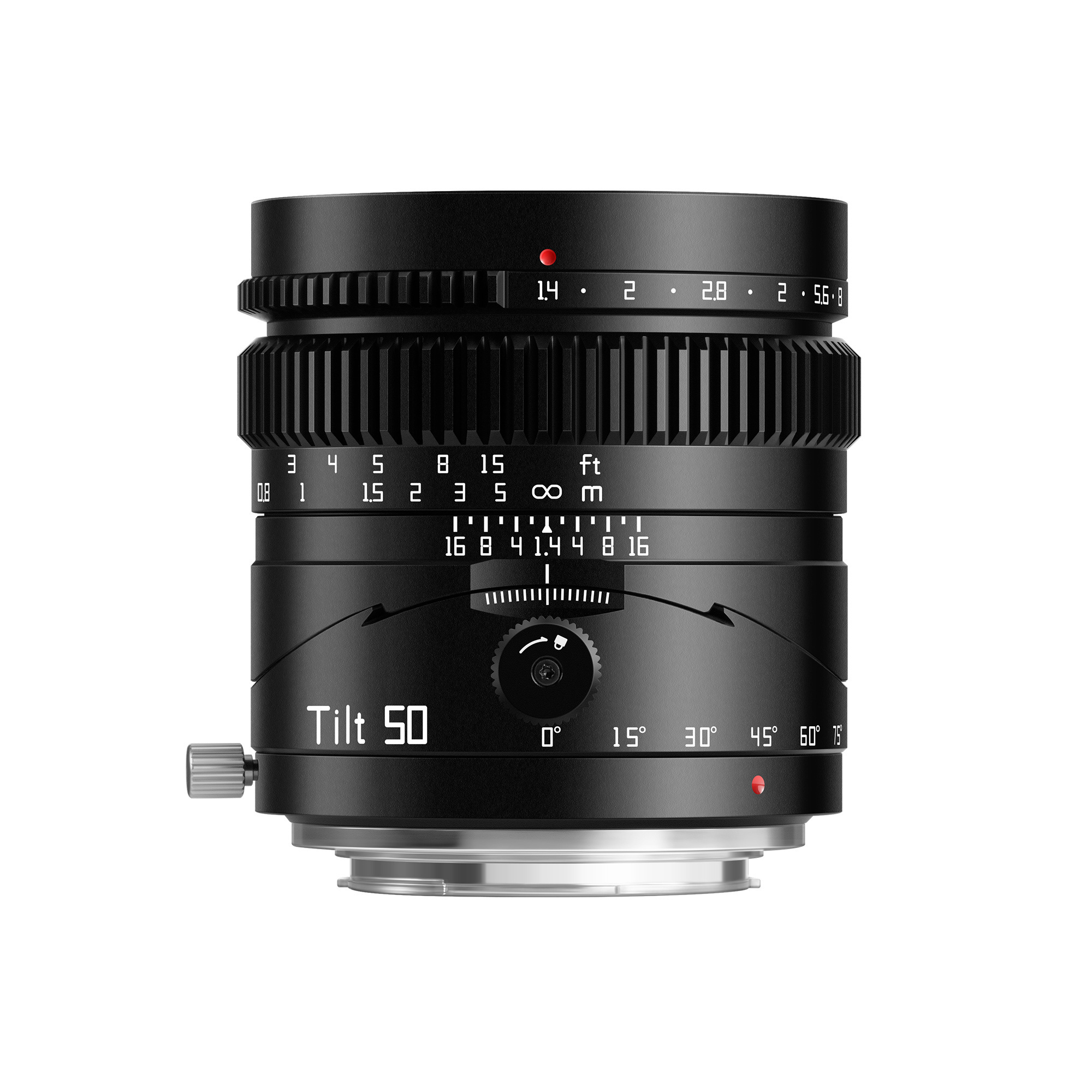

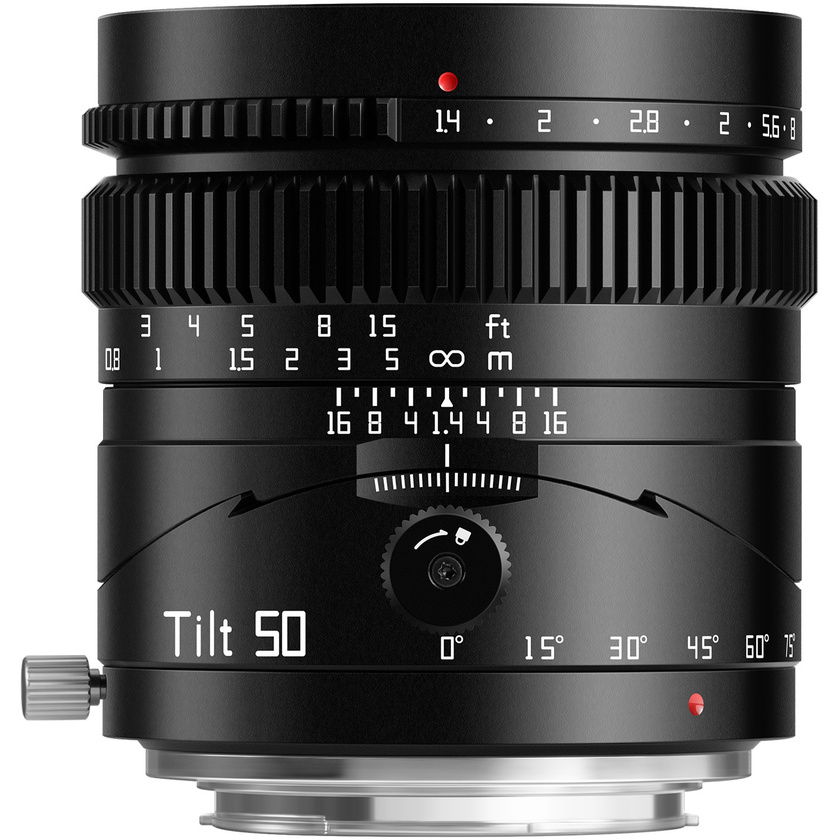

With the TTArtisan 50mm f/1.4 Tilt Lens, the real world is transformed into a lovely miniature landscape, making it feel like you've entered Lilliput in Gulliver's Travels.
Two Results for the Price of One
A tilt lens can be simply understood as: a conventional lens with a large imaging circle combined with a tilt mechanism becomes a tilt lens. Therefore, when the tilt angle is 0 degrees, it is a conventional 50mm f1.4 large aperture lens that can be used for normal portraits, humanity, sketches and other subjects. In addition, the optical performance is also more guaranteed. In the normal state, only the central part of the large image circle is utilised.
Video-Specific Optimisation
Video clips from the perspective of a small world are novel and fun. For more convenient and professional video shooting the lens has been specially optimised; the focus ring and aperture ring are designed to fit most follow focus in accordance with cine lenses.
F1.4 Large Aperture
The large-aperture lens brings valuable light in a decreased ISO for a more transparent image. This beautiful blur provides refreshing visual effects, which together with the tilt function brings the "miniature" effect.
Tilt Mechanism
A mechanism that tilts the front part of the lens left and right. More tilt angles can be achieved with the rotating mechanism. Through this mechanism, the angle between the focal plane and the plane of the CMOS can be changed.
Rotation Mechanism
This is used in conjunction with the tilt mechanism, allowing the focus to be moved. The maximum rotation angle of the rotating mechanism is 90 degrees. The rotating mechanism is marked every 15 degrees from 0 to 90 degrees and has a finite point, which allows for more accurate angle control.
