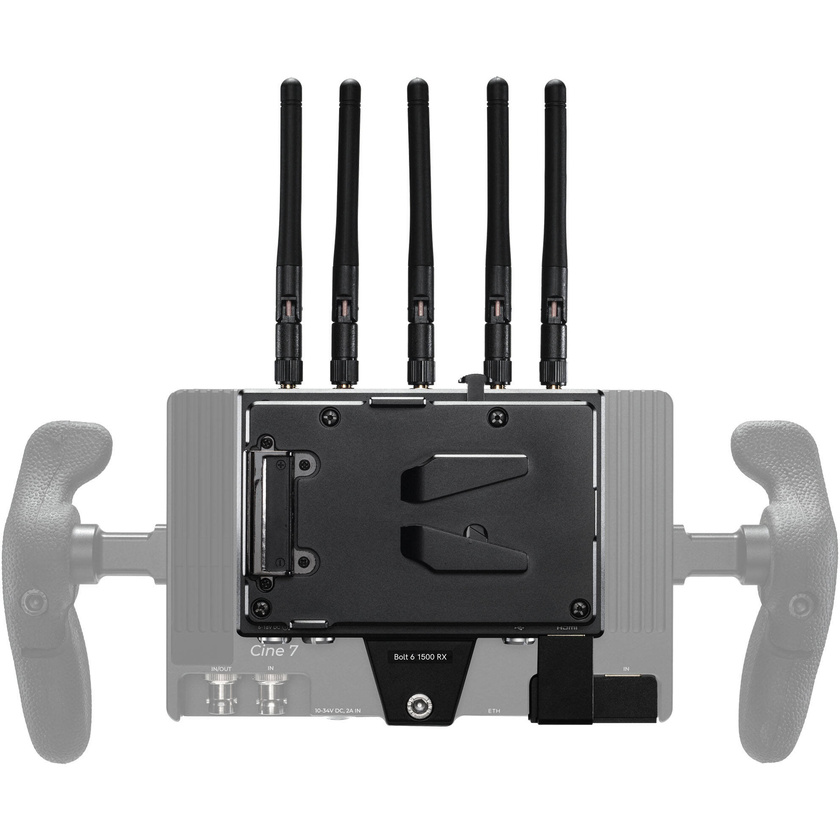

Teradek Bolt 6 RX 1500 Monitor Module for Smart 7 Series (V-Mount)
Features
- Receive HD Video from up to 450m LoS
- Receive up to 4K30 Video, Zero Delay
- V-Mount Battery Plate
- For SmallHD Cine 7/Indie 7/702 Touch
- Output up to 4K30 Video via HDMI
- Compatible with Any Bolt 4K Transmitter
Description
Receive lossless HD video from up to 1500'(1524m) line-of-sight with the Teradek Bolt 6 RX 1500 Monitor Module for Smart 7 Series (V-Mount). The module mounts onto the back of a SmallHD Cine 7, Indie 7, or 702 Touch monitor and can wirelessly receive up to UHD 4K30 HDR video with 10-bit 4:2:2 HDR support and outputs video via one HDMI port. A V-mount battery plate is included to power the receiver using a professional V-mount battery.
The receiver module supports transmissions of up to 4K30 video from any Bolt 6 or Bolt 4K series transmitter, which can simultaneously transmit to up to six receivers. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 system also supports the transmission of timecode and start/stop triggers from the camera.
Though it can receive visually lossless video from any Bolt 4K series transmitter with zero delay using the 5 GHz band, it requires a Bolt 6 device to receive over the 6 GHz band. The module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.
Key Features
- Supports the newly available 6 GHz wireless frequency band
- Cross-compatible with all Bolt 4K and 4K LT 5G series transmitters
- Mounts on the back of a SmallHD Cine 7, Indie 7, or 702 Touch monitor
- Wirelessly receive up to 4K30 video and output up to 4K30 via HDMI port
- V-mount battery plate included
- Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
- Smaller and lighter chassis design than other Bolt receivers
- The receiver features five antennas
- AES-256 encryption and RSA 1024 key pairing support
- Wireless Android/iOS app via Bluetooth features a spectrum analyser and remote configuration
Specifications
| Antenna Ports | 5 x RP-SMA Female |
| Video I/O | 1 x HDMI 1.4b Output |
| Embedded Audio | HDMI: 2-Channel |
| Audio I/O | None |
| Power I/O | 1 x LEMO 2-Pin (18 VDC) Input |
| Other I/O | 2 x LEMO 5-Pin 2.0 Output |
| Encryption | 256-Bit AES |
| Wireless | |
| Wireless Range | 1500' / 457.2 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency | < 0.01 ms |
| RF Power | 21 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
| Format Support | |
| Video Format | HDMI/Wireless (8/10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Audio Format | 2-Channel 24-Bit 48 kHz LPCM Audio |
| Timecode Support | Yes |
| Power | |
| DC Input Power | 6 to 18 VDC |
| Battery Type | 1 x V-Mount |
| Power Consumption | 6 W |
| Environmental | |
| IP Rating | None |
| Operating Temperature | 0 to 40°C |
| General | |
| Material of Construction | Aluminium, Plastic |
| Dimensions | 122 x 94 x 27 mm |
| Weight | 292 g |
In The Box
- Teradek Bolt 6 RX 1500 Monitor Module for Smart 7 Series (V-Mount)
- V-Mount Battery Plate
- Antenna
- HDMI to HDMI Block Adapter
- 1/4"-20 Light Stand Adapter
- Hex Wrench Set
- Screw Socket Head Set
