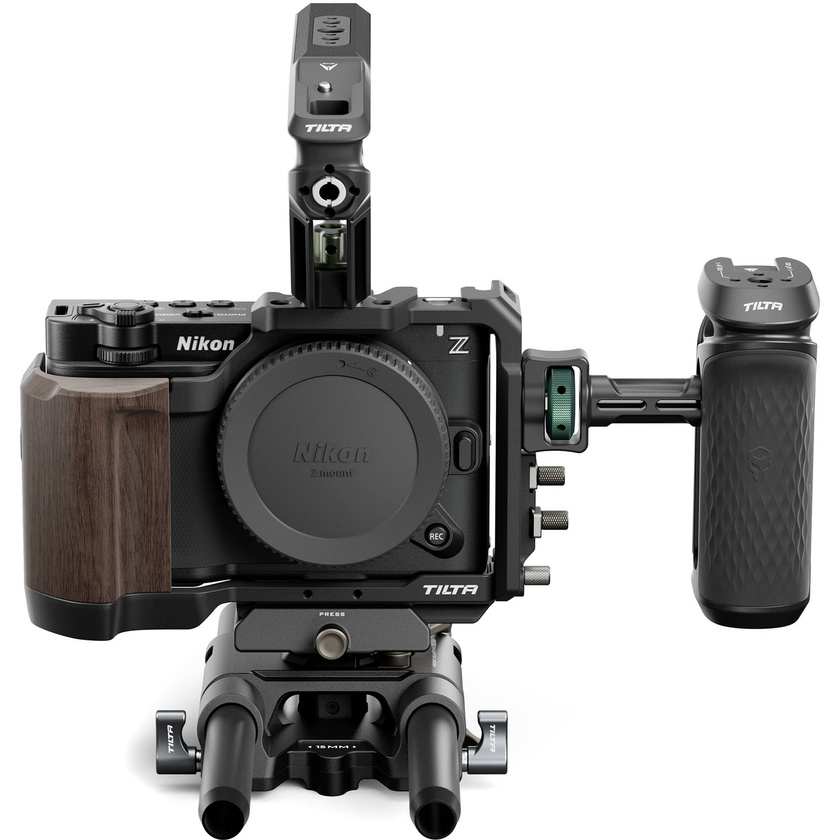

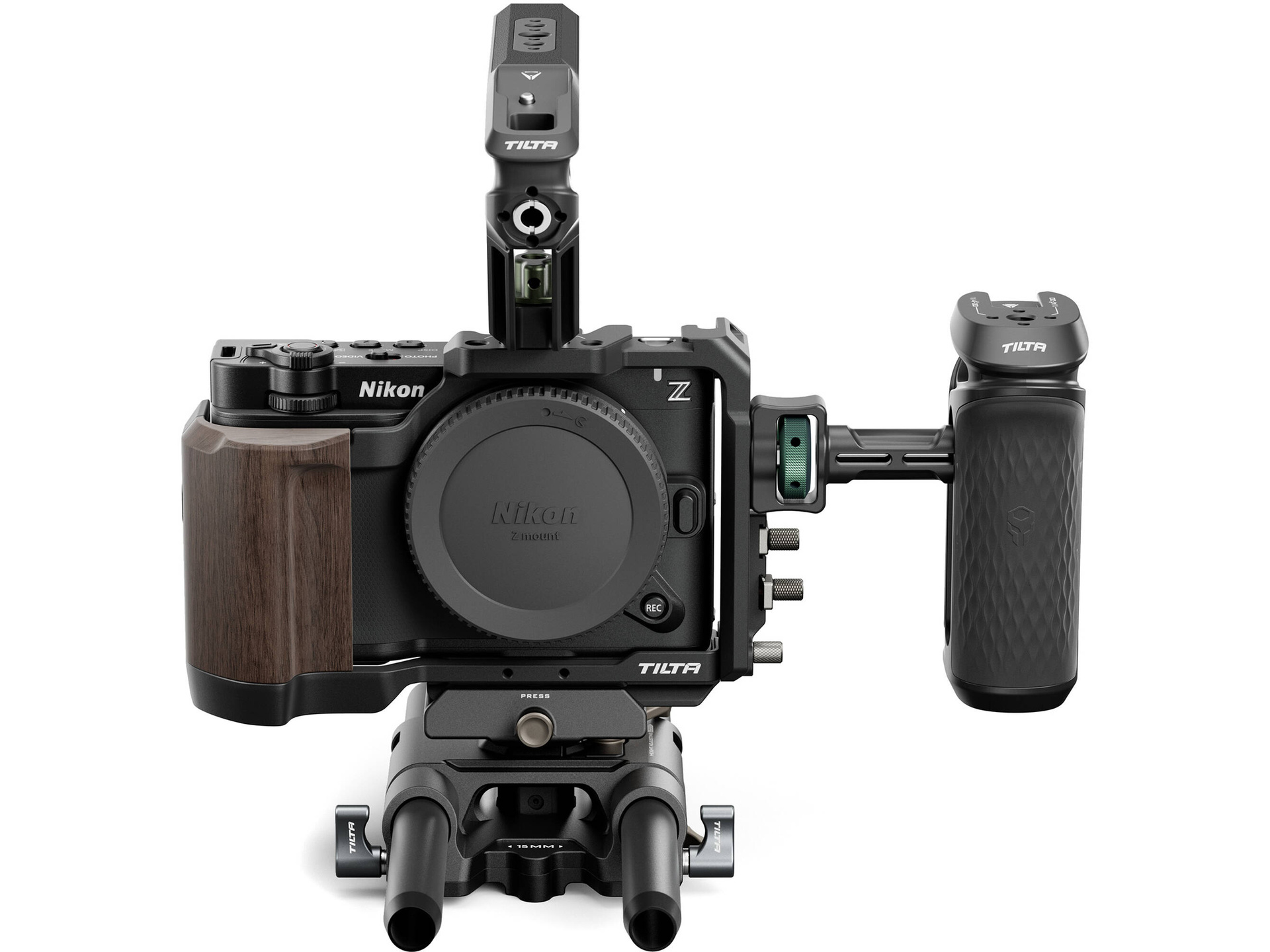

Tilta Camera Cage Pro Kit for Nikon ZR (Black)

Product #124772 | SKU TA-T98-B-B | Tilta
Coming Soon ETA to be confirmed
NEW
Our Price $389
Coming Soon ETA to be confirmed
NEW
- +

Email me when stock arrives

Shipping & Availability
ETA to be confirmed. Deliver to Auckland for $12 Change location
Click & Collect Availability
Wellington Out of stock. ETA to be confirmed
Click & Collect

Features

  • Expand Mounting Abilities of Nikon ZR
  • Modular L-Bracket Baseplate & Top Plate
  • Xeno Top Handle & Side Handle
  • Adjustable LWS Baseplate & Dual 8" Rods
  • Multiple 1/4"-20 & 3/8"-16 Threads
  • Micro-HDMI & USB-C Cable Clamp

Description

Enhance your Nikon ZR cinema camera by adding versatile mounting points and quick release functionality—without sacrificing ease of use—thanks to the Tilta Camera Cage Pro Kit for Nikon ZR (Black). This adaptable cage offers a range of configuration possibilities; use it as a complete enclosure or as a compact L-bracket featuring a comfortable wooden grip and an Arca-type quick release baseplate. No matter your chosen setup, all camera buttons, ports, and the hot shoe remain easily accessible. To ensure maximum creative flexibility, the cage includes anti-twist 1/4"-20 threads along both sides for attaching accessories, in addition to 3/8"-16 threads and a cold shoe receiver on top to expand your mounting options.

Durable and Lightweight Design

Constructed from robust aluminum alloy, the cage maintains a minimal weight—just 4.9 oz when set up as an L-bracket, and 6.7 oz in its full assembly. Securing the cage is straightforward: the bottom plate mounts directly to the camera using a 1/4"-20 screw, while the top plate connects to the bottom at two points and locks into an additional position on the ZR itself for enhanced safety and stability. The front of the baseplate is equipped with two M3 threads designed to support Tilta’s optional ARRI PL-mount lens adapter.

Functional Accessories Included

For added convenience, the kit includes a multifunctional screwdriver that magnetically attaches to the underside of the cage for easy access, a 3/8"-16 to 1/4"-20 thread adapter, and a cable clamp to help protect your USB-C and micro-HDMI connections from accidental disconnection or damage during use.

Specifications

Tilta Full Camera Cage for Nikon ZR
Support Type Cage
Grip Type Single Handgrip
Camera Compatibility Nikon ZR
Mounting
Battery Plate Type No
Accessory Mounting Multiple&nbspAnti-Twist 1/4"-20 Female Thread
Multiple&nbspAnti-Twist 3/8"-16 Female Thread
Camera Mounting 1/4"-20 Male Screw
Tripod Mounting Baseplate
1/4"-20 Female Thread, 3/8"-16 Female Thread, Built-In Arca-Type Plate
Shoe Mounting Top
1x Cold Shoe
Rosettes No
Cable Clamp 1x Combination HDMI & USB-C Clamp
General
Materials Aluminium Alloy, Stainless Steel, Wood
Dimensions 6.5 x 4 x 2.4" / 16.4 x 10.2 x 6 cm
Weight 6.7 oz / 189.5 g (Full Cage)
4.9 oz / 139 g (L-Bracket Configuration)
Tilta Xeno Top Handle with 1/4"-20 Locating Screw (Black)
Item Type 1x Handgrip for Top Side
Rotation No
Main Attachment 1x 1/4"-20 Male Screw (Built-In)
Additional Mounting Multiple 1/4"-20 Female Thread
Multiple 3/8"-16 Female Thread
1x Cold Shoe (Built-In)
Materials Aluminium, Silicone
Dimensions 6.6 x 3.5 x 1" / 167.5 x 88.5 x 25 mm
Weight 6.5 oz / 185 g
Tilta Xeno Side Handle with Anti-Twist 1/4"-20 Mount (Black)
Item Type 1x Handgrip for Left or Right Side
Rotation No
Main Attachment 1x Anti-Twist 1/4"-20 Male Screw (Built-In)
Additional Mounting 3x Anti-Twist 1/4"-20 Female Thread
1x Cold Shoe (Built-In)
Materials Aluminium, Silicone, Steel
Dimensions 4.1 x 3.7 x 2.3" / 105 x 94 x 58.8 mm
Weight 7.2 oz / 205 g
Tilta Height-Adjustable Arca-Type 15mm LWS Baseplate (Black)
Support Type Baseplate
Grip Type No
Camera Compatibility Universal
Mounting
Rod Standard 15 mm LWS / 60 mm Spacing
Camera Mounting Quick Release Plate with 1/4"-20 Male Screw
Tripod Mounting 1/4"-20 Female Thread, Built-In Proprietary Dovetail Plate
Rod Ports 2x 15 mm Rod Port
Shoe Mounting No
General
Load Capacity 10 lb / 4.5 kg
Materials Aluminium Alloy
Dimensions 7.5 x 5.5 x 3.5" / 190.5 x 139.7 x 88.9 mm
Weight 1 lb / 0.5 kg
Tilta Threaded 15mm Rod (Black, 8", Single)
Diameter 15 mm
Length 7.87" / 200 mm
Material Aluminium
Thread Type Female / Female
Number of Rods 1

In The Box

  • Tilta Full Camera Cage for Nikon ZR
    • L-Bracket Baseplate
    • Top Plate
    • Micro-HDMI and USB-C Cable Clamp
    • Magnetic Screwdriver
    • 3/8"-16 to 1/4"-20 Thread Adapter
    • 1/4"-20 Mounting Screw
    • Locating Pin
  • Tilta Xeno Top Handle with 1/4"-20 Locating Screw (Black)
  • Tilta Xeno Side Handle with Anti-Twist 1/4"-20 Mount (Black)
    • Allen Key (3mm)
  • Tilta Height-Adjustable Arca-Type 15mm LWS Baseplate (Black)
    • Arca-Type Quick Release Plate (Black)
    • 1/4"-20 Screw
    • Allen Wrench
  • 2 x Tilta Threaded 15mm Rod (Black, 8", Single)

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Tilta Camera Cage Pro Kit for Nikon ZR (Black)
  • Manufacturer: Tilta
  • Model: Camera Cage for Nikon ZR
  • SKU: TA-T98-B-B
  • RM Product #: 124772
  • Compatible With: Nikon ZR
  • Warranty: 1 year manufacturer warranty for all electronic parts, 30 day warranty for cables.
