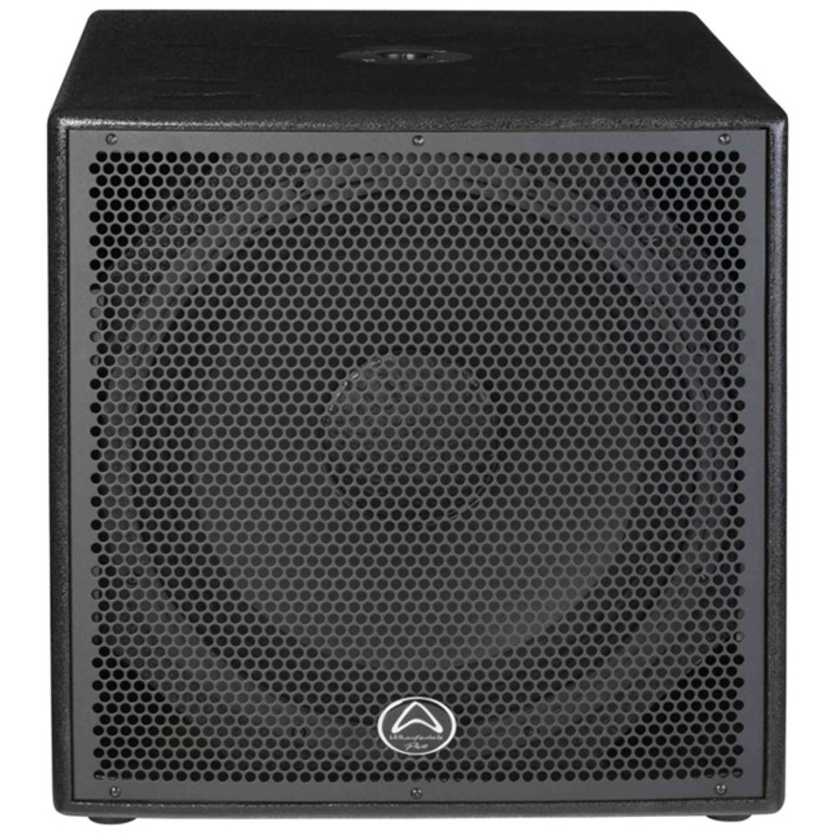

Wharfedale Delta 18" 800w 8 ohm Passive Subwoofer Speaker

Product #120709 | SKU WHA-DELTA-X18B-8 | Wharfedale
Contact us for an ETA what does this mean?
Our Price $669
Contact us for an ETA what does this mean?
- +

Email me when stock arrives


Features

  • 900W RMS
  • 38Hz – 1.5kHz Frequency Response
  • 134dB Max SPL
  • 18” low distortion cast frame woofer
  • 120Hz Crossover frequency

Description

The Wharfedale Delta 18" 800w 8 ohm Passive Subwoofer Speaker features a high output, low distortion 18” cast frame woofer with a 3” voice coil. With comprehensive array inserts marked on the top panel, this subwoofer is perfect for arrayed applications. Whether used in arrays or in fixed installation or touring setups, the Delta 18B delivers exceptional performance. All models in the Delta series now come with Rhino Rock™, a texturized composite finish that combines the look of a painted finish with the durability of a carpet-covered enclosure. Constructed from plywood and featuring a steel pole mount receptacle, the Delta 18B is a versatile and reliable subwoofer for a variety of uses.

Specifications

Power Handling
Continuous 800W
Music 1600W
Peak 3200W
Max SPL (Calculated) dB SPL @ Peak Rated Power 134dB
Bi-Amp Mode Switch Yes
Subwoofer High Pass Output Frequency 120Hz
Subwoofer High Pass Filter Slope 6dB/Oct
LF Size 470mm / 18"
LF Power (Continuous RMS) 800w
LF Sensitivity (Free Field 1W @ 1M) 99dB
LF Voice Coil 101.6mm / 4"
LF Cone Material Paper
LF Voice Coil Material Copper
LF Voice Coil Former Material Fibre Glass
LF Basket Materia l Aluminium
LF Basket Type Die-Cast
LF Magnet Structure Mass 2.69Kg / 5.918lbs
LF Magnet Structure Material Ferrite
Enclosure Material & Thickness 15mm Plywood
Enclosure Finish RHINO ROCK
Grille Material & Finish 1.5mm Steel
Colour Black
Pole Mount 35mm
Handles 2 On Sides
Input Connector Type 2x Speakon
HPF Output Connector Type 1x Speakon
Net Weight 37.3Kg/ 82.06lbs
Gross Weight 43.2Kg/ 95.04lbs
Dimensions (Unpacked)
H 539mm / 21.2"
W FRONT/REAR 539mm / 21.2"
D 650mm / 25.6"
Nominal Impedance (Ohms)
General Parameters
System Type Subwoofer
Frequency Response (Bi-Amp) (+/- 3dB) 38-1.5KHz
Frequency Response (Passive) (+/- 3dB) 38-150Hz
Sensitivity dB (1W @ 1M) 99dB

In The Box

  • Wharfedale Delta 18" 800w 8 ohm Passive Subwoofer Speaker
