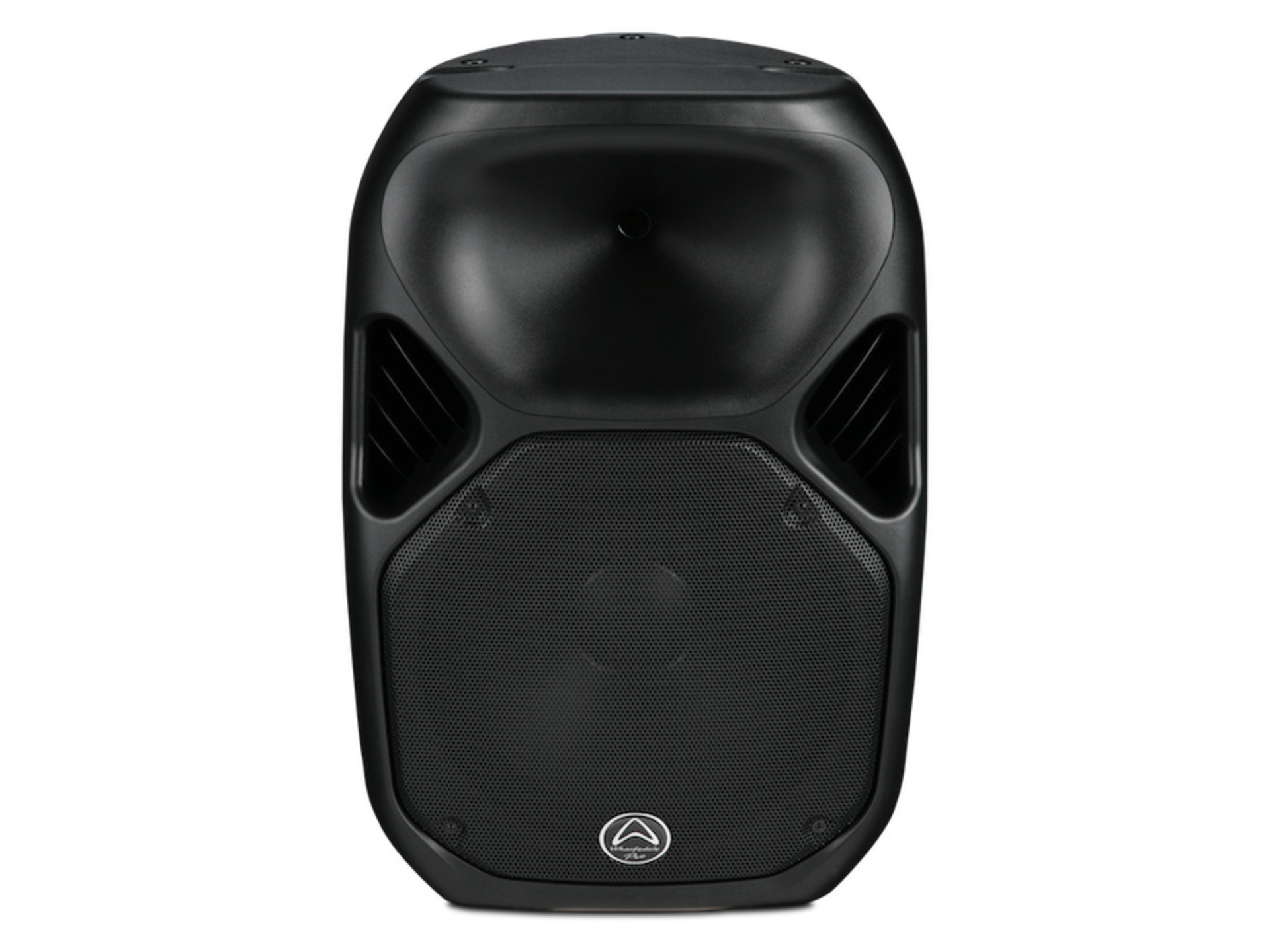

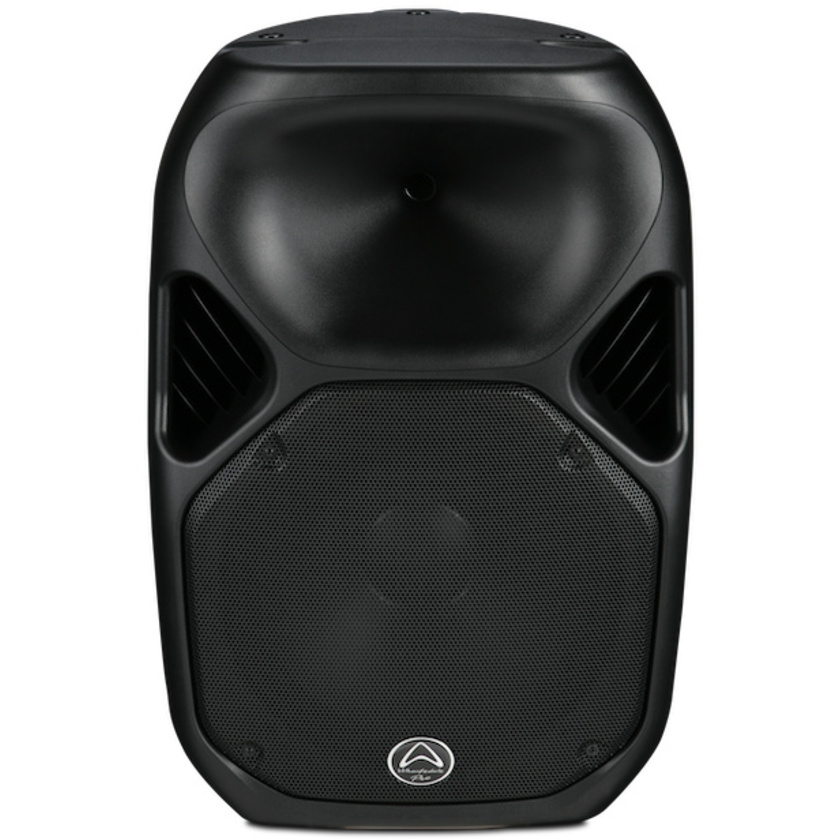

Portable, lightweight and durable, the Wharfedale Titan X15 250W 2-Way Passive Speaker is one of our most versatile loudspeakers. Rated at 1600W peak and with 129dB Max SPL, it’s an ideal solution for small to medium sized venues..
We have also tweaked the laminar rib cabinet structure to improve structural strength for durability and acoustic performance. TITAN X15 raises the bar for portable PA and is built to last.
| System Type | Passive |
| Configuration | 15" 2-way |
| Frequency Response | (+/-3dB) 50Hz-20kHz |
| Frequency Range | (- 10 dB) 40Hz-20kHz |
| Sensitivity | (2.83v/1m) 97dB |
| Calculated Maximum | SPL @1m 129dB |
| System Rated Impedance | 8Ω |
| Low Frequency Transducer | |
| Size | 381mm / 15" |
| Voice-Coil Size | 75mm / 3.0" |
| Rated Impedance | 8Ω |
| LF Power | (re:AES2-2012) 400W |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Voice-Coil Size | 44mm / 1.75" |
| Exit Size | 25mm / 1" |
| Diaphragm Material | Titanium |
| Rated Impedance | 8Ω |
| HF Power (re:AES2-2012) | 40W |
| Nominal Coverage (H x V) | Hybrid Symmetry Horn 100°x80° |
| Power | |
| System Continuous Power | 400w |
| System Programme Power | 800W |
| System Peak Power | 1600w |
| Crossover frequency | 2.7kHz |
| Input Connecto | r 2 x NL4 (speakON compatible) |
| Hardware | 35mm Speaker Pole Insert with lock screw 2 handles on sides M8 x 10 rigging points |
| Enclosure | |
| Enclosure Material | Trapezoidal / Polypropylene |
| Finish | Black |
| Grille Material & Finish | 1.2 steel |
| Dimensions - Unpacked | |
| Height | 728.5mm / 28.7" |
| Width | Front 480.6mm / 18.9" |
| Width | Rear 480.6mm / 18.9" |
| Depth | 395.6mm / 15.6" |
| Weight | |
| Net Weight | 22.0kg / 48.4lbs |
| Gross Weight | 26.8kg / 59.0lbs |
