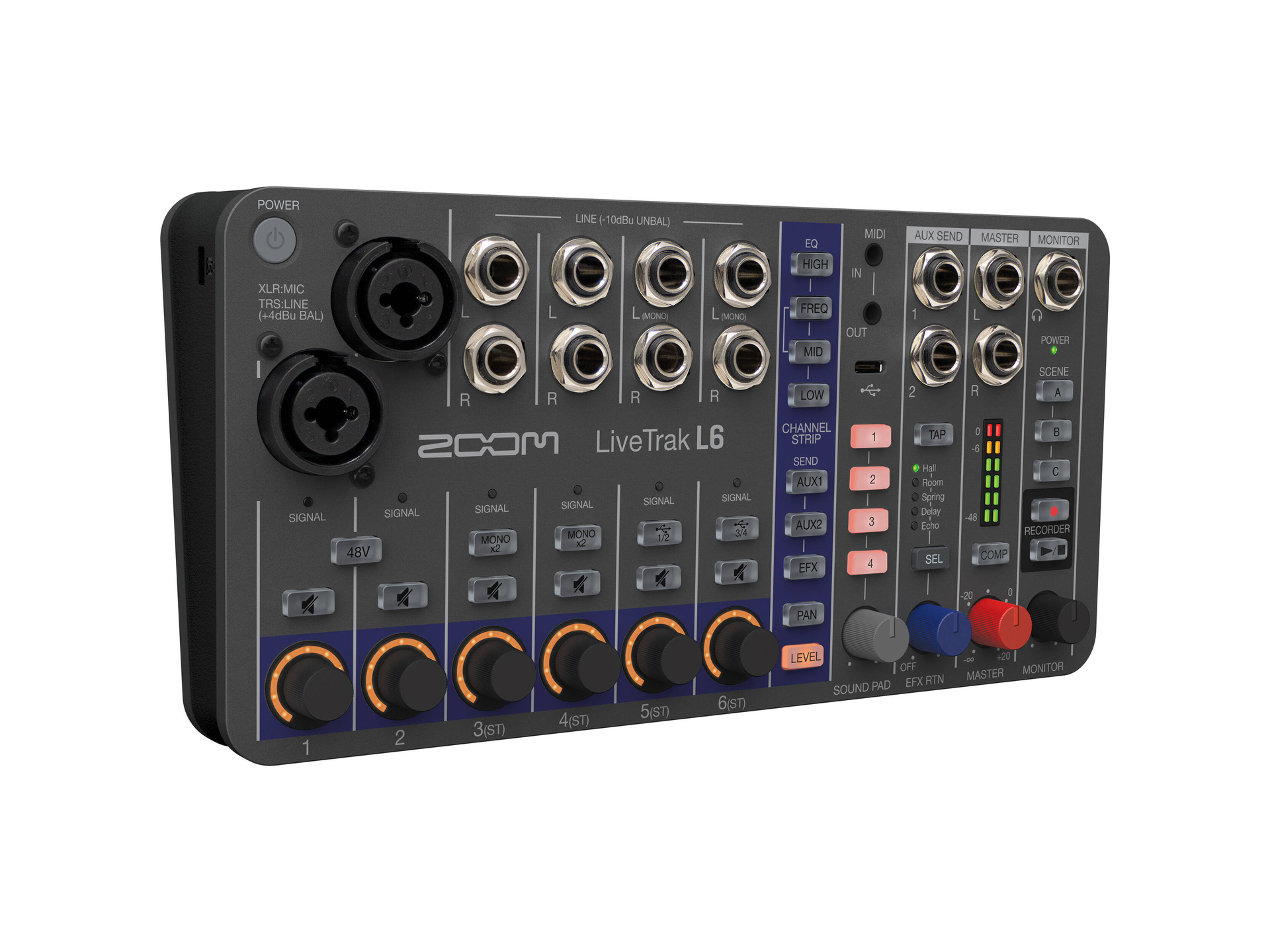

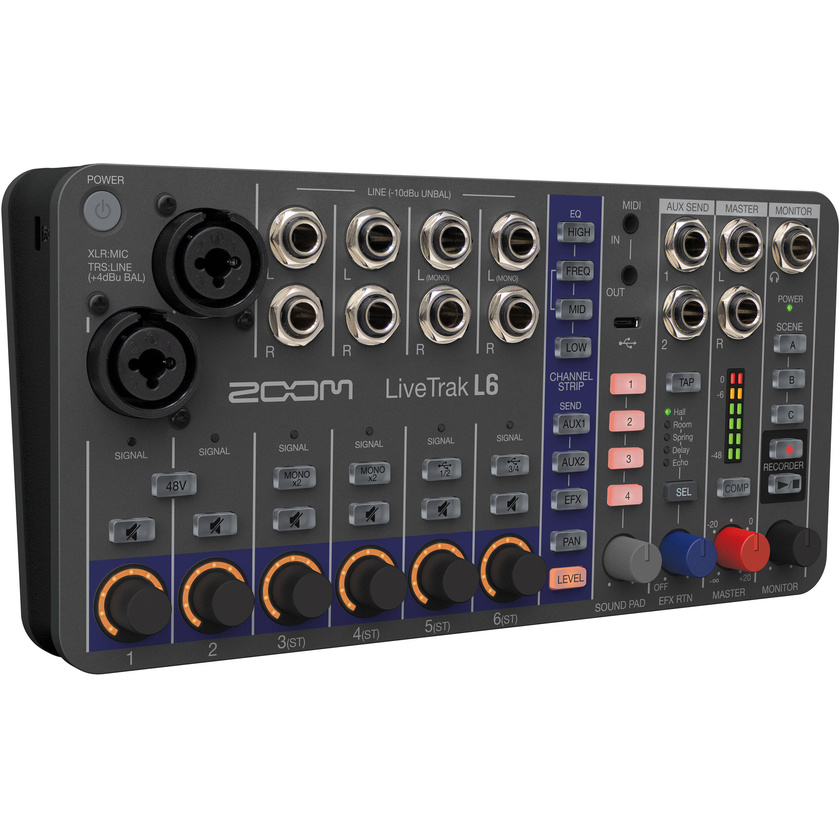

The Zoom LiveTrak L-6 Portable 6-Channel Digital Mixer and Multitrack Recorder is a compact and portable digital mixer and recorder perfect for keyboard and synth setups. With a range of inputs and controls, this battery-powered device offers a user-friendly interface to quickly set up a recording session. Its features include combo XLR-1/4" mic/line inputs, stereo line inputs, sound pads, aux sends, internal send effects, and channel strip controls for easy customization. Whether you prefer recording to an SD card, streaming via USB, or doing both simultaneously, the LiveTrak L-6 allows for up to 6 channels (10 inputs) of simultaneous multitrack recording.
Zoom LiveTrak L-6 Portable 6-Channel Digital Mixer and Multitrack Recorder
In stock
Ships tomorrow
Shipping & Availability
Ships tomorrow.
Deliver to
Auckland
for $8.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
2 - 3 working days
Click & Collect
Features
- Portable Multitracking Mixer/Recorder
- 2 XLR-1/4" Mic/Line Inputs with +48V
- Multitrack Recording via microSD and USB
- 4 Assignable Sound Pads (Sample Player)
- Built-In Effects and 3-Band AEQ
- Headphone/Monitor Output
Description
Specifications
| Key Specs | |
| Max I/O Capacity | 6x Input / 6x Output |
| Number of Analogue Input Channels | 6 (2 Mono / 4 Stereo) |
| Number of Mic Preamps | 2 |
| Number of Analogue Output Channels | 4 |
| Faders & Level Adjustment | 6 Channel Knob |
| Built-In Effects | 5x Stereo Effect (Type Unspecified) |
| Analogue Inputs | 2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input 8x 1/4" TS Balanced/Unbalanced Line Input (4 Stereo Pairs) |
| Analogue Outputs | 2x 1/4" TRS Balanced/Unbalanced Aux Send 2x 1/4" TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair) 1x 1/4" TRS Unbalanced Stereo Headphone Output |
| Digital I/O | No |
| USB I/O | 1x USB-C 2.0 (Host Connection) |
| Wireless | No |
| Rack Mountable | Yes |
| Mixer | |
| Max I/O Capacity | 6x Input / 6x Output |
| Number of Analogue Input Channels | 6 (2 Mono / 4 Stereo) |
| Number of Mic Preamps | 2 |
| Number of Analogue Output Channels | 4 |
| Mix Routing | 2x Mono Aux Send 1x Stereo Main LRC |
| Presets | 3x Scene |
| Faders & Level Adjustment | 6 Channel Knob |
| Metres | Main Metre: 2x 6-Segment LED |
| Signal Processing | |
| AEQ | 3-Band AEQ |
| AEQ Parameters | 1x HF Shelf: ±15 dB at 10 kHz 1x MF Peak: ±15 dB at 100 Hz to 8 kHz 1x LF Shelf: ±15 dB at 100 Hz |
| Graphic AEQ | No |
| Solo/Mute | Mute per Input Channel |
| Built-In Effects | 5x Stereo Effect (Type Unspecified) |
| Audio Delay | No |
| Automatic Mic Mixing | No |
| Digital Audio | |
| Sample Rates | 48 kHz |
| Bit Depth | Up to 32-Bit |
| Performance | |
| Frequency Response | 20 Hz to 20 kHz -1 dB |
| Max Input Level | Combo XLR-1/4" Mic/Line Input: +4 dB (Mic) +24 dB (Line) 1/4" TS Line Input: +9 dB |
| Headphone Output Power | 50 mW per Channel into 63 Ohms (Max) |
| I/O Impedance | XLR Line/Mic Input: 3.8 Kilohms 1/4" TRS Line Input: 39 Kilohms 1/4" TRS Aux/Main Output: 147 Ohms 1/4" TRS Monitor Output: 14.7 Ohms |
| Signal Generator | No |
| Connectivity | |
| Analogue Inputs | 2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input 8x 1/4" TS Balanced/Unbalanced Line Input (4 Stereo Pairs) |
| Analogue Outputs | 2x 1/4" TRS Balanced/Unbalanced Aux Send 2x 1/4" TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair) 1x 1/4" TRS Unbalanced Stereo Headphone Output |
| Phantom Power | +48 V |
| Digital I/O | No |
| MIDI I/O | No |
| USB I/O | 1x USB-C 2.0 (Host Connection) |
| USB I/O Capacity | 12x Input / 4x Output |
| Expansion Ports | No |
| Wireless | No |
| External Display I/O | No |
| Recording | |
| Max Multitrack Recording | 12 Tracks |
| Media Support | SDHC |
| Power | |
| Input Power | 5 VDC |
| Physical | |
| Rack Mountable | Yes |
| Dimensions | 8.8 x 1.8 x 4.5" / 22.3 x 4.6 x 11.4 cm |
| Weight | 1.3 lb / 0.6 kg |
In The Box
- Zoom LiveTrak L-6 Portable 6-Channel Digital Mixer and Multitrack Recorder
- USB Cable
