amaran Ace 25x Bi-Color LED Light Panel All-in-One Creator Kit (Charcoal)

Product #118244 | SKU MP0206000Y | Aputure
Usually ships in 4 - 6 weeks what does this mean?
Our Price $179
Usually ships in 4 - 6 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 4 - 6 weeks. Deliver to Auckland for $8.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 4 - 6 weeks
Click & Collect

Features

  • For Content Creators and Vloggers
  • Output: 1636 Lux at 1m (5600K)
  • 2300 to 6500K CCT
  • 4.6 x 3" Panel; USB-C Rechargeable
  • CRI 95 | TLCI 95 | SSI (D56) 73
  • Onboard and Bluetooth App Control

Description

Bringing exceptional luminosity to portable, camera-mounted lighting setups, the versatile amaran Ace 25x Bi-Color LED Light Panel All-in-One Creator Kit offers convenience and efficiency. In Boost mode, the light delivers a powerful 32W output, producing 1636 lux at a distance of 3.3' and 5600K. At maximum settings, it provides approximately 50 minutes of runtime. Alternatively, the low-power Silent mode offers a remarkable runtime of over four hours and 40 minutes. With a wide color temperature range of 2300-6500K and a superior color accuracy rating of 95 in both CRI and TLCI, the Ace 25x is the perfect light source for creative professionals.

Thanks to the internal rechargeable battery, the light can recover up to 90% of its charge in just 40 minutes using the included USB-C charging cable. A full recharge is achieved in approximately 90 minutes. Conveniently, the light comes with a lock-to-cold shoe adapter, allowing easy mounting on any camera with a shoe mount. Additionally, a 1/4"-20 thread on the bottom of the fixture enables mounting on most light stands. The Ace 25x also features a magnetic front accessory mount, which accepts modifiers such as the included dome diffuser. Moreover, the back magnetic silicone pad enables the light to be securely mounted on any magnetic surface.

Specifications

Key Specs
Item Type 1x LED Light Panel
Included Light Modifier 1x Diffuser
Included Storage Case Yes
Photometrics 2300K:
120 fc / 1301 Lux at 3.3' / 1 m (Unmodified)*
40 fc / 441 Lux at 3.3' / 1 m (with Dome)

Standardised Measurement Supplied by the Manufacturer
3200K:
142 fc / 1527 Lux at 3.3' / 1 m

49 fc / 527 Lux at 3.3' / 1 m (with Dome)

Standardised Measurement Supplied by the Manufacturer
4300K:
145 fc / 1560 Lux at 3.3' / 1 m (Unmodified)

51 fc / 548 Lux at 3.3' / 1 m (with Dome)

Standardised Measurement Supplied by the Manufacturer
5600K:
152 fc / 1635 Lux at 3.3' / 1 m (Unmodified)

52 fc / 559 Lux at 3.3' / 1 m (with Dome)

Standardised Measurement Supplied by the Manufacturer
6500K:
143 fc / 1544 Lux at 3.3' / 1 m (Unmodified)

51 fc / 552 Lux at 3.3' / 1 m (with Dome)

*Standardised Measurement Supplied by the Manufacturer
Colour Temperature 2300 to 6500K
Colour Modes Daylight, Tungsten
Colour Accuracy Standard CRI 95
TLCI 95
SSI 83 at 3200K
SSI 73 at 5600K
TM-30 Rg 102
Dimming Built-In Dimmer (Continuous)
Front Accessory Mount No
Wireless Remote Control Type Bluetooth
Power Source Battery (Built-In)
Battery 1x Rechargeable (Built-In)
 • Up to 280-Minute Runtime at Minimum Brightness
 • Up to 70-Minute Runtime at Medium Brightness
 • Up to 50-Minute Runtime at Maximum Brightness
 • 90-Minute Charge Time via USB-C
Power Consumption 45 W
Fixture Mounting Support Mount
1x 1/4"-20 Female Thread
Light Fixture
Item Type 1x LED Light Panel
Included Light Modifier 1x Diffuser
Included Storage Case Yes
Lumens 3414
Photometrics 2300K:
120 fc / 1301 Lux at 3.3' / 1 m (Unmodified)*
40 fc / 441 Lux at 3.3' / 1 m (with Dome)

Standardised Measurement Supplied by the Manufacturer
3200K:
142 fc / 1527 Lux at 3.3' / 1 m

49 fc / 527 Lux at 3.3' / 1 m (with Dome)

Standardised Measurement Supplied by the Manufacturer
4300K:
145 fc / 1560 Lux at 3.3' / 1 m (Unmodified)

51 fc / 548 Lux at 3.3' / 1 m (with Dome)

Standardised Measurement Supplied by the Manufacturer
5600K:
152 fc / 1635 Lux at 3.3' / 1 m (Unmodified)

52 fc / 559 Lux at 3.3' / 1 m (with Dome)

Standardised Measurement Supplied by the Manufacturer
6500K:
143 fc / 1544 Lux at 3.3' / 1 m (Unmodified)

51 fc / 552 Lux at 3.3' / 1 m (with Dome)

*Standardised Measurement Supplied by the Manufacturer
Colour Temperature 2300 to 6500K
Colour Modes Daylight, Tungsten
Colour Accuracy Standard CRI 95
TLCI 95
SSI 83 at 3200K
SSI 73 at 5600K
TM-30 Rg 102
Dimming Built-In Dimmer (Continuous)
Cooling System Fan
Built-In Flash No
Preprogrammed Effects Yes
Umbrella Mount No
Front Accessory Mount No
Connectivity
Wireless Remote Control Type Bluetooth
Mobile App Compatible Yes: Android & iOS
Wireless Channels No
Wireless Groups No
Wireless Range 262.5' / 80 m
Power & I/O
Power Source Battery (Built-In)
Inputs/Outputs Light Fixture
1x USB-C Power Input
Battery 1x Rechargeable (Built-In)
 • Up to 280-Minute Runtime at Minimum Brightness
 • Up to 70-Minute Runtime at Medium Brightness
 • Up to 50-Minute Runtime at Maximum Brightness
 • 90-Minute Charge Time via USB-C
Battery Charging 1x Charging Cable (Included)
Included Adapter / Cable 1x USB-C to USB-C Cable (1.6' / 50 cm)
Inline Switch No
Power Pass-Thru Yes
Power Consumption 45 W
Mounting
Included Light Stand / Mount 1x Mini-Stand Foot with Cold Shoe
Fixture Mounting Support Mount
1x 1/4"-20 Female Thread
General
Display LCD
Environmental Resistance No
Operating Conditions 14 to 104°F / -10 to 40°C
Storage Conditions -4 to 176°F / -20 to 80°C
Dimensions 4.6 x 3 x 1.3" / 11.8 x 7.7 x 3.3 cm (Fixture)
Weight 0.7 lb / 325.5 g (Fixture)
0.8 lb / 385.5 g (Fixture with Mount/Reflector)
Mounting
Mounting Accessory Mount: with 1/4"-20 Female Thread
General
Dimensions 1.77 to 1.57 x 0.75" / 4.5 to 3.99 x 1.91 cm
Weight 1 oz / 27.5 g
General
Item Type 1 x Honeycomb Grid
Grid Angle 30°
Dimensions 4.61 x 3.03 x 0.24" / 11.71 x 7.7 x 0.61 cm
Weight 0.6 oz / 18 g
Key Specs
Stand Type 1 x Tabletop Stand
Maximum Working Height 12" / 30.5 cm
Minimum Working Height 6.2" / 15.8 cm
Air Cushioned No
Levelling Leg No
Weight 0.33 lb / 150 g
Maximum Working Height 12" / 30.5 cm
Minimum Working Height 6.2" / 15.8 cm
Closed Length 6.2" / 15.7 cm
Features
Air Cushioned No
Detachable Base No
Levelling Leg No
Reverse Legs No
General
Leg Shape Rectangular
Base Shape Square
Finish Black
Weight 0.33 lb / 150 g

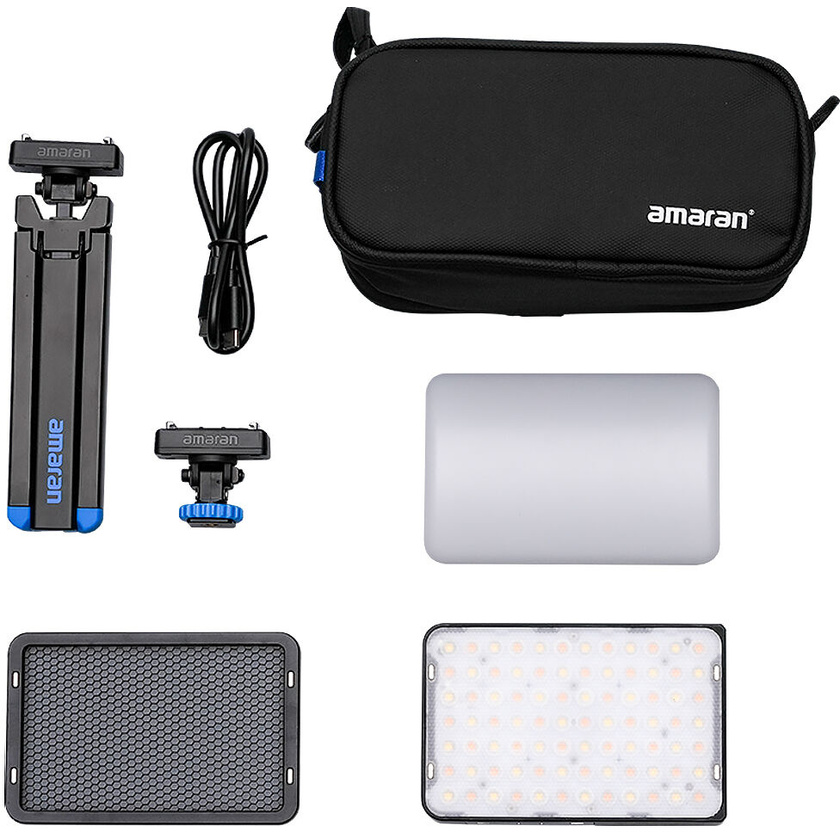

In The Box

  • amaran Ace 25x Bi-Colour LED Light Panel (Charcoal)
  • amaran Ace Lock to Cold Shoe Adapter
  • amaran Ace 30° Light Control Grid
  • amaran Ace Lock Mini Tripod
  • Dome Diffuser
  • USB-C Charging Cable (1.6')
  • Hex Key (5mm)
  • Carrying Bag

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: amaran Ace 25x Bi-Color LED Light Panel All-in-One Creator Kit (Charcoal)
  • Manufacturer: Aputure
  • Model: MP0206000Y
  • SKU: MP0206000Y
  • RM Product #: 118244
  • Colour Temperature: 2300 - 6500K
  • Warranty: 1 year manufacturer warranty
