amaran Ace 25x Bi-Color LED Light Panel All-in-One Creator Kit (White)

Product #118243 | SKU MP02060006 | Aputure
| Write a review
Usually ships in 10 - 14 weeks what does this mean?
amaran Ace 25x Bi-Color LED Light Panel All-in-One Creator Kit (White)
$189
Usually ships in 10 - 14 weeks what does this mean?
- +
Delivery Options
Calculate Shipping
FREE Pickup
View stock availability
Afterpay + More
Email me when stock arrives
Have a question about this product? Send us a message
Request price match
View our returns policy

Features

  • For Content Creators and Vloggers
  • Output: 1636 Lux at 1m (5600K)
  • 2300 to 6500K CCT
  • 4.6 x 3" Panel; USB-C Rechargeable
  • CRI 95 | TLCI 95 | SSI (D56) 73
  • Onboard and Bluetooth App Control

Description

Bringing superior brightness to portable camera-mounted light setups, the amaran Ace 25x Bi-Color LED Light Panel is a versatile and convenient light source for creators. With a 32W output, the light delivers a powerful 1636 lux at 3.3' and 5600K when in Boost mode. At this maximum setting, the light provides approximately 50 minutes of runtime. In Silent mode, the light can run for over four hours and 40 minutes on low power. The Ace 25x offers a wide colour temperature range of 2300-6500K and achieves a high colour accuracy of 95 in CRI and TLCI ratings.

The light features an internal rechargeable battery that can recoup 90% of its charge in just 40 minutes using the included USB-C charging cable. A full recharge can be achieved in approximately 90 minutes. Mounting the light is effortless with the included lock-to-cold shoe adapter, making it compatible with any camera with a shoe mount. Additionally, the fixture can be mounted on most light stands with the 1/4"-20 thread on the bottom. The Ace 25x also offers versatility with its magnetic front accessory mount, allowing for the attachment of modifiers like the included dome diffuser. A back magnetic silicone pad enables the light to be mounted on any magnetic surface

Specifications
Key Specs
Item Type 1x LED Light Panel
Included Light Modifier 1x Diffuser
Included Storage Case Yes
Photometrics 2300K:
120 fc / 1301 Lux at 3.3' / 1 m (Unmodified)*
40 fc / 441 Lux at 3.3' / 1 m (with Dome)

Standardised Measurement Supplied by the Manufacturer
3200K:
142 fc / 1527 Lux at 3.3' / 1 m
49 fc / 527 Lux at 3.3' / 1 m (with Dome)

Standardised Measurement Supplied by the Manufacturer
4300K:
145 fc / 1560 Lux at 3.3' / 1 m (Unmodified)
51 fc / 548 Lux at 3.3' / 1 m (with Dome)

Standardised Measurement Supplied by the Manufacturer
5600K:
152 fc / 1635 Lux at 3.3' / 1 m (Unmodified)
52 fc / 559 Lux at 3.3' / 1 m (with Dome)

Standardised Measurement Supplied by the Manufacturer
6500K:
143 fc / 1544 Lux at 3.3' / 1 m (Unmodified)
51 fc / 552 Lux at 3.3' / 1 m (with Dome)

*Standardised Measurement Supplied by the Manufacturer
Colour Temperature 2300 to 6500K
Colour Modes Daylight, Tungsten
Colour Accuracy Standard CRI 95
TLCI 95
SSI 83 at 3200K
SSI 73 at 5600K
TM-30 Rg 102
Dimming Built-In Dimmer (Continuous)
Front Accessory Mount No
Wireless Remote Control Type Bluetooth
Power Source Battery (Built-In)
Battery 1x Rechargeable (Built-In)
 • Up to 280-Minute Runtime at Minimum Brightness
 • Up to 70-Minute Runtime at Medium Brightness
 • Up to 50-Minute Runtime at Maximum Brightness
 • 90-Minute Charge Time via USB-C
Power Consumption 45 W
Fixture Mounting Support Mount
1x 1/4"-20 Female Thread
Light Fixture
Item Type 1x LED Light Panel
Included Light Modifier 1x Diffuser
Included Storage Case Yes
Lumens 3414
Photometrics 2300K:
120 fc / 1301 Lux at 3.3' / 1 m (Unmodified)*
40 fc / 441 Lux at 3.3' / 1 m (with Dome)

Standardised Measurement Supplied by the Manufacturer
3200K:
142 fc / 1527 Lux at 3.3' / 1 m
49 fc / 527 Lux at 3.3' / 1 m (with Dome)

Standardised Measurement Supplied by the Manufacturer
4300K:
145 fc / 1560 Lux at 3.3' / 1 m (Unmodified)
51 fc / 548 Lux at 3.3' / 1 m (with Dome)

Standardised Measurement Supplied by the Manufacturer
5600K:
152 fc / 1635 Lux at 3.3' / 1 m (Unmodified)
52 fc / 559 Lux at 3.3' / 1 m (with Dome)

Standardised Measurement Supplied by the Manufacturer
6500K:
143 fc / 1544 Lux at 3.3' / 1 m (Unmodified)
51 fc / 552 Lux at 3.3' / 1 m (with Dome)

*Standardised Measurement Supplied by the Manufacturer
Colour Temperature 2300 to 6500K
Colour Modes Daylight, Tungsten
Colour Accuracy Standard CRI 95
TLCI 95
SSI 83 at 3200K
SSI 73 at 5600K
TM-30 Rg 102
Dimming Built-In Dimmer (Continuous)
Cooling System Fan
Built-In Flash No
Preprogrammed Effects Yes
Umbrella Mount No
Front Accessory Mount No
Connectivity
Wireless Remote Control Type Bluetooth
Mobile App Compatible Yes: Android & iOS
Wireless Channels No
Wireless Groups No
Wireless Range 262.5' / 80 m
Power & I/O
Power Source Battery (Built-In)
Inputs/Outputs Light Fixture
1x USB-C Power Input
Battery 1x Rechargeable (Built-In)
 • Up to 280-Minute Runtime at Minimum Brightness
 • Up to 70-Minute Runtime at Medium Brightness
 • Up to 50-Minute Runtime at Maximum Brightness
 • 90-Minute Charge Time via USB-C
Battery Charging 1x Charging Cable (Included)
Included Adapter / Cable 1x USB-C to USB-C Cable (1.6' / 50 cm)
Inline Switch No
Power Pass-Thru Yes
Power Consumption 45 W
Mounting
Included Light Stand / Mount 1x Mini-Stand Foot with Cold Shoe
Fixture Mounting Support Mount
1x 1/4"-20 Female Thread
General
Display LCD
Environmental Resistance No
Operating Conditions 14 to 104°F / -10 to 40°C
Storage Conditions -4 to 176°F / -20 to 80°C
Dimensions 4.6 x 3 x 1.3" / 11.8 x 7.7 x 3.3 cm (Fixture)
Weight 0.7 lb / 325.5 g (Fixture)
0.8 lb / 385.5 g (Fixture with Mount/Reflector)
Mounting
Mounting Accessory Mount: with 1/4"-20 Female Thread
General
Dimensions 1.77 to 1.57 x 0.75" / 4.5 to 3.99 x 1.91 cm
Weight 1 oz / 27.5 g
General
Item Type 1 x Honeycomb Grid
Grid Angle 30°
Dimensions 4.61 x 3.03 x 0.24" / 11.71 x 7.7 x 0.61 cm
Weight 0.6 oz / 18 g
Key Specs
Stand Type 1 x Tabletop Stand
Maximum Working Height 12" / 30.5 cm
Minimum Working Height 6.2" / 15.8 cm
Air Cushioned No
Levelling Leg No
Weight 0.33 lb / 150 g
Maximum Working Height 12" / 30.5 cm
Minimum Working Height 6.2" / 15.8 cm
Closed Length 6.2" / 15.7 cm
Features
Air Cushioned No
Detachable Base No
Levelling Leg No
Reverse Legs No
General
Leg Shape Rectangular
Base Shape Square
Finish Black
Weight 0.33 lb / 150 g

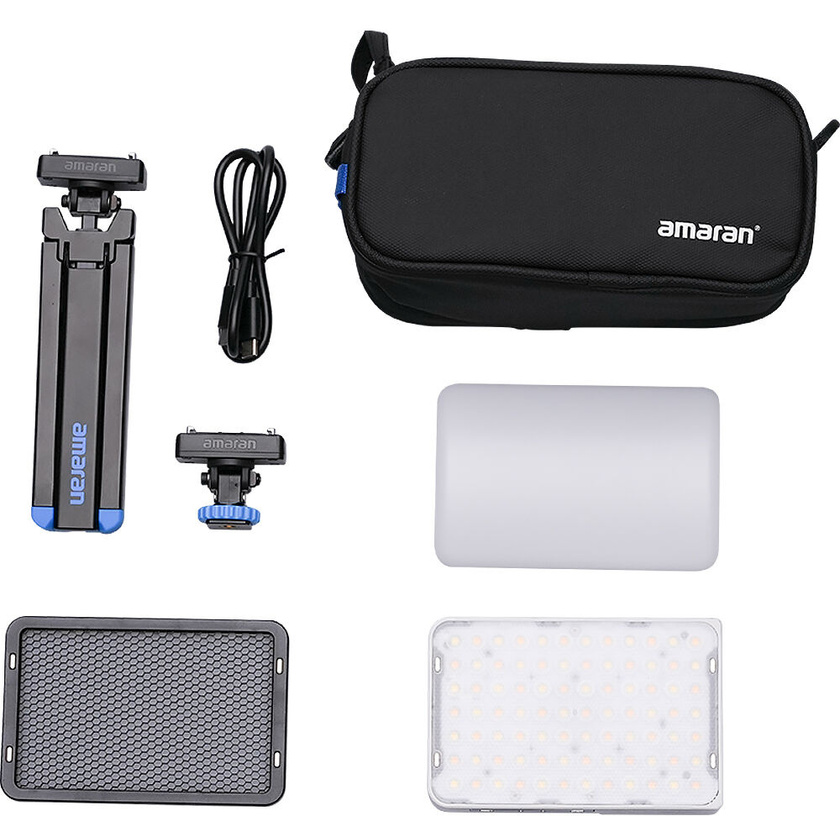

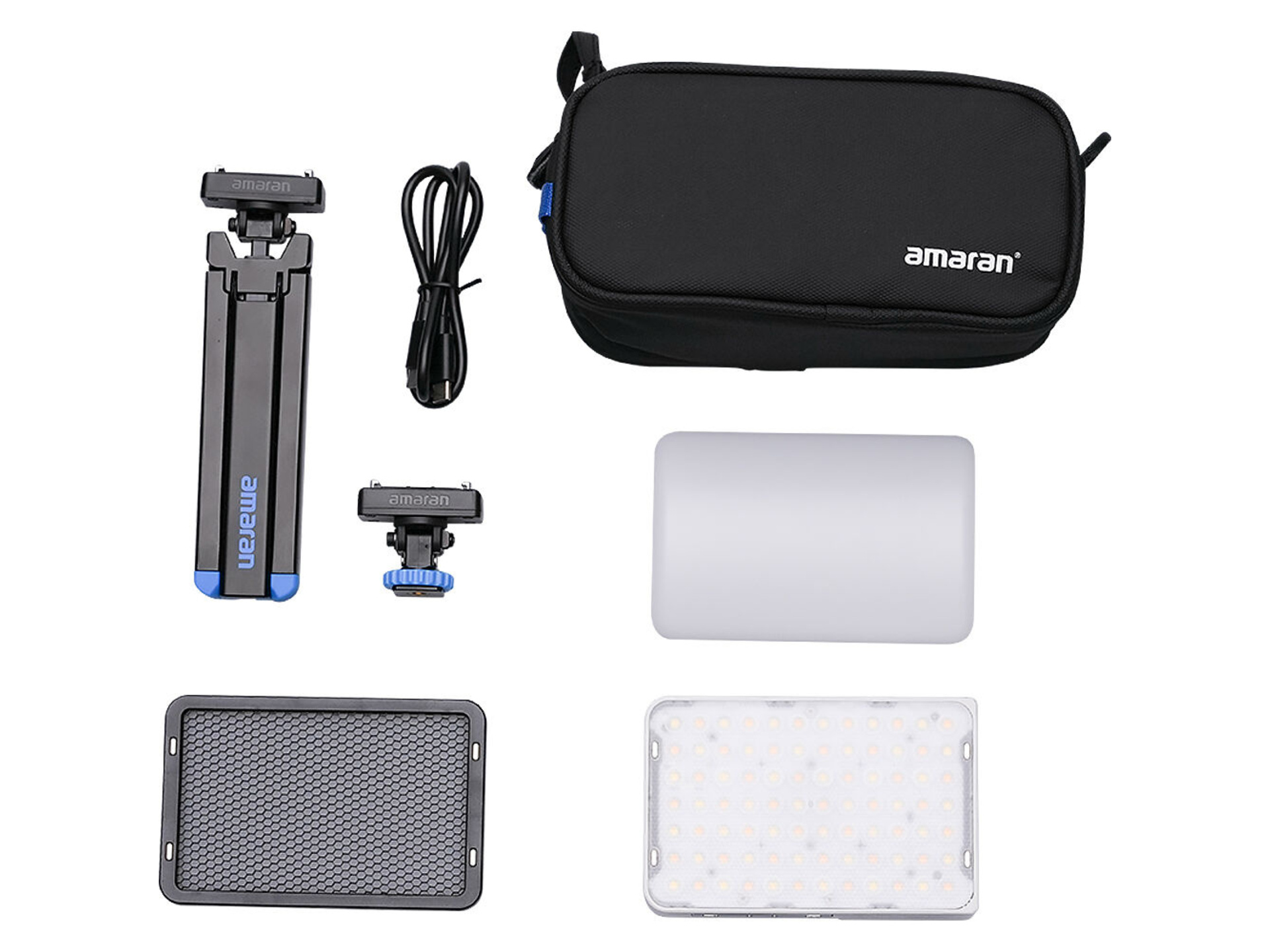

In The Box

  • amaran Ace 25x Bi-Colour LED Light Panel (White)
  • amaran Ace Lock to Cold Shoe Adapter
  • amaran Ace 30° Light Control Grid
  • amaran Ace Lock Mini Tripod
  • Dome Diffuser
  • USB-C Charging Cable (1.6')
  • Hex Key (5mm)
  • Carrying Bag
