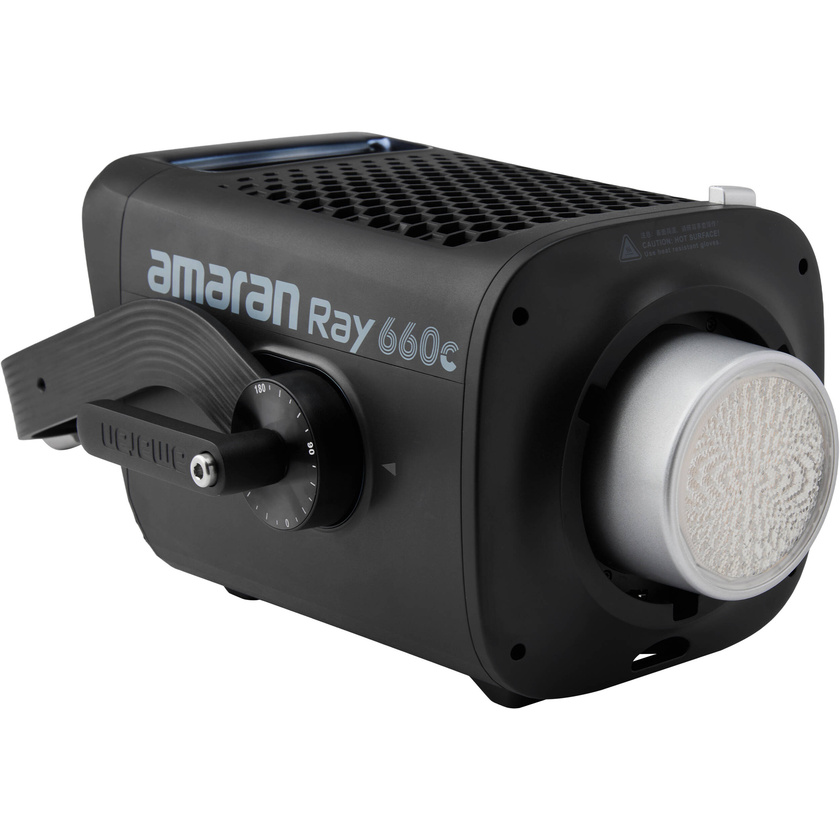

amaran Ray 660c RGB LED Monolight

Product #124021 | SKU MP00000197 | Aputure
Pre-Order ETA to be confirmed what does this mean?
PRE-ORDER
Our Price $1,379
A deposit of $165.00 is required for this pre-order.
Pre-Order ETA to be confirmed what does this mean?
PRE-ORDER
- +

Email me when stock arrives

Shipping & Availability
ETA to be confirmed. Deliver to Auckland for $17 Change location
Click & Collect Availability
Wellington Out of stock. ETA to be confirmed
Click & Collect

Features

  • For Film, Broadcast & Video Production
  • Output: 38,500 Lux at 3.3' (Bare)
  • 1800-20,000K CCT+; RGB Colour Control
  • AC Power & Optional USB-C DMX Control
  • Onboard & App Control; FlowTurn & NFC
  • CRI & TLCI 95 | SSI 80/87 | TM-30 94/100

Description

The full-colour amaran Ray 660c RGB LED Monolight’s most powerful COB lighting solution, delivering an impressive 660W of output alongside advanced OmniColor technology and a host of contemporary features. Designed for versatility, the Ray 660c is equally adept at illuminating subjects or providing extensive coverage in large studio spaces, all within a streamlined, monolight-style form factor.

Advanced Control Options

Take advantage of intuitive control options, including an onboard FlowTurn knob and convenient NFC setup for quick adjustments, as well as app-based management for seamless wireless operation. For more comprehensive setups, DMX control is available through USB-C with the addition of an optional adapter, further expanding your creative possibilities.

Exceptional Colour Capabilities

Select from an extended colour temperature range of 1800–20,000K in CCT+ mode, ensuring high colour accuracy for any scene. Unlock full creative freedom with 360° colour manipulation in both HSI and RGB modes, giving you the tools needed for nuanced lighting design.

Built for Demanding Environments

Engineered for resilience, the Ray 660c boasts IP54-rated resistance to dust and water splashes, making it suitable for use in challenging environments where reliability is critical.

Flexible Mounting and Accessories

With flexibility at the forefront, the unit features a practical yoke and full Bowens mount compatibility, enabling easy attachment of a range of modifiers and accessories. Each package includes a reflector, a single power cable, and a carrying case, ensuring quick setup, secure storage, and effortless mobility between shoots.

Specifications

Light Fixture
Item Type 1x COB LED Monolight
Included Light Modifier 1x Reflector
Included Storage Case Yes
Lumens 45,904
Photometrics 70° at 3200K:
3372 fc / 36,300 Lux at 3.3' / 1 m (Unmodified)
392 fc / 4220 Lux at 9.8' / 3 m (Unmodified)
45° at 3200K:
8073 fc / 86,900 Lux at 3.3' / 1 m (with Reflector)
805 fc / 8670 Lux at 9.8' / 3 m (with Reflector)
70° at 5600K:
3520 fc / 37,900 Lux at 3.3' / 1 m (Unmodified)
410 fc / 4420 Lux at 9.8' / 3 m (Unmodified)
45° at 5600K:
8398 fc / 90,400 Lux at 3.3' / 1 m (with Reflector)
837 fc / 9010 Lux at 9.8' / 3 m (with Reflector)
Colour Temperature 1800 to 20,000K
2300 to 10,000K
Colour Modes RGB, Daylight, Tungsten
Colour Accuracy Standard CRI 95
TLCI 95
TM-30 Rf 94
TM-30 Rg 100
SSI 80 at 5600K
SSI 87 at 3200K
Dimming App-Controlled / Built-In Dimmer / DMX
 • 0 to 100%
Cooling System Fan
Beam Angle 70° Unmodified
45° with Included Reflector
Built-In Flash No
Preprogrammed Effects Yes
Umbrella Mount No
Front Accessory Mount Bowens S
Connectivity
Wireless Remote Control Type Bluetooth
Mobile App Compatible Yes: Android & iOS
App Name: amaran
Functionality: Firmware Update, Remote Control
Wireless Range 262.5' / 80 m (Bluetooth)
Power & I/O
Power Source AC Power (Cable Included)
Inputs/Outputs 1x Unspecified AC Power Input (100 to 240 VAC, 50 / 60 Hz)
1x USB-C DMX/Firmware Input
*Adapter Required (Not Included)
Input Power 100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable 1x USA Type-A/B Plug to Unspecified Cable (16.4' / 5 m)
Inline Switch No
Power Pass-Thru No
Power Consumption 750 W (Maximum)
Mounting
Yoke Type Manually-Operated Yoke
Fixture Mounting 1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
General
Display LCD
Environmental Resistance Dust/Water-Resistant (IP54)
Operating Conditions 14 to 104°F / -10 to 40°C
Storage Conditions -4 to 176°F / -20 to 80°C
Dimensions 11.79 x 7.31 x 7.05" / 29.95 x 18.57 x 17.91 cm (Fixture)
Weight 12.57 lb / 5.7 kg (Fixture)

In The Box

  • amaran Ray 660c RGB LED Monolight
  • Reflector
  • AC Power Cable (16.4')
  • Blue Bowens Mount Protection Cover
  • Carry Bag

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: amaran Ray 660c RGB LED Monolight
  • Manufacturer: Aputure
  • Model: Ray660C
  • SKU: MP00000197
  • RM Product #: 124021
  • Colour Temperature: 1800 - 20,000K
  • Colour Temperature: 2300 - 10,000K
  • Warranty: 1 year manufacturer warranty
