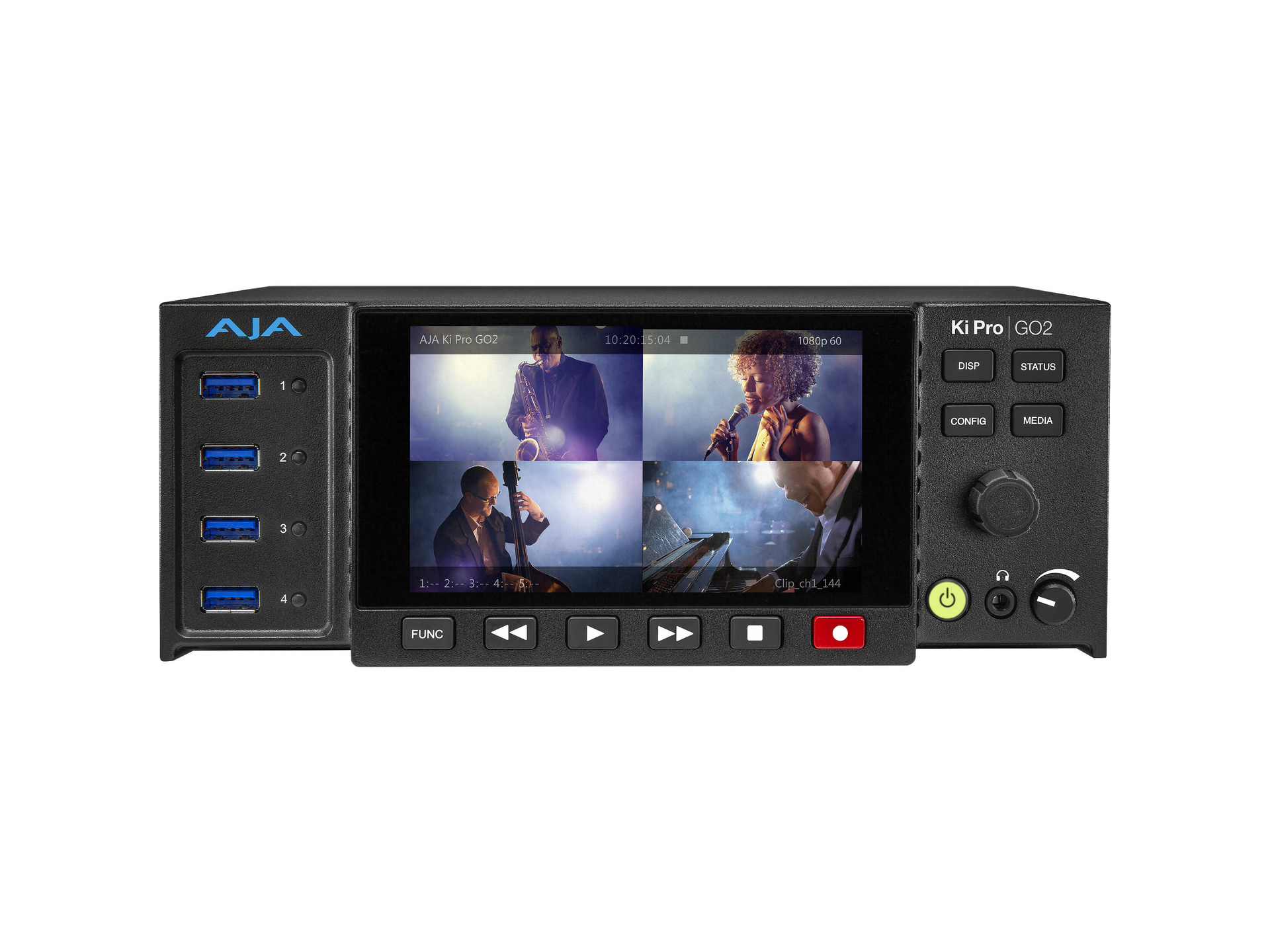

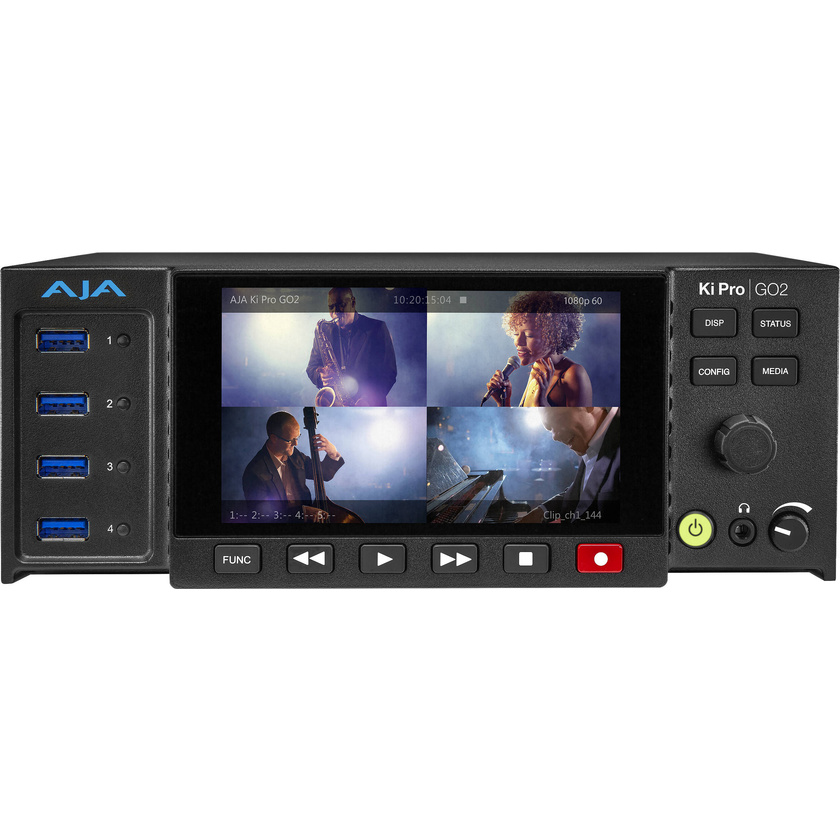

AJA Ki Pro GO2 Multichannel H.264/H.265 Recorder/Player

Product #116411 | SKU KI-PRO-GO2 | AJA
Usually ships in 3 - 4 weeks what does this mean?
Our Price $10,899
Usually ships in 3 - 4 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 3 - 4 weeks. Deliver to Auckland for $15 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 4 weeks
Click & Collect

Features

  • 4-Channel Simultaneous HD/SD Recording
  • Redundant Recordings per Channel (USB)
  • 4 x 3G-SDI and 4 x HDMI 1080p60 Inputs
  • 15 Mb/s for H.265 | 25 Mb/s for H.264
  • Hi-Res LCD with Onscreen Intuitive UI
  • Built-In Frame Syncs

Description

The AJA Ki Pro GO2 Multichannel H.264/H.265 Recorder/Player is a compact and versatile portable recorder that supports H.265 (HEVC) and H.264 (AVC) codecs. With the ability to simultaneously record up to four HD or SD channels, it provides flexibility for capturing multiple video sources. Recordings can be made onto USB drives or network storage, with options available for redundant recording to enhance data safety.

The Ki Pro GO2 is equipped with four 3G-SDI and four HDMI digital video inputs, allowing for convenient connectivity and channel assignments with various video sources, including routers, professional and prosumer cameras, and DSLRs. The unit's input frame synchronisers eliminate the need for genlocked video sources, and its high-quality deinterlacers enable progressive recordings from interlaced inputs.

Each recording channel can be assigned high-quality 2-channel embedded or balanced XLR analogue audio. The Multi-Channel Matrix Monitoring feature allows multiple video channels to be viewed on a single HDMI or SDI display. Furthermore, the Enhanced Super Out feature adds useful overlays, such as timecode, media status, and audio metres, on the SDI and HDMI monitor outputs.

Designed with portability or rack mounting in mind, the Ki Pro GO2 has a compact half-rack width and 2 RU height dimensions. This makes it suitable for various production environments, ranging from large-scale concert tours to local houses of worship.

Specifications

Key Specs
Video I/O 4x BNC (3G-SDI) Input
5x BNC (3G-SDI) Output
4x HDMI 1.4a Input
1x HDMI 1.4a Output
Media/Memory Card Slot No
Video Format HDMI (8/10-Bit 4:4:4 RGB)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 30/29.97/25/24/23.98
720p: 60/59.94/50
576i: 50
480i: 59.94
Phantom Power +48 V
Built-In Battery No
Battery Type No
Power Consumption 55 W (Typical)
Inputs / Outputs
Video I/O 4x BNC (3G-SDI) Input
5x BNC (3G-SDI) Output
4x HDMI 1.4a Input
1x HDMI 1.4a Output
Embedded Audio HDMI: 2-Channel
SDI: 2-Channel
Audio I/O 2x XLR Input
2x RCA Monitor Output
1x 1/8" / 3.5 mm Headphone Output
Power I/O 2x XLR 4-Pin Input
Other I/O 1x RJ45 (LAN)
Media/Memory Card Slot No
File System Support exFAT
Wi-Fi No
Bluetooth No
Mobile App Compatible No
Format Support
Video Format HDMI (8/10-Bit 4:4:4 RGB)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 30/29.97/25/24/23.98
720p: 60/59.94/50
576i: 50
480i: 59.94
Timecode Support Yes
Pulldown Conversion No
Camera Trigger No
Pre-Roll Record No
Encoding Formats Up to 1920 x 1080
H.264 8/10-Bit 4:4:4
H.265 8/10-Bit 4:4:4
H.264 8/10/12-Bit 4:2:2
H.265 8/10/12-Bit 4:2:2
H.264 8-Bit 4:2:0
H.265 8-Bit 4:2:0
Maximum Audio Tracks 2
Reference Input Looping (Non-Terminating), Tri-Level Sync
Phantom Power +48 V
Power
Input Power 100 to 240 VAC, 50 / 60 Hz
12 to 18 VDC
Built-In Battery No
Battery Type No
Operating Current 7 A
Power Consumption 55 W (Typical)
Environmental
Environmental Protection No
Certifications No
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 10 to 90%
Storage Temperature -40 to 140°F / -40 to 60°C
Storage Humidity 10 to 90% (Non-Condensing)
General
Dimensions 10.59 x 8.64 x 3.31" / 268.9 x 219.46 x 84.08 mm
Weight 5.07 lb / 2.3 kg

In The Box

  • AJA Ki Pro GO2 Multichannel H.264/H.265 Recorder/Player
  • AC Power Supply
