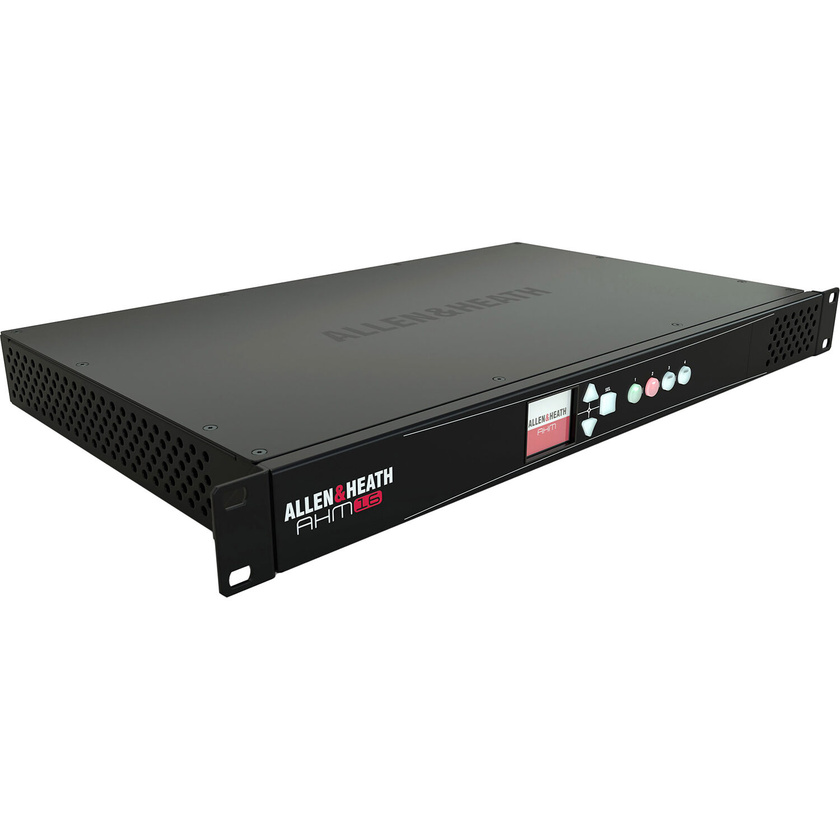

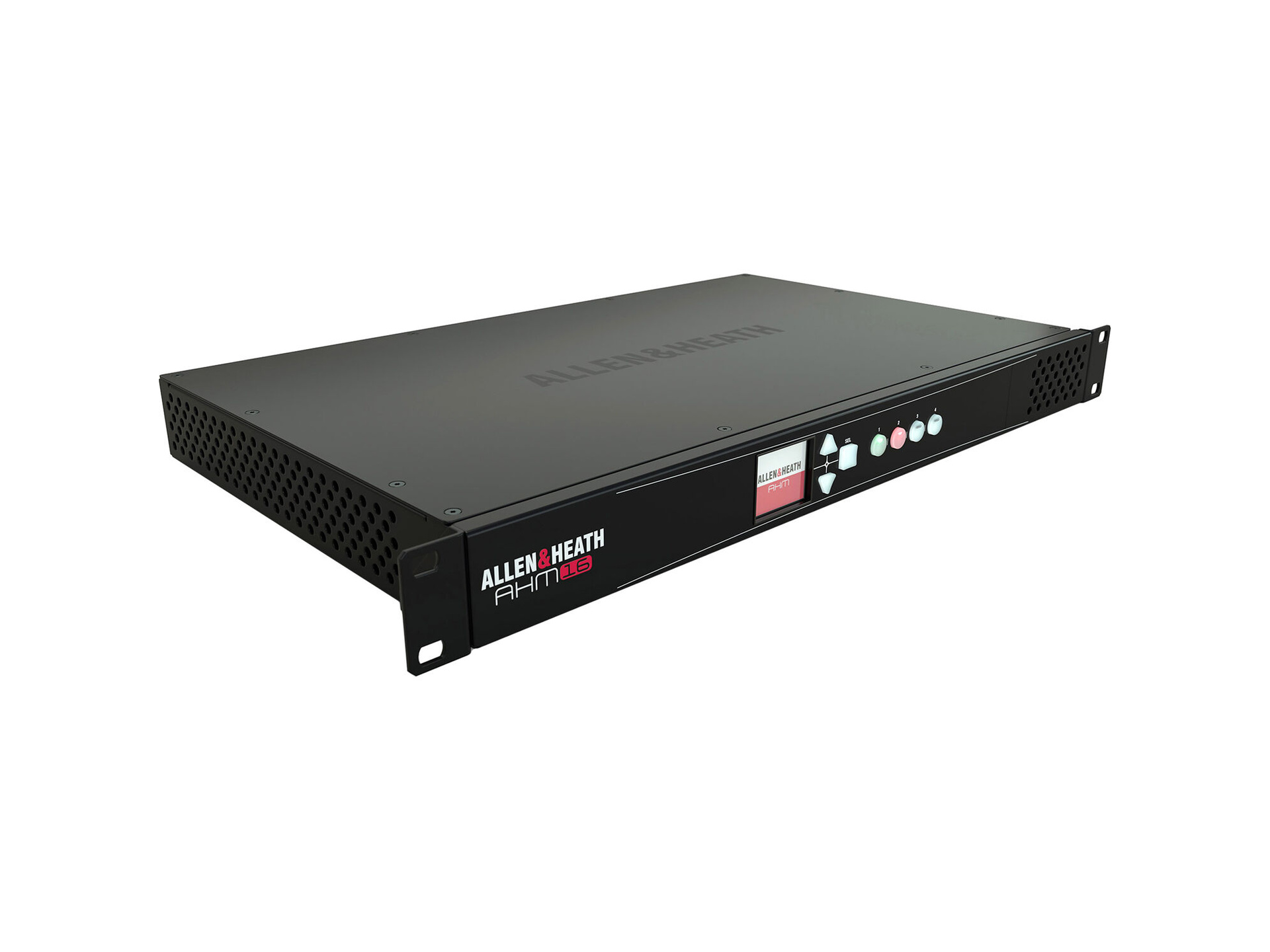

Allen & Heath AHM-16 16x16 Audio Matrix Processor with 8x8 I/O

Product #117564 | SKU AHM16 | Allen & Heath
In stock Ships Monday
Our Price $2,199
In stock Ships Monday
- +

this item may be nonreturnable
Shipping & Availability
Ships Monday. Deliver to Auckland for $18 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 working days
Click & Collect

Features

  • Sound Management and Installation
  • Audio Distribution, Paging, Conferencing
  • Speaker Processing + GPIO
  • 16x16 Matrix with 8x8 Local I/O
  • I/O Port for Expansion (Up to 128x128)
  • Configurable Outputs 16 Mono / 8 Stereo

Description

Audio installers in need of an audio matrix processor for sound management and installation can find a reliable solution in the Allen & Heath AHM-16 16x16 Audio Matrix Processor with 8x8 I/O. This device is designed to handle various audio tasks such as distribution, paging, conferencing, and speaker processing. Its versatility makes it suitable for different venues including corporate, hospitality, education, events, multipurpose venues, retail outlets, theaters, cruise ships, and sports venues.

One of the key features of the AHM-16 is its compatibility with a wide range of remote audio expanders, controllers, interfaces, apps, and software. The device can be used with portable, rack-mountable, or wall-mountable audio expanders that support either proprietary point-to-point Layer-2 or Dante transport protocols. Additionally, the AHM-16 can be integrated with various IP remote controllers for controlling volume, selecting music sources, recalling presets, and more. Furthermore, it is possible to connect the AHM-16 with third-party devices using GPIO, TCP/IP, or industry-standard control systems.

Specifications

General
Compatibility Not Specified by Manufacturer
Inputs / Outputs
Audio I/O 8x Block 3-Pin Line/Mic Input
8x Block 3-Pin Line Output
Power
Power Source AC Input (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 65 W (Maximum)
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
Physical
Colour Black
Cable Length Not Specified by Manufacturer
Dimensions 19 x 10.6 x 1.7" / 48.3 x 26.9 x 4.3 cm
Weight 8.4 lb / 3.8 kg

In The Box

  • Allen & Heath AHM-16 16x16 Audio Matrix Processor with 8x8 I/O
  • 10-Pin Phoenix Connector
  • 3-Pin Phoenix Connector
