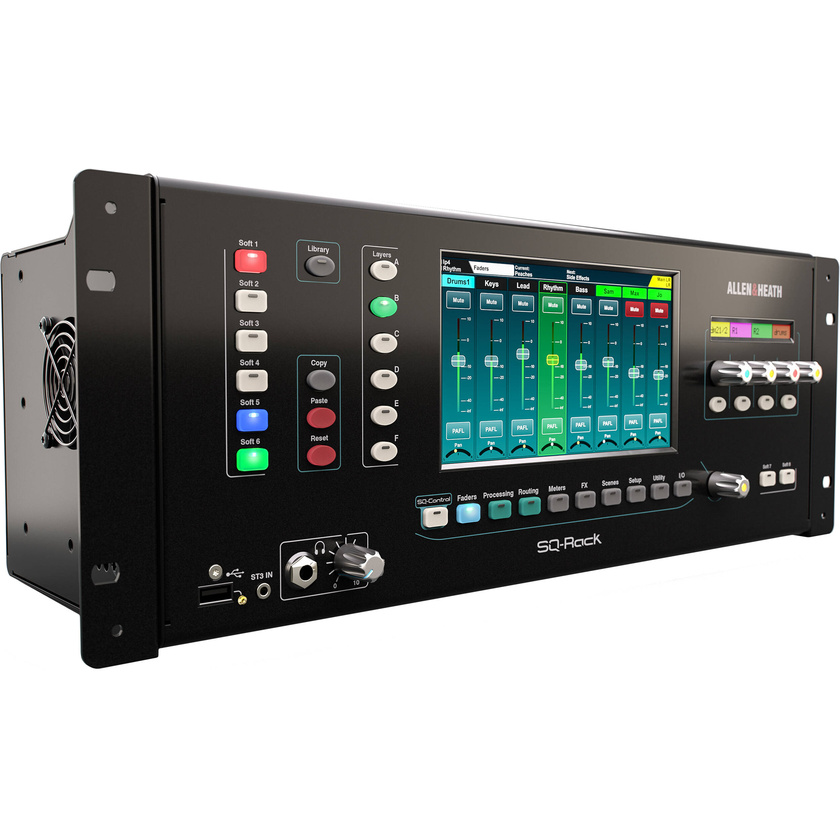

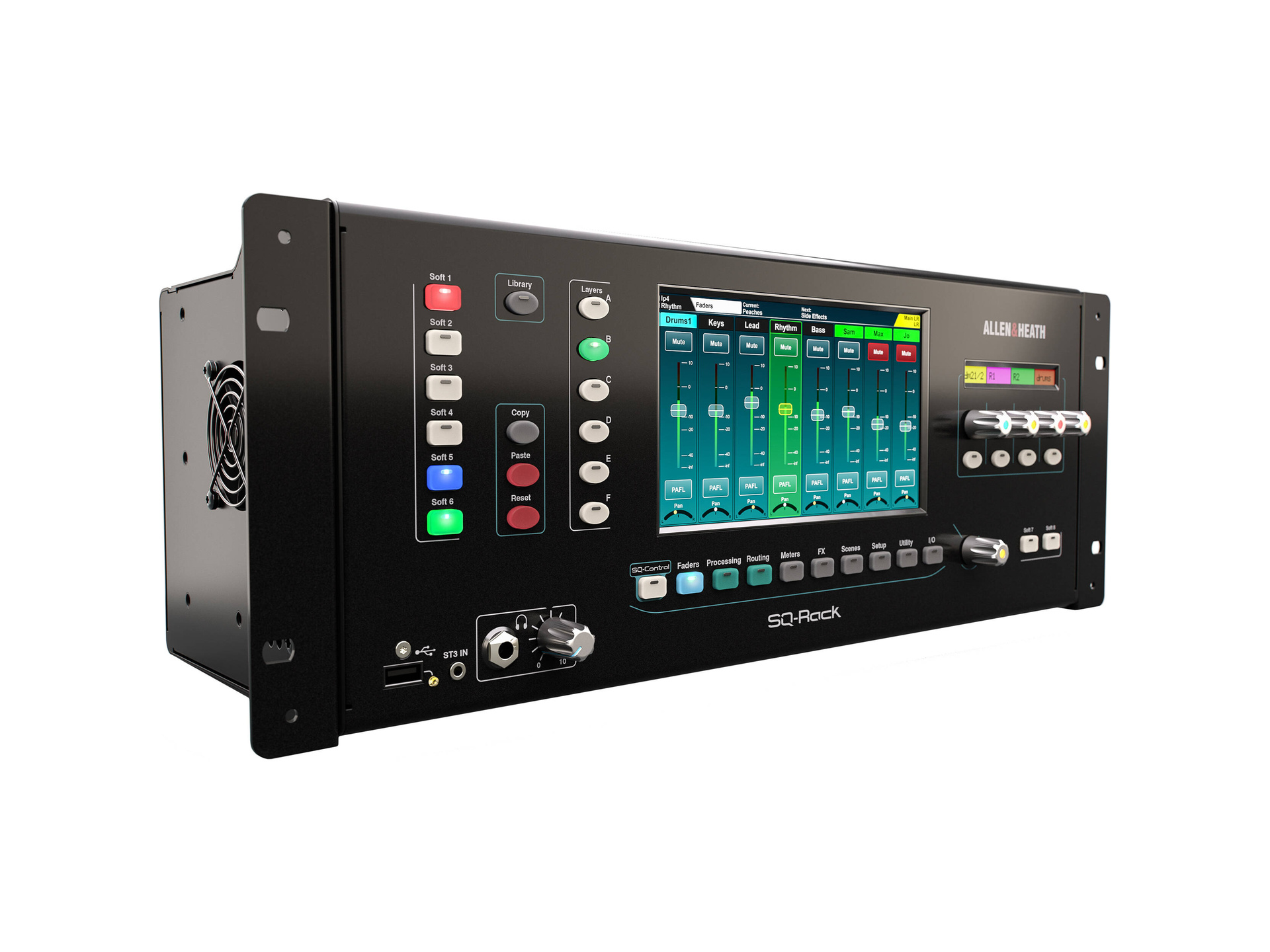

Allen & Heath SQ-Rack 48-Channel / 36-Bus Rackmount Digital Mixer (4 RU)

Name: Allen & Heath SQ-Rack 48-Channel / 36-Bus Rackmount Digital Mixer (4 RU)
Brand: Allen & Heath
SKU: 121115
Price: 3995.00 NZD
Availability: InStock

Product #121115 | SKU SQ-RACK | Allen & Heath

| Write a review

In stock Ships Monday

Allen & Heath SQ-Rack 48-Channel / 36-Bus Rackmount Digital Mixer (4 RU)

Our Price $3,995

In stock Ships Monday

this item may be nonreturnable

Request price match

Talk to our experts

Shipping & Availability

Ships Monday. Deliver to Auckland for $21 Change location

Click & Collect

Check availability

Features

16 Microphone Preamps
7" Capacitive Touchscreen
96 kHz XCVI FPGA Processing
Eight Stereo FX Engines with Returns
32 x 32 96 kHz USB Audio Interface
AES Output

Description Specifications In The Box

Description

The Allen & Heath SQ-Rack 48-Channel / 36-Bus Rackmount Digital Mixer (4 RU) is the ultimate tool for audio professionals, delivering Allen & Heath’s renowned 96kHz SQ core in a compact, rack-mountable design. Perfectly crafted to meet the demands of live sound and installation environments, SQ-Rack combines power, flexibility, and intuitive control in one versatile solution.

SQ-Rack is built on Allen & Heath’s renowned 96kHz XCVI FPGA engine, delivering exceptional high-resolution audio quality, ultra-low latency of <0.7ms and variable bit depths for optimised dynamic range. XCVI allows SQ to handle 48 input channels at 96kHz, with massive mix headroom thanks to a 96bit accumulator, and the sheer power to embed our acclaimed DEEP plugins into all 48 input channels and all mixes.

Specifications


Mixer
Max I/O Capacity	48x Input / 14x Output
Number of Analogue Input Channels	20 (16 Mono / 4 Stereo)
Number of Mic Preamps	16
Number of Analogue Output Channels	14
Mix Routing	12x Stereo Main LRC 3x Stereo Matrix 8x Stereo FX Return
Presets	Yes
Display	LCD Touchscreen
Faders & Level Adjustment	No
Signal Processing
Dynamic Processing	Input Channels: Compressor
AEQ	4-Band Parametric
Graphic AEQ	Yes
Solo/Mute	Mute per Input Channel
Audio Delay	Yes
Automatic Mic Mixing	Yes
Digital Audio
Sample Rates	96 kHz
Bit Depth	96-Bit
Performance
Signal Generator	No
Connectivity
Analogue Inputs	16x XLR 3-Pin Balanced Stereo Mic/Line Input 1x XLR Talkback Input 4x 1/4" Stereo Line Input (2 Stereo Pairs) 1x 1/4" Footswitch Input
Analogue Outputs	10x XLR 3-Pin Mono Output 2x XLR Stereo Output (1 Stereo Pair)
Digital I/O	1x XLR AES3
MIDI I/O	No
USB I/O	1x USB-B (Host Connection) 1x USB-A (External Memory, Recording)
USB I/O Capacity	32x Input / 32x Output
Expansion Ports	1x I/O Card
Wireless	Proprietary Wireless *Built-In
External Display I/O	No
Recording
Max Multitrack Recording	48 Tracks
Media Support	USB Drive
Compatibility
OS Compatibility	Windows / macOS
Physical
Rack Mountable	Yes
Rackmount Size	4 U

In The Box

Allen & Heath SQ-Rack 48-Channel / 36-Bus Rackmount Digital Mixer (4 RU)
Power Cord

Reviews

(no ratings yet)

Own or use this product?
Give it a quick rating:

Share your thoughts with other customers:
Write a review

Details

Product: Allen & Heath SQ-Rack 48-Channel / 36-Bus Rackmount Digital Mixer (4 RU)
Manufacturer: Allen & Heath
Model: SQ Rack
SKU: SQ-RACK
RM Product #: 121115
Warranty: 1 year manufacturer warranty on all Allen & Heath products apart from dLive models which have a 3 year manufacturer warranty
