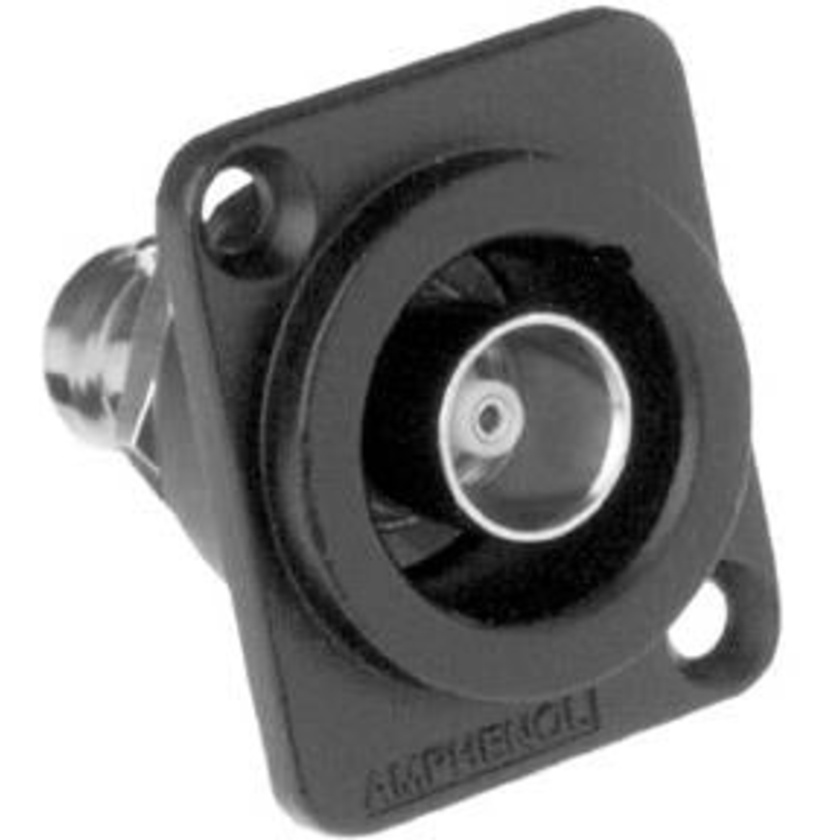

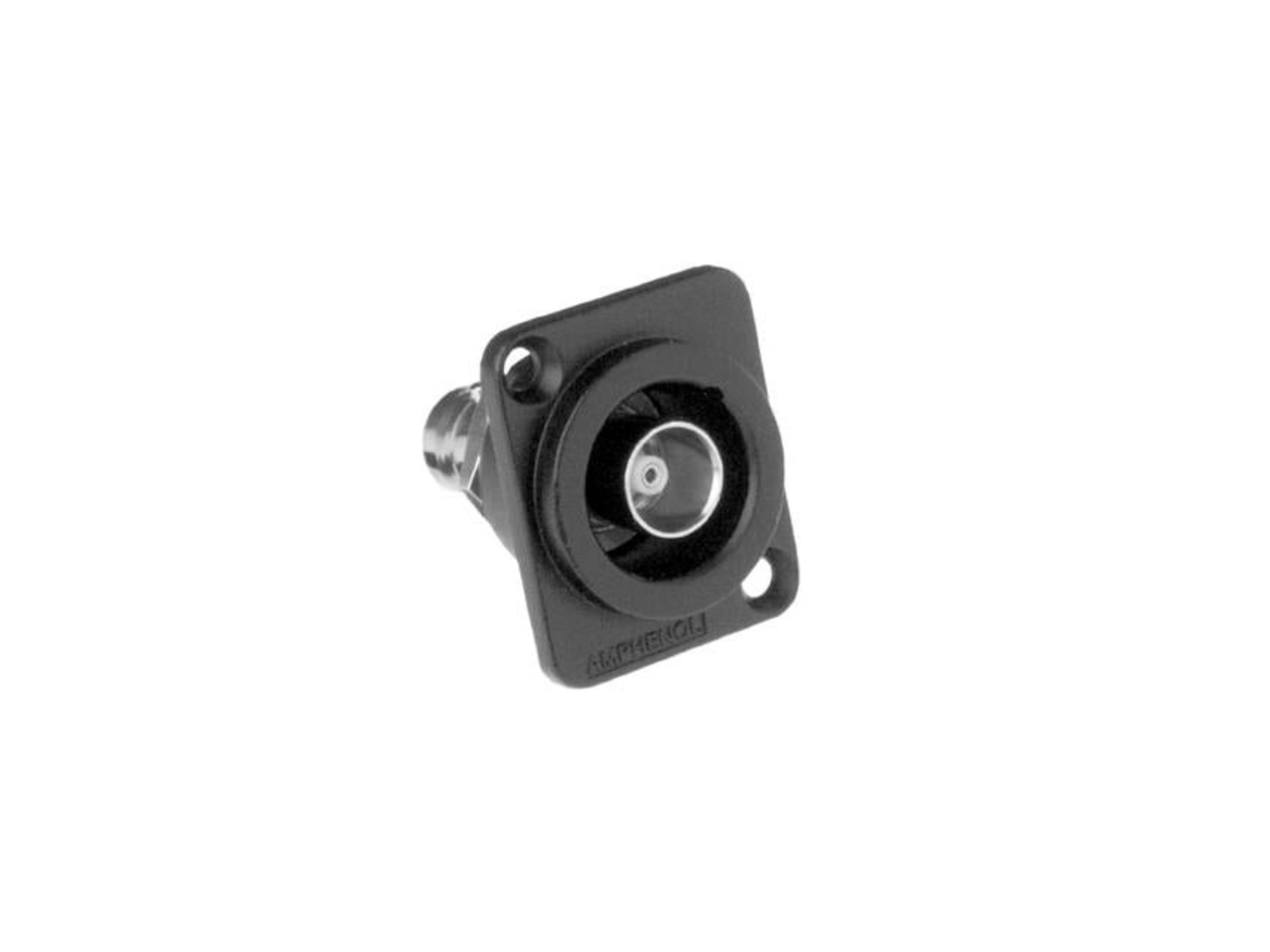

Amphenol AC Series BNC Bulkhead Connector (Female)
In Stock with Supplier
Usually ships in 2 - 3 working days
Our Price
$16.95
In Stock with Supplier
Usually ships in 2 - 3 working days
Email me when stock arrives
Shipping & Availability
Usually ships in 2 - 3 working days.
Deliver to
Auckland
for $5.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
2 - 3 working days
Click & Collect
Features
- Broadcast
- High bandwidth video equipment
- D1/D2 serial digital
- Graphic work stations
- Telephony / Workstations
Description
The Amphenol AC Series offers a complete range of high-performance BNC plugs for use in digital/HD video applications. Amphenol's True 75 Ohm BNC connectors perform well up to and beyond 3GHz and are designed to terminate to a variety of popular coaxial cable types. We can also offer custom connectors to suit non-standard cables on request. Plugs feature a precision machined brass body and coupling nut plated with cost effective nickel plating.
Specifications
| RF Series | BNC |
| Side 1 Gender | Jack (Female) |
| Side 1 Polarity | Normal |
| Side 2 Gender | Jack |
| Side 2 Polarity | Normal |
| Impedance | 75 Ohms |
| Shell Plating | Nickel |
| Maximum Frequency | 3 GHz |
| Body Material | Zinc Diecast |
| Contact Plating | Gold |
| Body Style | Flange |
| Mating Cycles | 5000 Cycles |
| Mounting Style | Bulkhead |
| Orientation | Straight |
| Product Type | RF Adapters - In Series |
| Series | BNC |
| Side 1 RF Series | BNC |
| Side 2 RF Series | BNC |
In The Box
- Amphenol AC Series BNC Bulkhead Connector (Female)
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Amphenol AC Series BNC Bulkhead Connector (Female)
- Manufacturer: Amphenol
- Model: AC-BNC-PJ-75
- SKU: AC-BNC-PJ-75
- RM Product #: 94362
