The Amphenol XLRnet Series was designed in conjunction with the Amphenol Data / Telecom product group of Amphenol Canada Corp., a subsidiary of Amphenol Corporation. Utilising our combined expertise and knowledge of the professional audio and high-speed data markets we are proud to offer the XLRnet series. Featuring Class D (10/100 BASE-T), CAT5E (1000 BASE-T) or CAT6 (10GBASE-T) ethernet performance in A, B or D shell housings with integrated LED's and complete shielding options we have your high-speed data requirements covered.

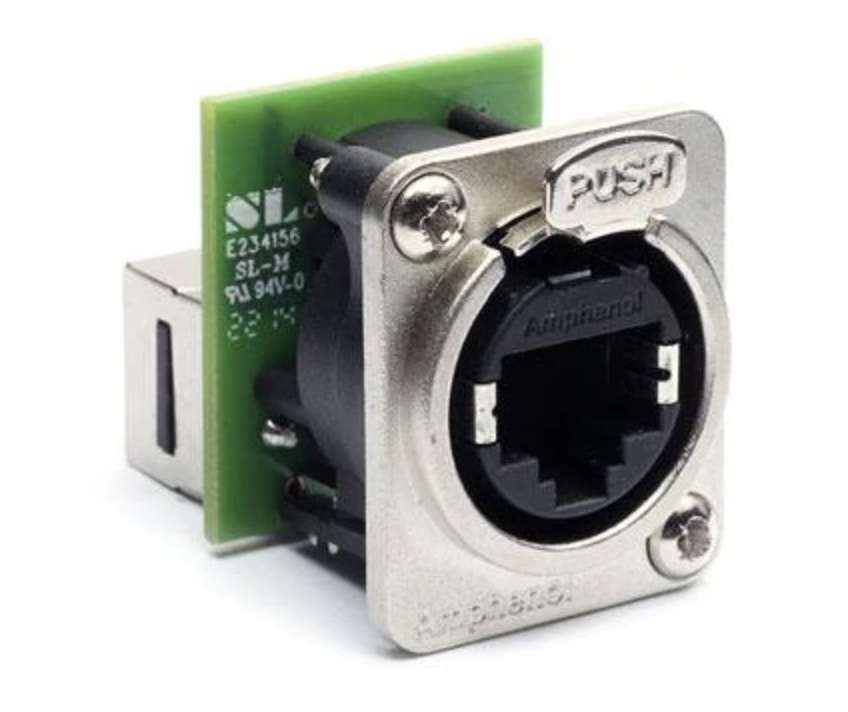

Amphenol XLRnet Series Cat5e Feedthrough Chassis Mount (Female)
In Stock with Supplier Usually ships in 2 - 3 working days
Our Price
$39.95
In Stock with Supplier Usually ships in 2 - 3 working days
Email me when stock arrives
Shipping & Availability
Usually ships in 2 - 3 working days.
Deliver to
Auckland
for $5.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
2 - 3 working days
Click & Collect
Features
- RJ45 Class D (10/100 Base-T), CAT5E (1000 Base-T) or CAT6 (10GBASE-T) Ethernet
- D type XLR standard housings
- IDC Punchdown block
- Thru-adaptor / Feedthrough
- Horizontal or Vertical PCB
Description
Specifications
| Number of Positions | 8 Position |
| Number of Ports | 1 Port |
| Performance Category | Cat 5e |
| Termination Style | Feed Through |
| Shielding | Unshielded |
| Current Rating | 1.5 A |
| Voltage Rating | 125 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 80 C |
| IP Rating | IP40 |
| Series | XLRnet |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
| Flammability Rating | UL 94 V-0 |
| Gender | Female |
| Housing Material | Polyamide (PA) |
| Insulation Resistance | 500 MOhms |
| Locking Mechanism | Latching |
| Mating Cycles | 1000 Cycle |
| Type | PCB Connector |
In The Box
- Amphenol XLRnet Series Cat5e Feedthrough Chassis Mount (Female)
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Amphenol XLRnet Series Cat5e Feedthrough Chassis Mount (Female)
- Manufacturer: Amphenol
- Model: RJX8FD5T
- SKU: RJX8FD5T
- RM Product #: 94342
