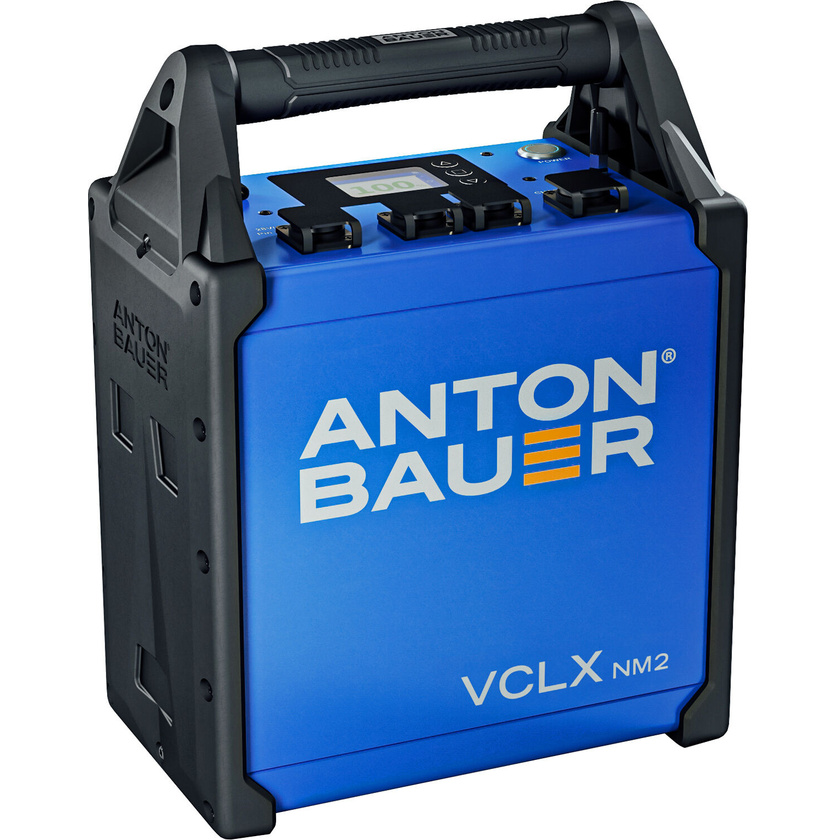

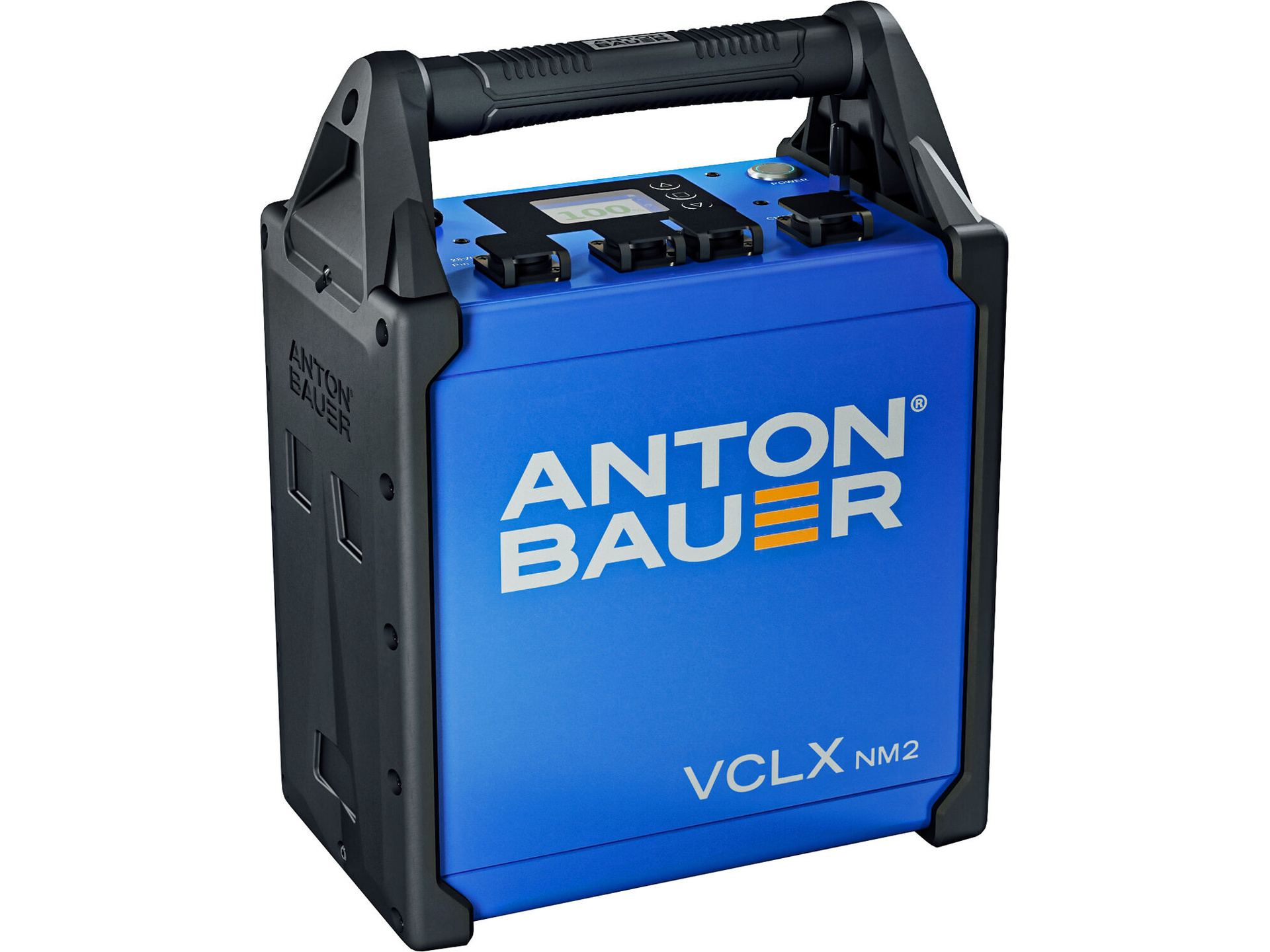

Anton Bauer VCLX NM2 NiMH 600Wh Free-Standing Battery

Product #117179 | SKU 8675-0174 | Anton Bauer
This product is no longer available what does this mean?
Anton Bauer VCLX NM2 NiMH 600Wh Free-Standing Battery
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • 600Wh NiMH Battery
  • Two 4-Pin XLR; 14.4V/12A Each Output
  • One 3-Pin XLR; 28V/16A or 48V/12A
  • 12 to 17 VDC Variable Output
  • Regulated 5 VDC Output
  • Integrated Digital Features

Description

The Anton Bauer VCLX NM2 NiMH 600Wh Free-Standing Battery is a reliable power source that offers long-lasting performance. With dual 14.4V outputs and a switchable 28/48V output, this battery can meet the diverse needs of various cameras. It is specifically designed for high-current applications and provides dual simultaneous outputs. The power output is through two 4-pin XLR connectors for 14.4V and one 3-pin XLR connector for 28/48V output.

To ensure maximum power efficiency, this battery is compatible with the VCLX 2 charger (not included). It features an onboard computer that maintains continuous communication with the charger. This communication includes exchanging information such as battery age, self-discharge, charge/discharge rate, cell imbalance, and past charge/discharge cycles. Additionally, the battery is equipped with an LCD screen that accurately displays the remaining battery capacity percentage at all times. This feature allows for easy monitoring of power levels during camera operation.

Specifications

Range Cine
Chemistry Nickel Metal Hydride
Voltage Multi
Capacity 600 Wh
Max load 700 W
Power tap No
USB Yes
Weight 13.30 kg
Dimensions 25.5 x 33 x 15.3 cm
XLR Connector Yes
XLR Inputs Yes
Camera Interface 2 X 4-Pin XLR (14.4v), 1 X 3-Pin XLR (28v or 48V)
Max current 24 Amps

In The Box

  • Anton/Bauer VCLX NM2 NiMH 600Wh Free-Standing Battery
