The Atlona AT-GAIN-M50-LZ 50W Mixer Amplifier is a two-input mixer amplifier designed for low impedance education and commercial applications. The amplifier delivers either two channels of 25 watts each into 4 or 8 ohms, or a single channel of 50 watts. The GAIN-M50-LZ features two unbalanced stereo audio inputs on RCA and 3.5 mm connections with independent level control for each. An unbalanced 3.5 mm output allows the mixed signal to be passed to an assistive listening system or separate amplifier.

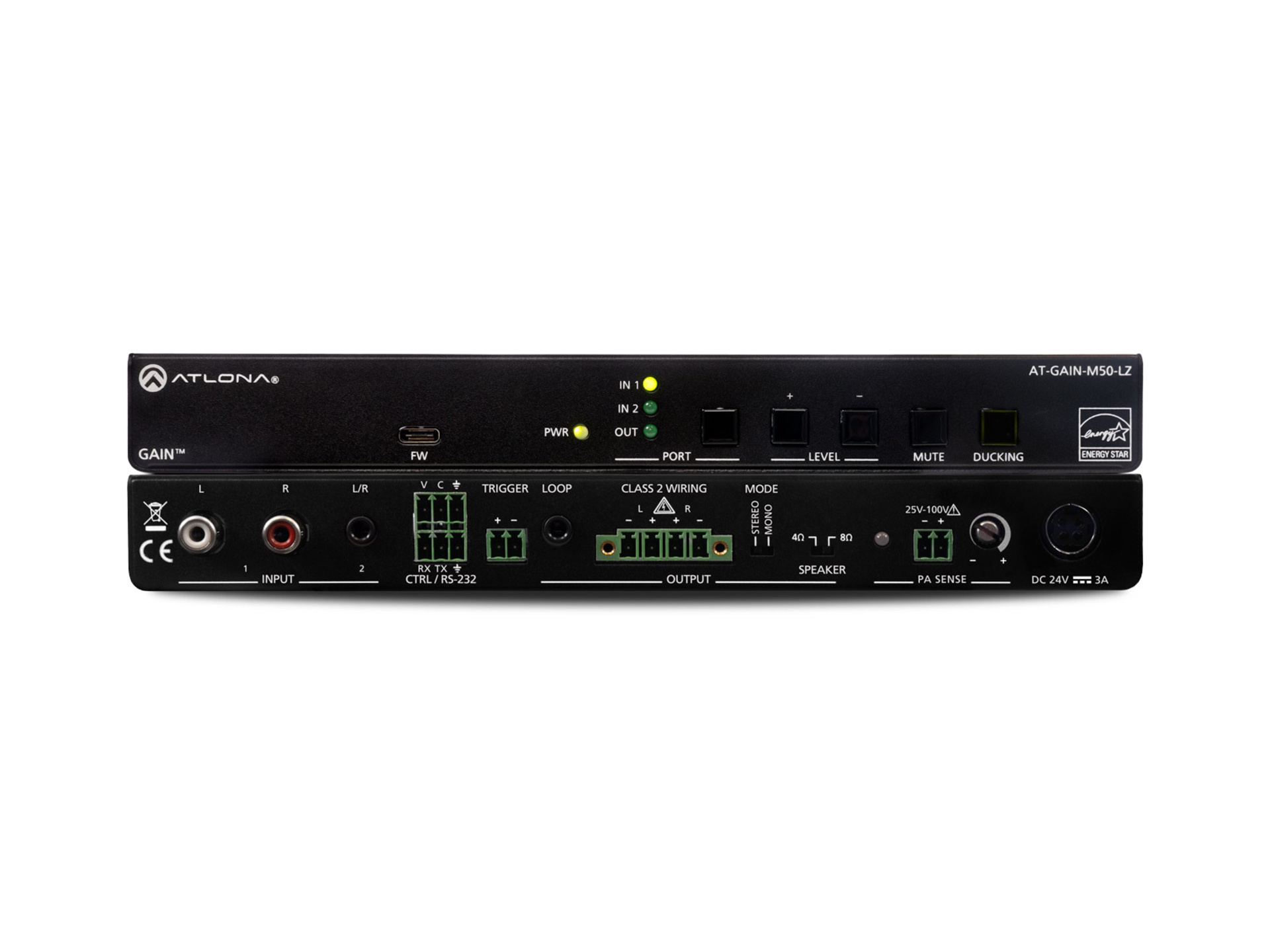

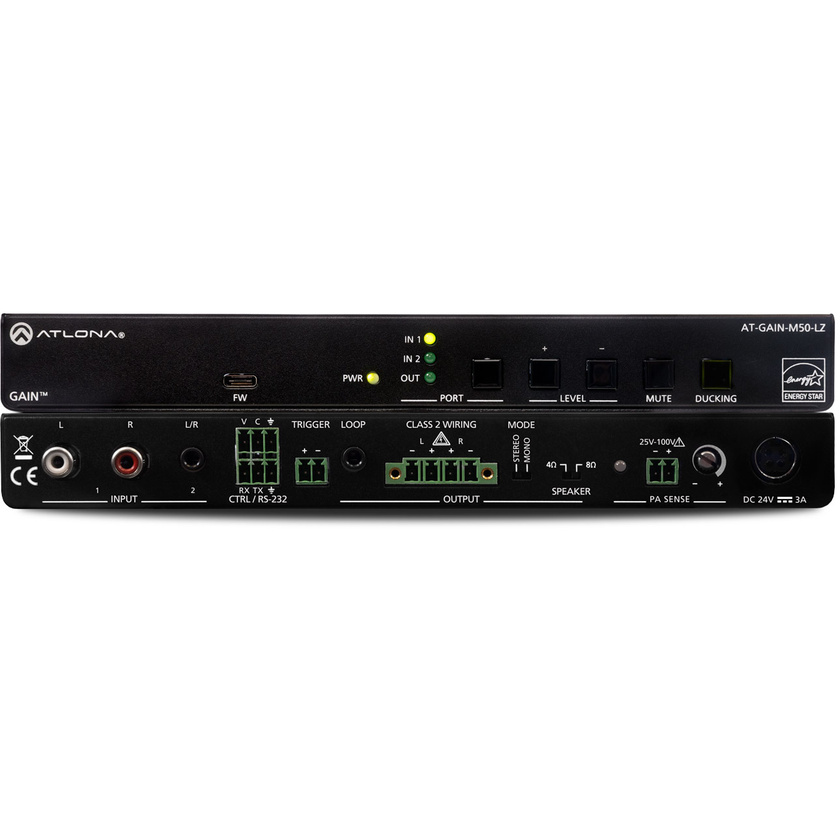

Atlona AT-GAIN-M50-LZ 50W Mixer Amplifier
Usually ships in 4 - 6 weeks
Our Price
$779
Usually ships in 4 - 6 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 4 - 6 weeks.
Deliver to
Auckland
for $8.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
4 - 6 weeks
Click & Collect
Features
- Two-Input mixer amplifier
- 2 x 25 watts (stereo)
- 1 x 50 watts (bridged)
- RS-232 control
- Compact, plenum rated enclosure
Description
Specifications
| Input Signal | |
| RCA | 3.162 Vrms unbalanced, < 0.1% THD |
| 3.5 mm stereo jack | 1 Vrms unbalanced, < 0.1% THD |
| Output Signal | |
| Nominal | 0.316 Vrms balanced, 20 Hz – 20 kHz, < 150 Ω |
| Maximum | 3.162 Vrms balanced, 20 Hz – 20 kHz, < 150 Ω |
| Amplifier | |
| Type | Class D |
| Frequency Response | 20 Hz – 20 kHz, ±2 dB |
| THD+N | < 0.1% @ 1kHz and < 0.3% @ 100 Hz - 16 kHz |
| IMD (ITU-R) | < 1%, 100 Hz - 15 kHz |
| Crosstalk | -80 dB, 20 Hz – 20 kHz, +4 dBU, channel-to-channel |
| RS-232 | |
| Port | 2 x 3-pin captive screw |
| Use | Unit and external device control and configuration |
| Baud Rates | 9600, 19200, 38400, 57600, 115200 |
| Data Flow | Bidirectional |
| Buttons and Indicators | |
| Buttons: PORT, LEVEL+ / LEVEL-, MUTE, DUCKING | 5 x momentary, tact-type |
| Indicators: PWR, IN1, IN2, OUT | 4 x LED, green |
| Connectors | |
| INPUT | 2 x RCA-type, female, unbalanced: 20 kΩ 1 x 3.5 mm mini-stereo |
| OUTPUT | 1 x 4-pin, 5.08 mm lock-down screw connector |
| CTRL / RS-232 | 2 x 3-pin captive screw |
| TRIGGER | 1 x 2-pin captive screw |
| LOOP | 1 x 3.5 mm mini stereo |
| PA SENSE 25V – 100V | 1 x 2-pin captive screw |
| HUB | 1 x USB type C, female |
| DC 24V / 3A | 1 x 4-pin DIN |
| Environmental Fahrenheit | Celsius |
| Operating Temperature | 0 to +50°C |
| Storage Temperature | -20 to +60°C |
| Operating Humidity (RH) | 20% to 90%, non-condensing |
| Power | |
| Standby Mode | Powers down after 5 – 25 minutes (adjustable) of no signal; complies with ErP power consumption limits of < 0.5W in standby mode |
| Idle Consumption | 3.6 W |
| Maximum Power | 64.3 W |
| BTU/h | 12.3 (idle) 67.9 (maximum power) |
| Supply | 100 – 240 V AC, 50/60 Hz Output: 24 V / 3 A DC |
| Dimensions (H x W x D) | 26 x 219 x 152mm |
| Power Supply (AT-PS-243-D4) | 36 x 46 x 112mm |
| Weight | 0.88kg |
| Certification | |
| Device | CE, RoHS, FCC |
| Power Supply | CE, FCC, UL, CUL, TUV-GS, CB, PSE, CCC |
| Compliance | |
| NDAA-889 | Yes |
| TAA | Yes |
In The Box
- Atlona AT-GAIN-M50-LZ 50W Mixer Amplifier
