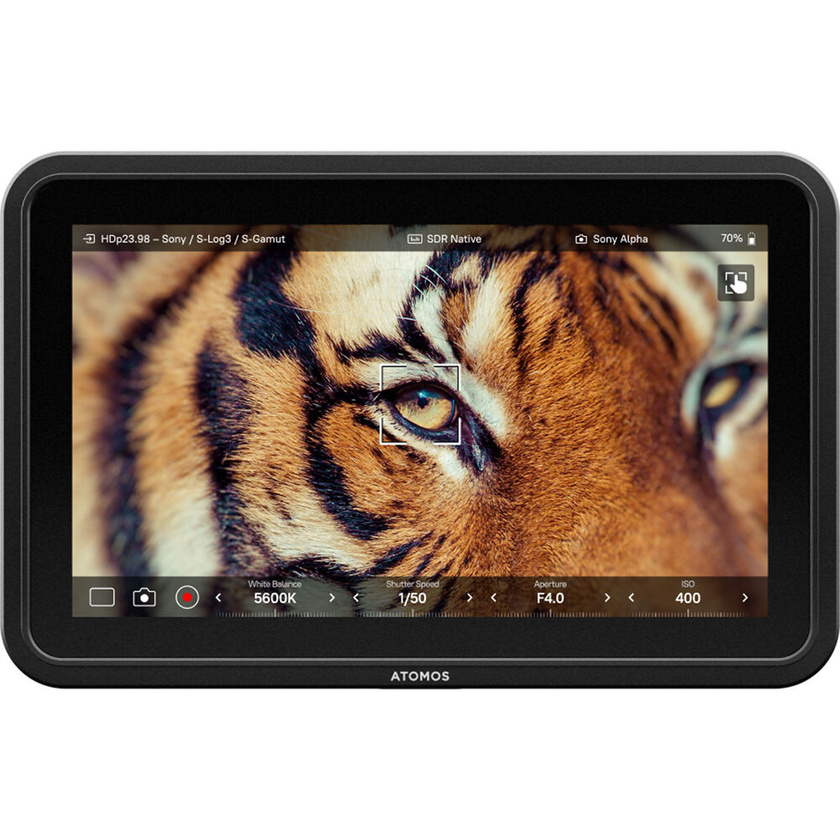

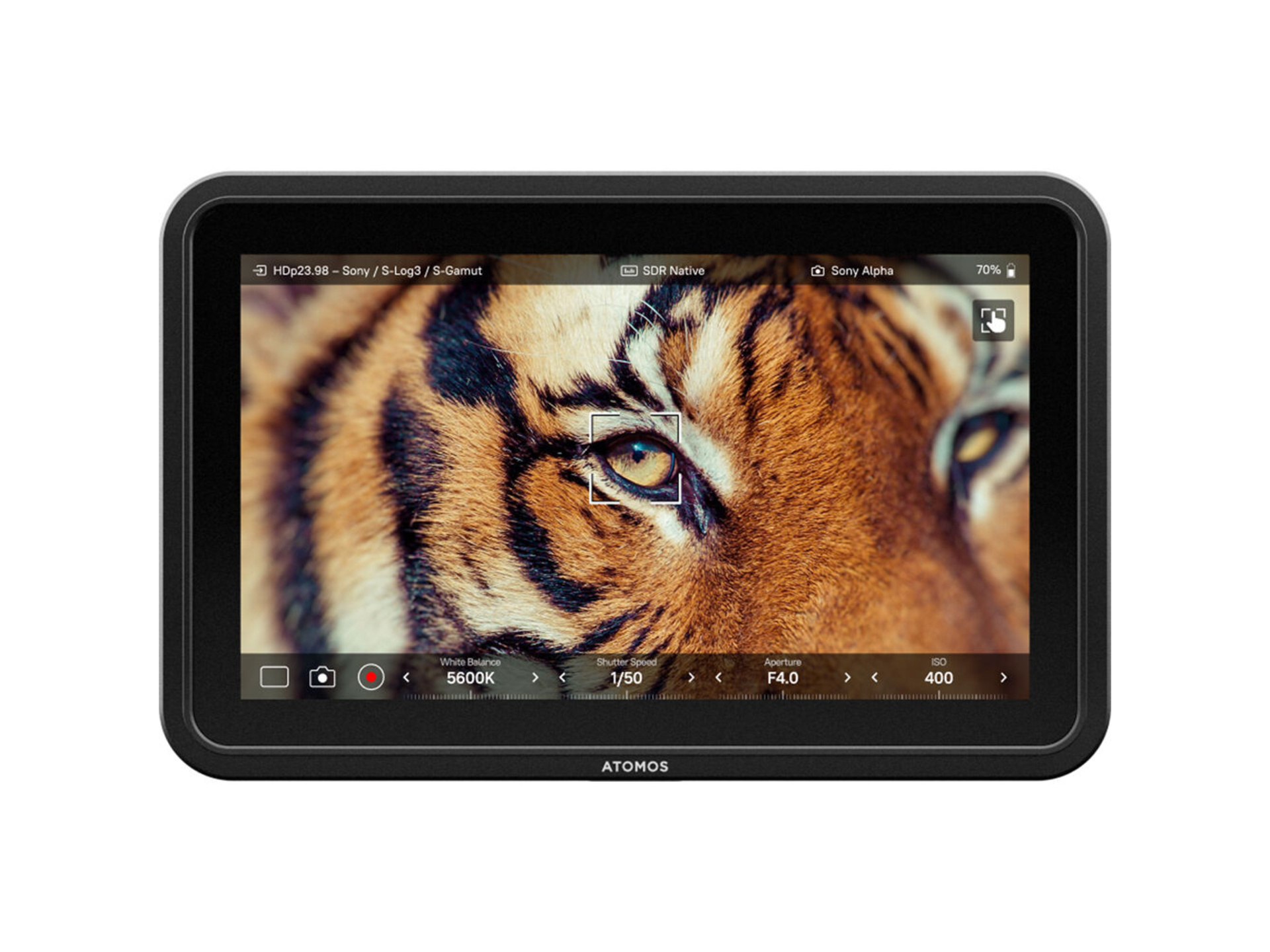

Add a bright, high-resolution monitor to control and view your cinema camera footage with the Atomos Shinobi 7 II 4K HDMI HDR Monitor with Camera Control. This 7" on-camera touchscreen monitor features a 1920 x 1080 display with a high brightness of 2800 cd/m², on-device calibration, and HDMI I/O, and it supports USB-C camera control. The Shinobi 7 II runs the latest AtomOS firmware, which features a variety of on-screen analysis tools.
Atomos Shinobi 7 II 4K HDMI HDR Monitor with Camera Control
Coming Soon ETA to be confirmed
Our Price
$1,099
Coming Soon ETA to be confirmed
Email me when stock arrives
Shipping & Availability
ETA to be confirmed.
Deliver to
Auckland
for $8.90
Change location
Click & Collect Availability
Wellington
Out of stock.
ETA to be confirmed
Click & Collect
Features
- 7" 1920 x 1080 Touchscreen Display
- 4K30 HDMI 2.0 Input/Output
- 2800 cd/m² Brightness
- USB-C Camera Control, Touch to Focus
- 10 Stops of Dynamic Range
- Sony L-Series Battery Slot
Description
Specifications
| Display | |
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Touchscreen | Yes |
| Maximum Brightness | 2800 nits / cd/m2 |
| Colour Support | 1.07 Billion Colours (10-Bit) |
| HDR Support | Yes: Advanced HDR |
| Colour Gamut | 100% Rec. 709 |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, Blue Only, False Colour, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
| Inputs/Outputs | |
| Video I/O | 1x HDMI 2.0 Input 1x HDMI 2.0 Output |
| Embedded Audio | HDMI: 2-Channel |
| Audio I/O | 1x 1/8" / 3.5 mm Line Input 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x USB-C (16.8 VDC) Input |
| Other I/O | 1x RJ45 (LAN) Input/Output 1x USB-C (Calibration) Input/Output [Shared with Camera Control] |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC [LUT/Firmware Update Only] |
| Wireless | |
| Wireless | No |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI (8/10-Bit 4:2:2) DCI 4K: 30/29.97/25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 DCI 2K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Power | |
| Input Power | 6.2 to 16.8 VDC |
| Battery | 1x L-Series Mount on Fixed Plate |
| Power Consumption | 13 W (Maximum) |
| Mounting | |
| Tripod/Accessory Mounting | Top/Bottom 1x 1/4"-20 Female 1x 3/8"-16 Female |
| General | |
| Environmental Resistance | No |
| Operating Conditions | Up to 104°F / 40°C |
| Material of Construction | Plastic |
| Dimensions | 7.4 x 4.7 x 0.9" / 188 x 120 x 23 mm |
| Weight | 0.88 lb / 401.00 g |
In The Box
- Atomos Shinobi 7 II 4K HDMI HDR Monitor with Camera Control
- USB-C 2.0 Cable
- HDMI/USB-C Locking Cable Adapter
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Atomos Shinobi 7 II 4K HDMI HDR Monitor with Camera Control
- Manufacturer: Atomos
- Model: ATOMSHB005
- SKU: ATOMSHB005
- RM Product #: 127852
- Screen Size: 7"
- Screen Resolution: 1920 x 1080
- Warranty: 1 year manufacturer warranty view terms
