Audac CAP412 Quad-Channel Power Amplifier 4 X 120w 100v

Product #76185 | SKU CAP412 | Audac
In stock Ships today
In stock Ships today

this item may be nonreturnable

Features

  • 120 Watt to each of the four channels
  • XLR connectors
  • Gain control potentiometer
  • High-pass filter switch (400Hz)
  • Double rack space, steel 19” housing

Related Products

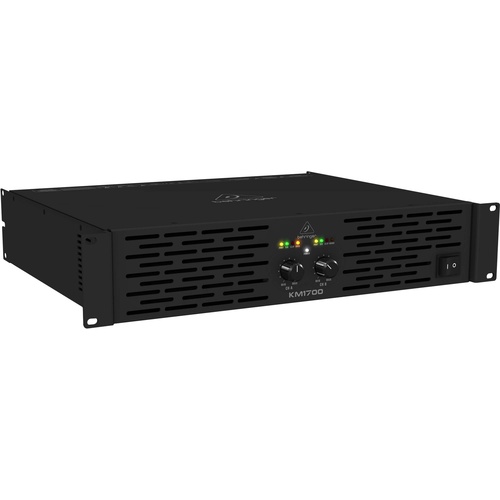

Behringer KM1700 Professional 1700W Stereo Power Amplifier Behringer KM1700 Professional 1700W Stereo Power Amplifier
Behringer Europower EP4000 Professional Stereo Power Amplifier Behringer Europower EP4000 Professional Stereo Power Amplifier

Description

The Audac CAP412 Quad-Channel Power Amplifier 4 X 120w 100v is a professional four channel 100V power amplifier which is capable of providing 120 Watt to each of the four separate output channels. This creates a great flexibility and new possibilities for installed multi-zone audio distribution systems.

It is designed as a no-nonsense amplifier with only the necessary controls and connections which creates great simplicity in use and installation. Every output channel contains different power taps to be used in 100 Volt, 70 Volt and even 4 Ohm low impedance applications and the input signal connections are performed using balanced XLR connectors, allowing link through to other amplifiers. Besides all the desired connection possibilities, the CAP412 also offers a gain control potentiometer and a high-pass filter switch (400Hz) on the back of the unit. A built-in multipurpose protection circuit protects against DC malfunction, short circuit, overheating, overload, and limits the signal when necessary. This all is built into a double rack space, steel 19” housing.

Specifications

SYSTEM SPECIFICATIONS
RMS Power 4 x 120 W
Signal / Noise > 100 dB
THD+N (@ 1 kHz) < 0.3% (1/2 Rated Power)
Crosstalk (@ 1 kHz) < 80 dB
Technology Class-D
Common mode rejection ratio 70 dB
Protection DC Short circuit
Over heating
Over load
Signal limiting
Cooling Temperature controlled FAN
Operating temperature 0° ~ 40° @ 95% Humidity
Frequency Response (± 3 dB) 50 Hz - 22 kHz
Power Supply Switching mode
Source 100 ~ 240 V AC / 50 ~ 60 Hz
Inputs Sensitivity (1W/1m) -0.5 dB ~ 10.5 dB
Impedance 10 kΩ balanced
Connector XLR female with Male Linkthrough
Outputs Voltage / Impedance 100 V / 83 Ω
70 V / 42 Ω
4 Ω
Connector 4-pin Euro Terminal Block (Pitch - 5.08 mm)
PRODUCT FEATURES
Dimensions 482 x 88 x 420 mm (W x H x D)
Weight 14.800 kg
Mounting 19”
Unit height 2 HE
Construction Steel
Colours Black
Accessories Included 4 x 4-pin Euro Terminal Block outputs connector

In The Box

  • Audac CAP412 Quad-Channel Power Amplifier 4 X 120w 100v

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Audac CAP412 Quad-Channel Power Amplifier 4 X 120w 100v
  • Manufacturer: Audac
  • Model: CAP412
  • SKU: CAP412
  • RM Product #: 76185
