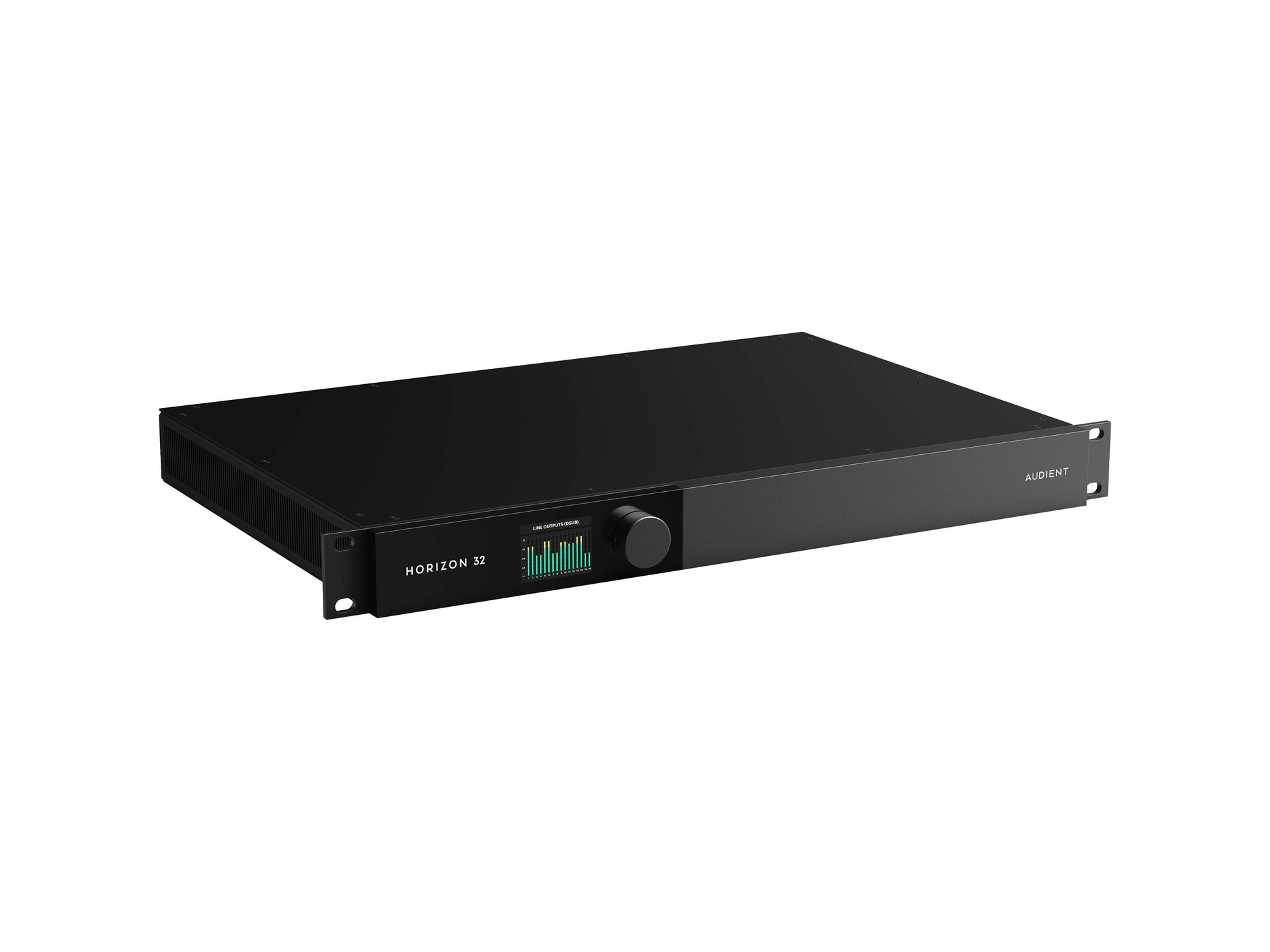

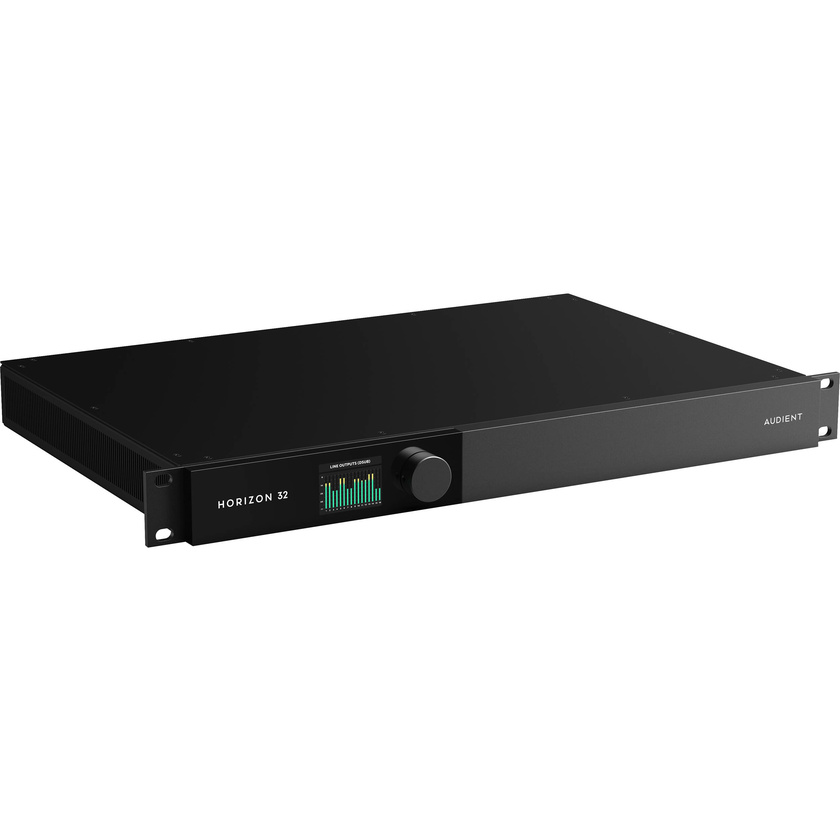

TheAudient Horizon 32 50x50 Thunderbolt 3 Audio Interface is designed for professional studios, large-format console systems, and facilities with high channel-count requirements. Its primary analogue connectivity comprises 32 line inputs and 32 line outputs across eight DB25 connectors, allowing an entire console or large outboard effect rack to connect to a macOS DAW from a single all-metal 1U rack unit.
Audient Horizon 32 50x50 Thunderbolt 3 Audio Interface
In stock Ships tomorrow
Our Price
$6,049
In stock Ships tomorrow
this item may be nonreturnable
Shipping & Availability
Ships tomorrow.
Deliver to
Auckland
for $16
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
2 - 3 working days
Click & Collect
Features
- For High-Channel-Count Studios
- 32-Line I/O Over Eight DB25 Connectors
- 16x16 ADAT I/O
- 64 Channels of 32-Bit Conversion
- 133 dB Dynamic Range
- 0.99 ms Round-Trip Latency
Description
Specifications
| General | |
| Display | No |
| Built-In DSP | No |
| Maximum Sampling Rate | 192 kHz / 32-Bit |
| Number of Microphone Inputs | No |
| Built-In Microphone | No |
| Input Level Adjustment | 1x Knob |
| Signal Processing | |
| Pad | No |
| High-Pass Filter | No |
| Connectivity | |
| Analogue Audio I/O | 2x 1/4" TRS Line Input 4x DB-25 Line Input 2x 1/4" TRS Line Output 4x DB-25 Line Output |
| Phantom Power | No |
| Digital Audio I/O | 2x TOSLINK Optical ADAT Input 2x TOSLINK Optical ADAT Output |
| Host Connection / USB | 2x USB-C |
| Host Connection Protocol | Thunderbolt 3 |
| USB (Non-Host) | No |
| Sync I/O | 1x BNC Word Clock Input 1x BNC Word Clock Output |
| Network I/O | No |
| MIDI I/O | No |
| Expansion Slots | No |
| Wireless | No |
| Performance | |
| Dynamic Range | 133 dB |
| Digital Audio | |
| Sample Rates | Up to 192 kHz |
| Sample Rate Conversion | On ADAT I/O |
| Bit Depths | 32-Bit |
| Latency | < 1 ms at 192 kHz |
| Sync Sources | ADAT and Word Clock |
| Audio Storage & Playback | |
| Media/Memory Card Slot | No |
| Compatibility | |
| OS Compatibility | macOS |
| Mobile Device Compatibility | No |
| Required Hardware | Thunderbolt 3 Port |
| Power | |
| Power Requirements | AC Input |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 84 W |
| Physical | |
| Rackmount Size | 1 U (with Included Hardware) |
In The Box
- Audient Horizon 32 50x50 Thunderbolt 3 Audio Interface
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Audient Horizon 32 50x50 Thunderbolt 3 Audio Interface
- Manufacturer: Audient
- Model: HORIZON32
- SKU: HORIZON32
- RM Product #: 128046
- I/O Configuration: 50 In / 50 Out
