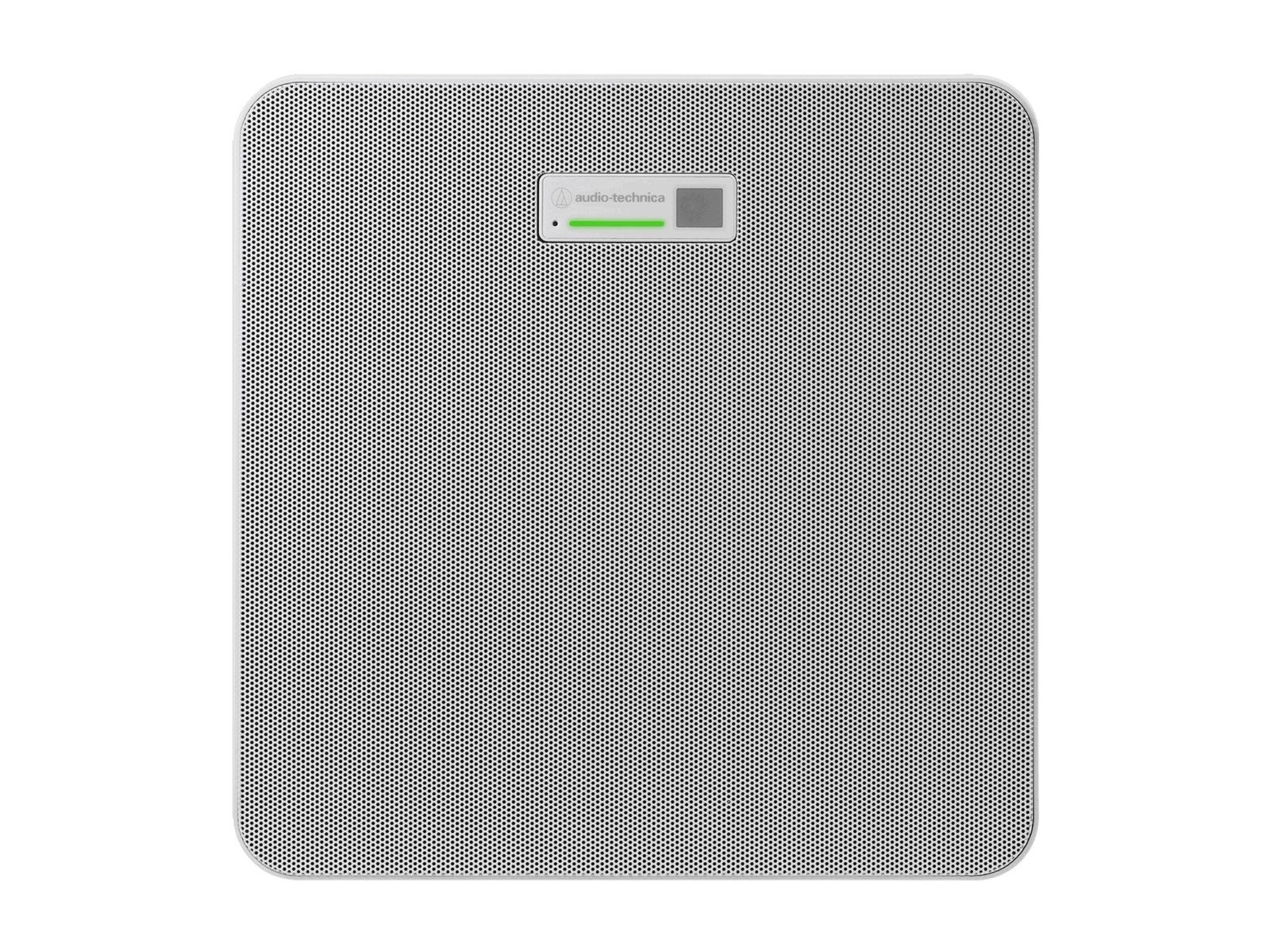

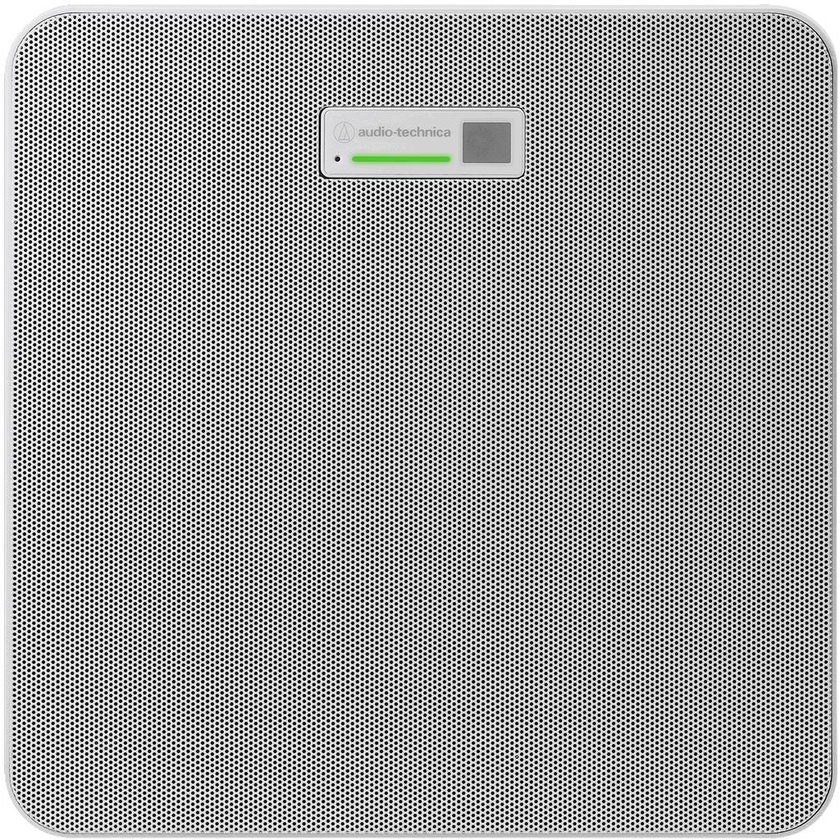

Audio-Technica ATND1061 Beamforming Ceiling Array Microphone

Product #125388 | SKU ATND1061 | Audio Technica
In stock Ships today
Our Price $3,859
In stock Ships today
- +

this item may be nonreturnable
Shipping & Availability
Ships today. Deliver to Auckland for $8.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 working days
Click & Collect

Features

  • Advanced beamforming ceiling array microphone
  • Ideal for conference rooms, boardrooms, and meeting spaces
  • Works for both small and large venues
  • Can be used alone or in multiples for more coverage
  • Effectively reduces background noise
  • Delivers clear, natural voice capture for all participants

Description

The Audio-Technica ATND1061 Beamforming Ceiling Array Microphone provides an exceptional audio solution tailored for conference rooms, boardrooms, and meeting spaces, both large and small. Whether used individually or in multiples for broader coverage in larger areas, this microphone is designed to ensure that every participant in the room is heard clearly and naturally. Its advanced beamforming technology effectively minimizes distracting environmental noise, resulting in high-quality, focused sound capture.

Versatile Installation

With a form factor similar to that of a standard wireless access point, the ATND1061 blends seamlessly into any modern meeting environment. Its unobtrusive design makes it suitable for a variety of ceiling types and room layouts, ensuring both aesthetic appeal and optimal coverage.

Simple Setup and Operation

Engineered as a state-of-the-art professional product, the ATND1061 is straightforward to install and configure. Comprehensive documentation and user-friendly software tools help streamline setup, allowing system integrators and end users to deploy the microphone quickly and efficiently.

Reliable Performance

Whether you are equipping a single huddle space or outfitting an entire suite of meeting rooms, the ATND1061 delivers reliable and consistent performance. Its advanced audio processing capabilities ensure every voice is captured with clarity and precision, enhancing communication and collaboration in any setting.

Specifications

Beam Width 90-degrees
Polar Pattern Beam pattern
Frequency Response 60 Hz to 18,000 Hz
Maximum Input Sound Level 102 dBSPL
Sensitivity -8 dBFS (1 kHz, 94 dBSPL)
Dynamic Range 89 dB (A-weighted)
Signal-to-Noise Ratio 61.5 dB (A-weighted)
Self-Noise 25 dBSPL (A-weighted)
Analog Audio
Frequency Response 20 Hz to 20 kHz (+1.0/-2.0 dB)
Dynamic Range 100 dB (A-weighted)
Signal to Noise Ratio 80 dB (A-weighted)
Headroom 20 dB
Residual Noise -75.8 dBu (A-weighted)
T.H.D <0.1% (1 kHz, unity)
Analog Input MIC Maximum -30 dBu
MIC Unity -50 dBu
LINE Maximum +12.2 dBu
LINE Unity -10 dBV, Switchable
Analog Output OUTPUT Maximum +19.2 dBu
OUTPUT Unity +4 dBu/-10 dBV/-33 dBV, Switchable
General Specifications - Beamforming Array
Power Requirement PoE (IEEE 802.3af Class 0)
Power Consumption Max. 7 W
Operation Temperature Range 0°C to 40°C (32°F to 104°F)
Operation Humidity Range 25% to 85% (Non condensing)
Dimensions 227.5 mm × 227.5 mm × 30 mm (W × D×H)
Weight 1250 g
Network Dante 1 Gbps
IP control 100 Mbps
Digital Audio Sampling rate 48 kHz
Bit depth 24 bit
Latency Microphone (CH1 to CH6) 47 msec
Microphone (Auto Mix CH) 79 msec
Dante Min. 250 usec, Max. 5 msec
I/O Connector Network/Dante RJ-45
Analog input Euroblock 3 pin
Analog output: Euroblock 3 pin
GPI Euroblock 3 pin
Phantom Power Analog input 12 V

In The Box

  • Audio-Technica ATND1061 Beamforming Ceiling Array Microphone
  • IR remote controller
  • Surface mount adapter
  • Screw (M4 × 50 mm) × 4
  • Flush mount adapter
  • Flush mount cover
  • Screw (M4 × 10 mm) × 12
  • Hole cover
  • Nut × 4
  • Snap bushing × 2
  • Tile bridge A × 2
  • Tile bridge B × 2
  • Tile bridge C × 4
  • Seismic cable
  • Zip tie
  • Safety belt
  • Euroblock connector × 3

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Audio-Technica ATND1061 Beamforming Ceiling Array Microphone
  • Manufacturer: Audio Technica
  • Model: ATND1061
  • SKU: ATND1061
  • RM Product #: 125388
  • Warranty: 1 year manufacturer warranty on all Audio Technica products. 5 year limited warranty on all Audio Technica Wired Microphones.
