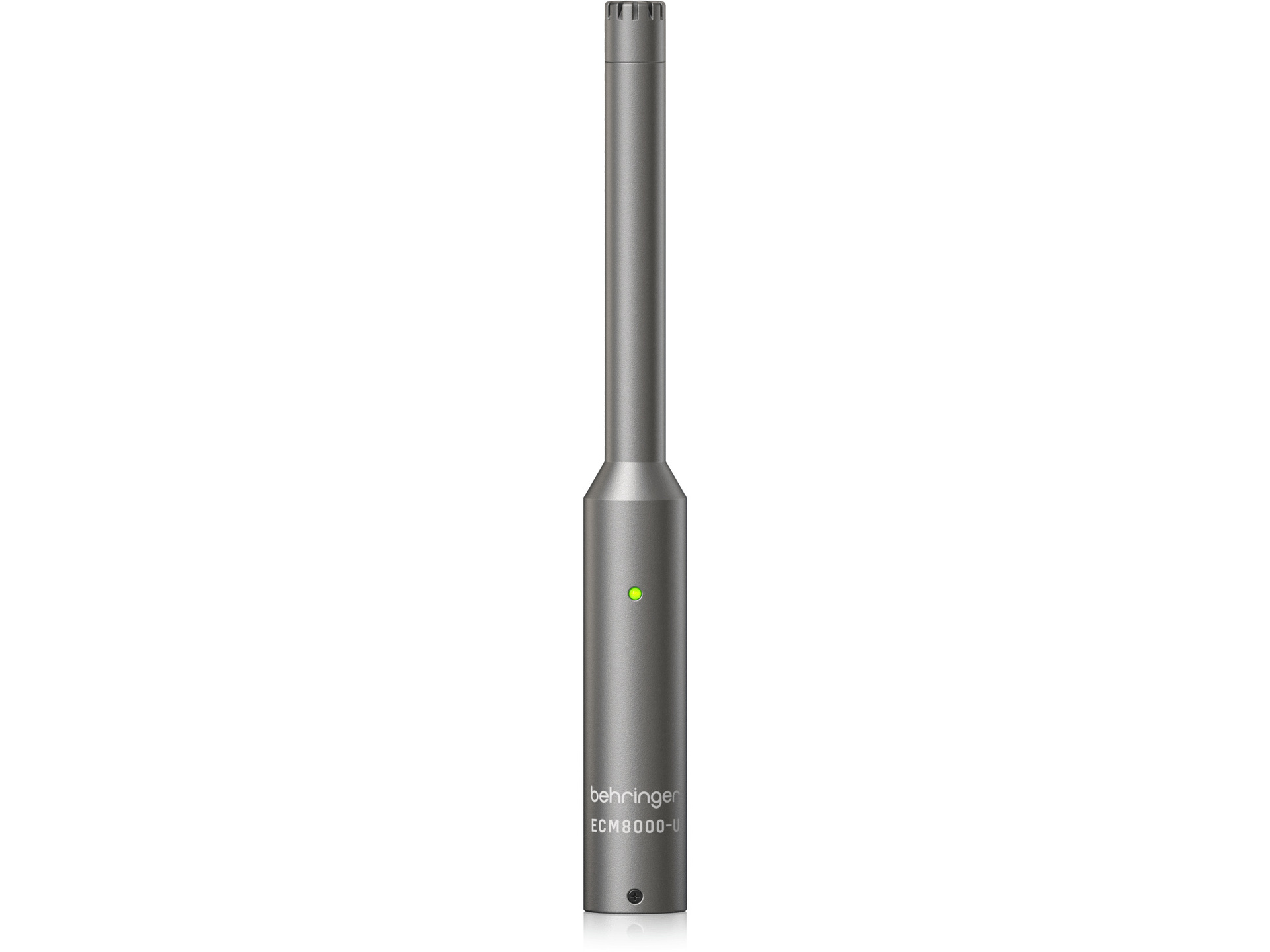

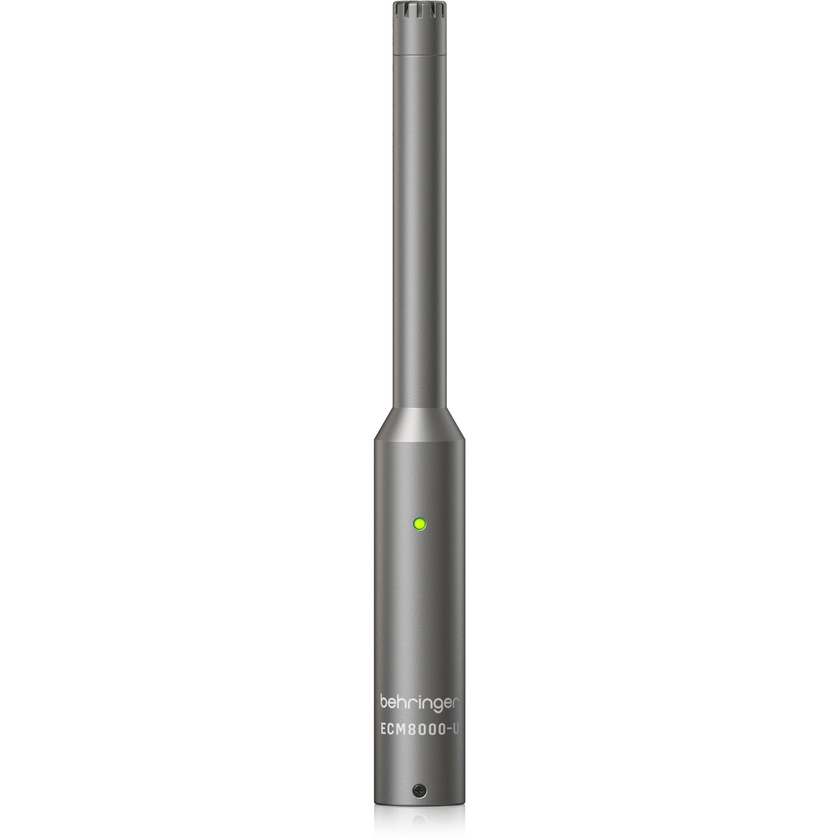

Behringer ECM 8000-U USB Condenser Omnidirectional Measurement Microphone

Product #128048 | SKU ECM8000U | Behringer
Contact us for an ETA what does this mean?
$119
Contact us for an ETA what does this mean?
- +
Email me when stock arrives
Have a question about this product? Send us a message


Features

  • Ultra-linear USB microphone for precise measurements
  • Ideal for room, live, car calibration
  • Exceptionally linear response, ultra-high resolution
  • True omnidirectional pattern, accurate capture
  • Plug-and-play for Windows, Mac, Linux
  • Includes clamp and zipper case

Description

The Behringer ECM 8000-U USB Condenser Omnidirectional Measurement Microphone is a plug‑and‑play USB calibrated measurement microphone designed for precise, studio‑grade sound analysis. Featuring an ultra‑linear, true omnidirectional 6 mm electret capsule, it delivers accurate frequency response from 20 Hz to 20 kHz with excellent resolution, making it ideal for room, live sound, car audio calibration, and monitor alignment. With 24‑bit / 48 kHz audio quality, high SPL handling, and a simple USB‑C connection compatible with Windows, macOS, Android, and Linux, the ECM8000‑U requires no drivers or external power. Compact and lightweight, it comes complete with a microphone clamp and protective zipper case, making professional acoustic measurement easy and portable.

Features
  • Ultra-linear USB microphone for precision measurements and studio calibration
  • Ideal for room, live, and car acoustics calibration, as well as monitor alignment applications
  • Exceptionally linear frequency response and ultra-high sound resolution
  • True omnidirectional pattern for accurate sound capture
  • USB plug-and-play interface for Windows, Mac, and Linux
  • Includes microphone clamp and zipper case for easy mounting and protection

Specifications

Weight 130 g
Frequency Response 20 Hz – 20 kHz
Max SPL (1% THD @ 1 kHz) 134 dB SPL @ -14 dB gain setting
Capsule Type Precision 6 mm electret
Polar Pattern Omnidirectional
Sensitivity -6 dB FS/Pa @ +20 dB gain setting
SNR 65 dB (A-weighted)
Sample Rate 48 kHz
Bit Depth 24-bit
Output Connection USB Type-C connector
OS Requirements Windows / macOS / Android etc.
Current Consumption 18 mA
Power Requirements USB Powered (5V), Green LED indicates unit under power
Dimensions 20.5 mm (Diameter) x 180 mm (Length)

In The Box

  • Behringer ECM 8000-U USB Condenser Omnidirectional Measurement Microphone

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Behringer ECM 8000-U USB Condenser Omnidirectional Measurement Microphone
  • Manufacturer: Behringer
  • Model: ECM8000U
  • SKU: ECM8000U
  • RM Product #: 128048
  • Warranty: 1 year manufacturer warranty view terms
