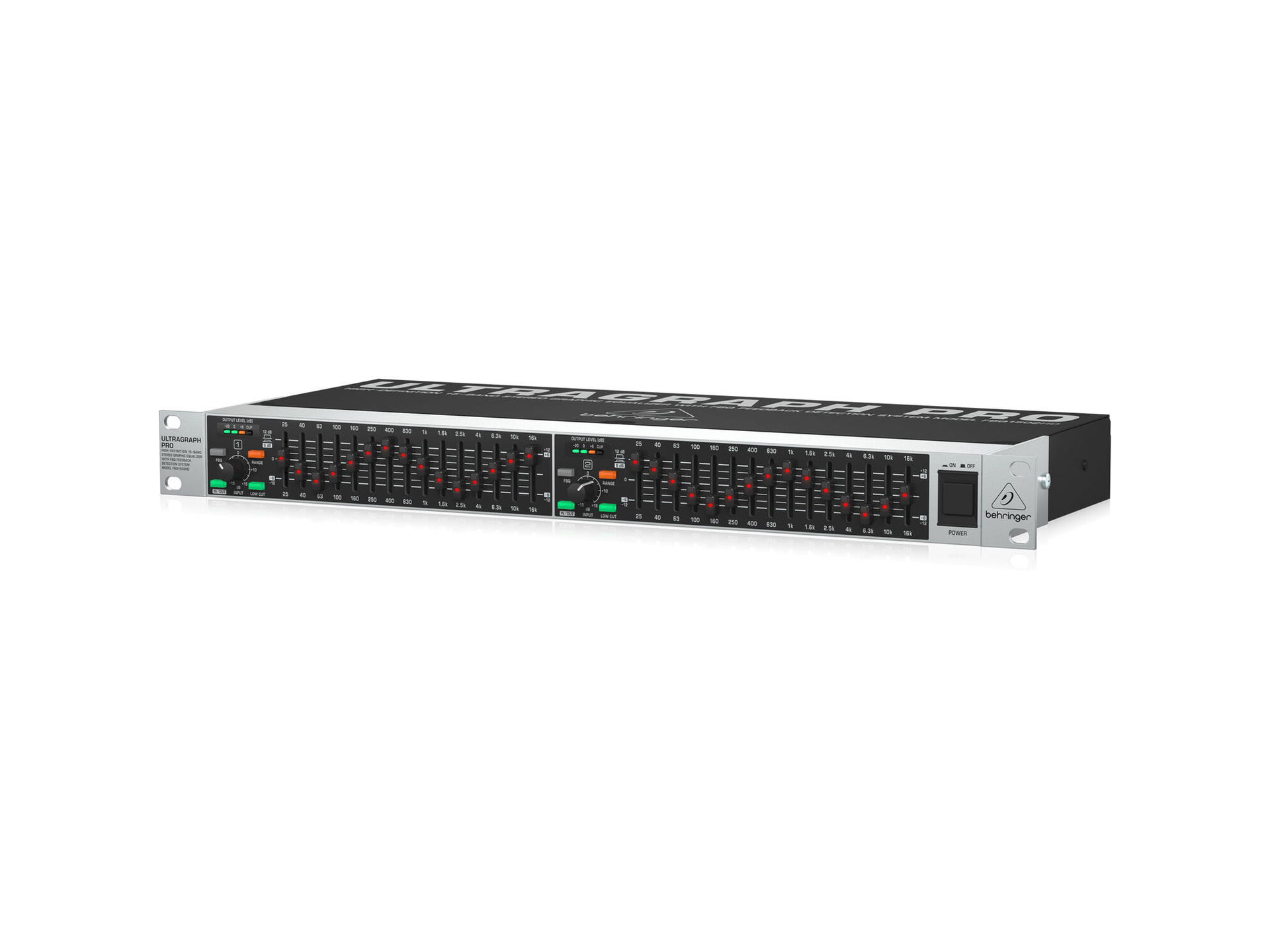

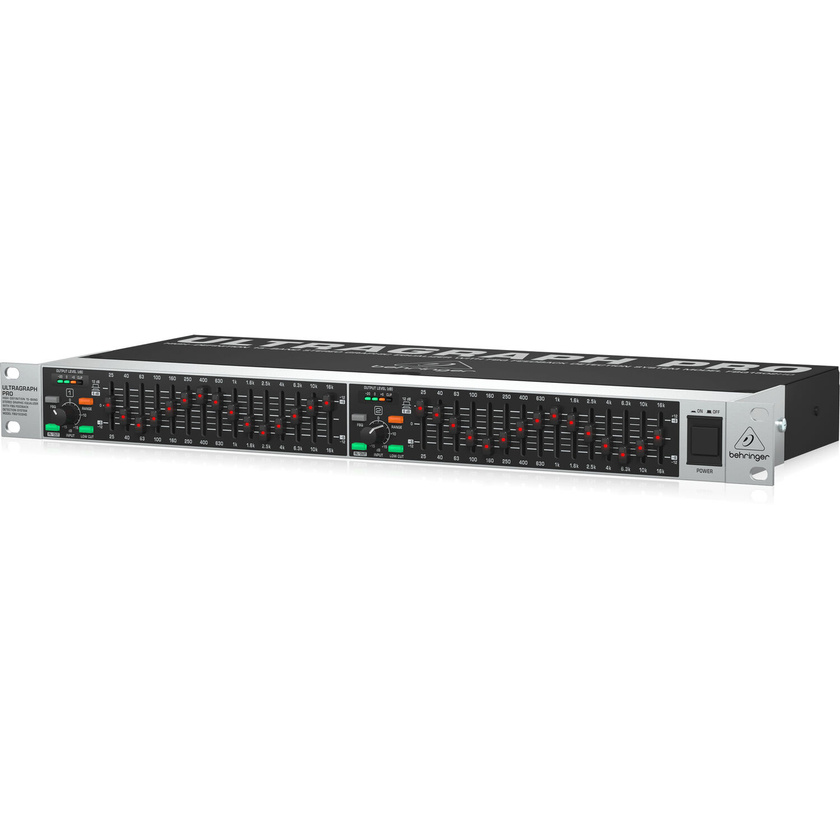

Behringer ULTRAGRAPH-PRO FBQ1502HD Dual Channel 15-Band Graphic EQ
Product #42454 | SKU FBQ1502HD
In stock Ships today
0.0 (no ratings yet) Thanks for your rating!


Behringer ULTRAGRAPH-PRO FBQ1502HD Dual Channel 15-Band Graphic EQ

Product #42454 | SKU FBQ1502HD
In stock Ships today


Dual-Channel 15-Band Graphic Equalizer, FBQ Feedback Detection System
Customer Reviews
0.0 (no ratings yet) Thanks for your rating!
Product Details
  • Product: #42454
  • SKU: FBQ1502HD
Our Price $169.00
- +
or 6 weekly payments from $28.16

Delivery - $14.00*
Ships today
Pickup AUCKLAND
2 - 3 working days
Pickup WELLINGTON
1 - 2 working days
*estimated shipping to Auckland

Read More: Overview More Info

Overview

Equally suited to both live and studio environments, the ULTRAGRAPH-PRO FBQ1502HD from Behringer is dual-channel 15-band AEQ featuring the proprietary FBQ feedback detection system, a handy tool for identifying problematic frequencies in a room, or for use as an audio analyser.

Additional low-cut filters aid in mitigating unwanted frequencies, while ultra low-noise 4580 operational amplifiers seek to bolster the sonic performance of this unit. Utilising an on-board crossover frequency selector, a dedicated mono XLR out helps separate frequencies that are more suitable for the subwoofer than the mains. The unit also provides both 1/4" TRS and XLR connection points.

Key Features

  • 15-band graphic equaliser for two-channel (stereo) implementation
  • FBQ feedback detection system for identifying problematic frequencies in a live context, or for use as an audio analyser
  • Servo-balanced inputs and outputs with 1/4" TRS and gold-plated XLR connectors
  • Additional low-cut filter on both channels
  • Ultra low-noise 4580 operational amplifiers
  • Dedicated mono subwoofer output with adjustable crossover frequency
  • 4-segment LED output metering and input gain controls

Specifications

Filter Type Graphic
Number of Channels 2x
Inputs 2x XLR
2x 1/4" TRS phone
Outputs 2x XLR
1x XLR for subwoofer
2x 1/4" TRS phone
THD & Noise 0.008%
Maximum Input Level +21 dBu balanced and unbalanced
Frequency Bands Fifteen per channel, ISO frequencies
Bandwidth 2/3 octave
Range (Boost/Cut) +/-6 dB or +/-12 dB, switchable
Maximum Output Level Not specified by manufacturer
Frequency Response 25 Hz to 16 kHz, +/- 3 dB
Dynamic Range Not specified by manufacturer
Noise >94 dB @ +4 dBu, 22 Hz to 22 kHz
Dimensions (H x W x D) 1.7 x 19.0 x 8.5" (44 x 483 x 215 mm)
Weight 3.7 lb (1.7 kg)
Specialities Dedicated mono subwoofer output with adjustable crossover frequency
Packaging Info
Package Weight 5.45 lb
Box Dimensions (LxWxH) 20.9 x 12.1 x 4.3"

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review
Details
  • Product: Behringer ULTRAGRAPH-PRO FBQ1502HD Dual Channel 15-Band Graphic EQ
  • Manufacturer: Behringer
  • Model: FBQ1502HD
  • SKU: FBQ1502HD
  • RM Product #: 42454
  • Warranty: 3 year manufacturer warranty
