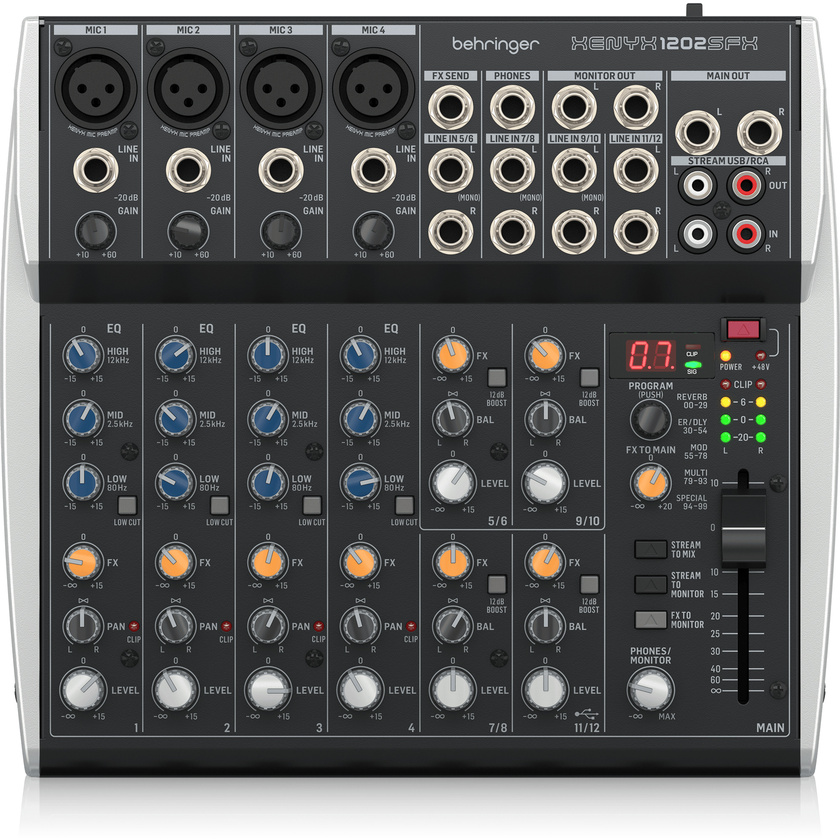

Behringer XENYX 1202 SFX Premium Analog 12-Input Mixer

Product #106195 | SKU XENYX1202SFX | Behringer
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
Our Price $309.00
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 3 - 5 working days. Deliver to Auckland for $14.00 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 5 working days
Click & Collect

Features

  • 12-Channel analogue mixer with USB interface
  • For streaming, podcasts and studio recording
  • 4 Microphone inputs
  • 4 Mono line inputs
  • 3 Stereo line inputs
  • 1 Stereo line input

Description

The Behringer XENYX 1202 SFX Premium Analog 12-Input Mixer features 12 inputs allowing you to effortlessly achieve premium-quality sound that’s perfect for streaming, podcasting or live applications. It provides a warm and ultra-musical sound thanks to its award-winning XENYX microphone preamps featuring 48V phantom power for connecting even hi-end studio microphones.

The XENYX “S” series can be connected to any computer or mobile device making it super easy to integrate digital sources with analog equipment. It can also be used as a versatile sub mixer for feeding network enabled audio devices with several other audio signals.

Four mono channels with EQ and Low Cut, plus 4 stereo channels, a stereo RCA streaming input and stereo USB input allow you to blend a total of 16 audio signals for streaming, monitoring via headphones or on high-quality TRS outputs. The mixer delivers crystal-clear audio for high-quality streaming, plus it comes with an amazing Klark Teknik FX processor with a hundred presets to add that extra spice to your mix.

The 1202SFX features level, panorama/balance and effect send controls on all channels and allows for precise sound shaping for any input source. Mono channels have additional Gain controls and 3-band EQ with switchable Low Cut, while stereo line-level channels offer a switchable 12 dB boost.

The FX send control per channel lets you use the internal stereo effects programs and/or plug in any external FX processor of your choice, such as the Behringer FX2000, for amazing audio effects flexibility. When nothing is plugged into the stereo line inputs 11/12, then the stereo 11/12 channel will receive the USB input signal and its control can be used to adjust the USB level conveniently.

Finally, a 60-mm Main fader ensures extremely smooth volume control of your output mix.

Key Features
  • 12-Channel analogue mixer with USB interface
  • For streaming, podcasts and studio recording
  • 4 Microphone inputs
  • 4 Mono line inputs
  • 3 Stereo line inputs
  • 1 Stereo line input

Specifications

Mono Inputs
Microphone Input Balanced XLR, discrete input circuit
Mic EIN (22 Hz-22 kHz) @ 50 Ω: 132 dB, A-weighted
Frequency response Gain +10 dB: 10 Hz to 150 kHz
Frequency response Gain +60 dB: 20 Hz to 70 kHz
Gain range: +10 dB to +60 dB
Max input level @ +10 dB Gain: +12 dBu
Input Impedance 2 kΩ balanced
Distortion (THD + N) 1 kHz
@ +10 dB Gain: 0.005%
Mono Line Inputs 1/4" TRS connector balanced
Impedance: 22 kΩ Balanced, 10 kΩ unbalanced
Gain range: -10 dB to +40 dB
Max input level @ 0 dB Gain: +21 dBu
Stereo Inputs
Stereo Line 1/4" TRS connector balanced
Frequency response: 20 Hz to 200 kHz
Impedance: 22 kΩ Balanced, 10 kΩ unbalanced
Max input level @ 0 dB Gain: +21 dBu
STREAM Inputs (Analog) RCA connector unbalanced
Impedance: 10 kΩ unbalanced
Max input level: 10 dBu
EQUALIZER
Low 80 Hz/±15 dB
Mid 2.5 kHz/±15 dB
High 12 kHz/±15 dB
Main, Monitor & FX Send Outputs
Type 1/4" TRS connector impedance-balanced
Impedance 120 Ω
Max output level 21 dBu
Phones Out
Type 1/4" TRS connector unbalanced
Impedance 23 Ω
Max output level 19 dBu/150 Ω
STREAM out (Analog)
Type RCA connector unbalanced
Impedance 1 kΩ unbalanced
Max output level 10 10 dBu
Main Mix noise
Main Mix @ -∞ -108 dBu A-weighted
Channel @ -∞ -108 dBu A-weighted
FX Section
Type Klark Teknik
Converter 24-bit Sigma Delta
Sample Rate 40 kHz
USB
Type Type-B connector
USB Audio Data 48 kHz 16 Bit
UAC2 Class Compliant stereo in/out

In The Box

  • Behringer XENYX1202SFX Premium Analog 12-Input Mixer

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Behringer XENYX 1202 SFX Premium Analog 12-Input Mixer
  • Manufacturer: Behringer
  • Model: XENYX1202SFX
  • SKU: XENYX1202SFX
  • RM Product #: 106195
  • Warranty: 3 year manufacturer warranty
