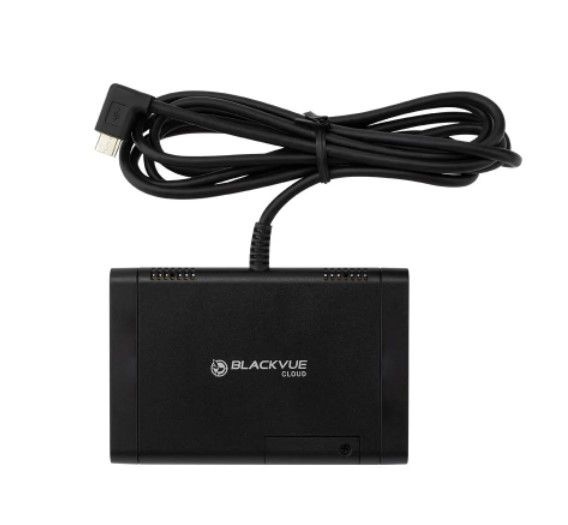

BlackVue CM100G LTE GPS Connectivity Module for DR970X and DR770X

Product #98717 | SKU CM100GLTE GL | BlackVue
In stock Ships Monday
Our Price $299
In stock Ships Monday
- +

this item may be nonreturnable
Shipping & Availability
Ships Monday. Deliver to Auckland for $12 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 working days
Click & Collect

Features

  • External 4G LTE Module
  • LTE Connectivity Module
  • USB Plug-in
  • For DR970X and DR770X modules

Description

The BlackVue CM100 LTE GPS Connectivity Module for DR970X AND DR770X connects to your compatible BlackVue X or X Plus Series dashcam to provide easy 4G LTE connectivity. All you need is a valid Nano SIM card. The CM100LTE connects via the USB port of your dashcam. Your BlackVue powers the module and automatically accesses the Cloud when the module is plugged in.

LTE Connectivity Module

With DR970X and DR770X models, you can connect the LTE Connectivity Module which is powered by the dashcam and provides 4G LTE connectivity for your dashcam. This allows you to connect your dashcam to BlackVue Cloud and receive notifications to your phone when your parked car gets hit. It also lets you remotely see what your dashcam sees in real time. Being powered by the dashcam, you do not need to worry about it running out of power like you might with a self-powered router.

Note: when purchasing, make sure the CM100GLTE you choose is compatible with your mobile carrier’s network. Not compatible with DR590X Series.

Specifications

Color/Size/Weight Black / Length 90 mm x Width 60 mm x Height 10 mm / 110g
LTE Module Quectel EC25
LTE Supported Band EC25-A : B2/B4/B12
EC25-J : B1/B3/B8/B18/B19/B26
EC25-E : B1/B3/B5/B7/B8/B20
LTE Features Support up to Non-CA CAT. 4 FDD
Support 1.4/3/5/10/15/20MHz RF Bandwidth
LTE-FDD : Max 150Mbps(DL) / Max 50Mbps(UL)
Transmitting Power Class 3 : 23dBm +/-2dBm @ LTE-FDD Bands
SIM Type Support Nano SIM Card / 3.0V
Connector Type Micro USB Type-B Connector with Harness Cable
USB Interface Compliant with USB 2.0 specification(Slave Only), Reach up to 480Mbps for data transfer rate
LTE Antenna Type Fixed / Intenna (Main, Diversity)
Power Supply USB Harness Cable : 3.0m
Typical Supply Voltage : 5.0V / 1A
Supply Input Voltage : 3.3V ~ 5.5V / Max. Current : 2A
Power Consumption Idle Mode : 30mA / Traffic Mode : 620mA @ Max. Power (23dBm)
Temperature Range Operation Temperature Range : -35°C ~ +75°C
Storage Temperature Range : -40°C ~ +85°C
Certifications CE, UKCA, FCC, ISED, RCM, TELEC, KC, WEEE, RoHS

In The Box

  • BlackVue CM100 LTE GPS Connectivity Module for DR970X AND DR770X

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: BlackVue CM100G LTE GPS Connectivity Module for DR970X and DR770X
  • Manufacturer: BlackVue
  • Model: CM100GLTE GL
  • SKU: CM100GLTE GL
  • RM Product #: 98717
  • Warranty: 1 year manufacturer warranty
