| Channel |
3CH |
| Highlights |
Full HD + Full HD + Full HD (Front + Rear + Interior), Cloud, Wi-Fi, Triple Sony Sensors, External GPS and LTE Module |
| Product Dimensions |

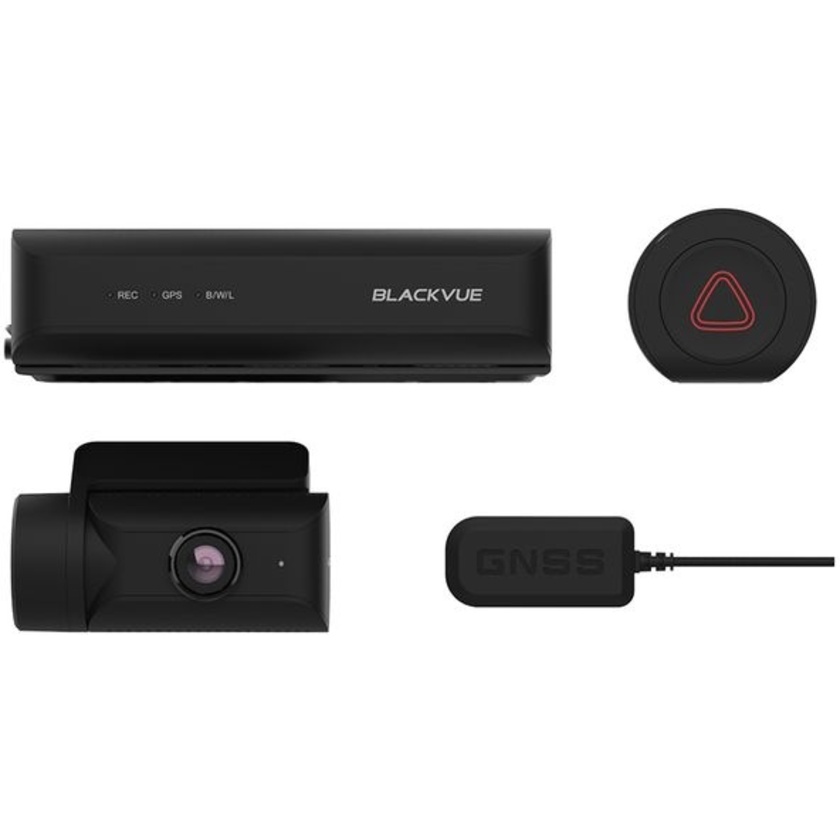

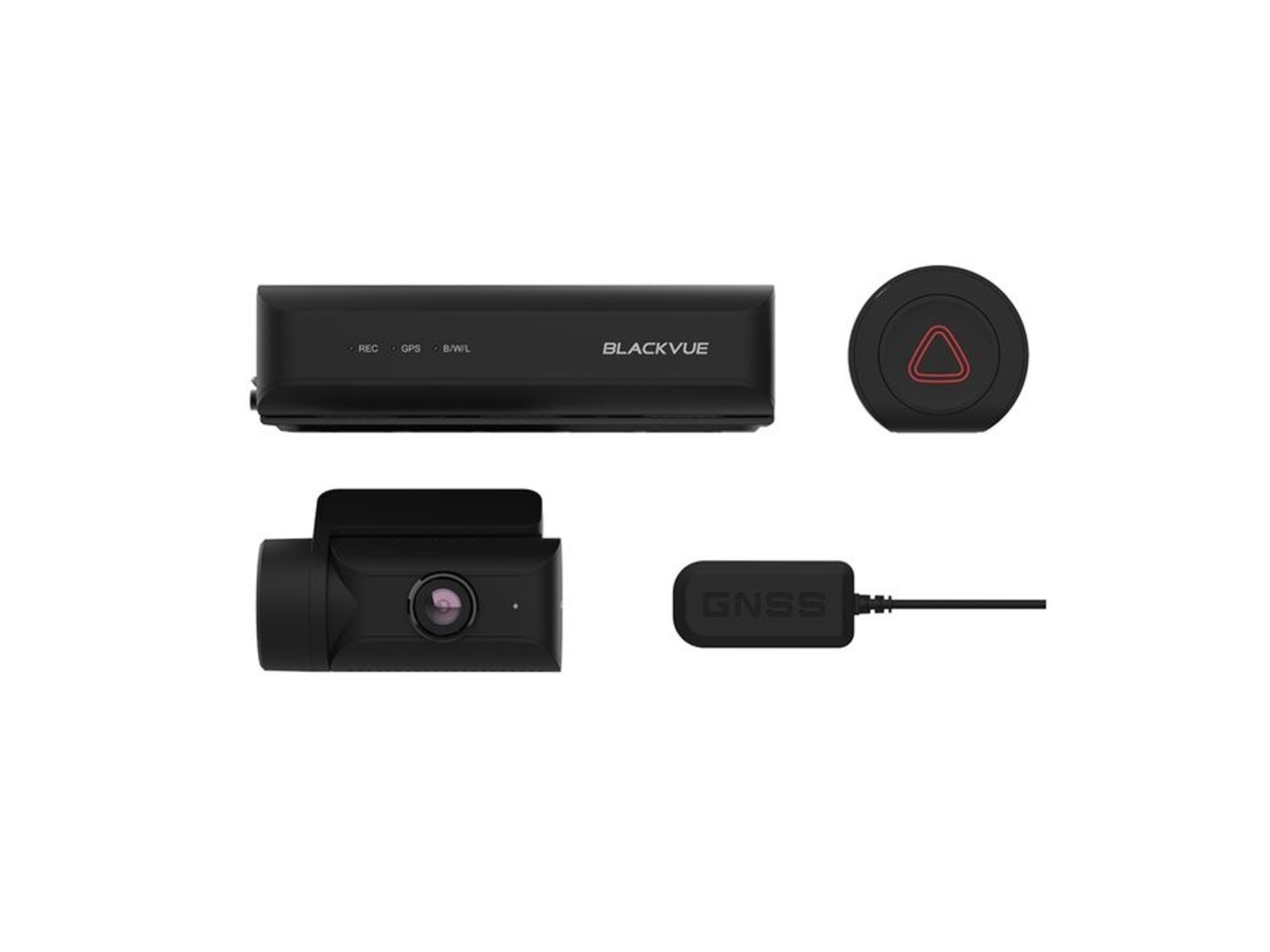

Main unit : Black / Length 130.0 mm x Width 101.0 mm x Height 33.0 mm / 209 g
Front : Black / Length 62.5 mm x Width 34.3 mm x Height 34.0 mm / 43 g
Wireless Button : Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 g |
| Memory Support |
microSD card up to 512GB |
| Recording Modes |
Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected)
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode. |
| Parking Mode |
YES (hardwiring cable included) |
| Parking Mode Event Voice Notifications |
YES |
| Imaging Sensor |
Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) |
| Viewing Angle |
Front : Diagonal 139°, Horizontal 116°, Vertical 61° |
| Resolution Frame Rate |
Front / Rear / Interior IR
Full HD (1920×1080) @ 60 fps – Full HD (1920×1080) @ 30 fps – Full HD (1920×1080) @ 30 fps
*Frame rate may vary during Wi-Fi streaming. |
| Video Codec |
H.264 (AVC) |
| Image Quality and Bitrate Front/Rear |
Front / Rear / Interior
Highest(Extreme): 16 + 10 + 10 Mbps
Highest: 12 + 10 + 10 Mbps
High 10 + 8 + 8 Mbps
Normal: 8 + 6 + 6 Mbps |
| Format Free |
YES (Adaptive) |
| Event File Overwrite Protection |
YES (up to 51) |
| SD Card Failure Alert |
YES |
| Scheduled Reboot |
YES |
| Video File Extension |
MP4 |
| Wi-Fi |
Built-in (802.11 b.g.n) |
| Cloud Compatible |
YES |
| GPS |
External (Dual Band : GPS, GLONASS) |
| Microphone |
Built-in |
| Speaker |
Built-in |
| Impact Sensor |
3-Axis Acceleration Sensor |
| LED Indicators |
Main unit : Recording LED, GPS LED, BT/Wi-Fi/LTE LED
Front : Front & Rear Security LED
Interior IR : Front&Rear Security LED
EB-1 : Operating/Battery low voltage LED |
| Rear Camera IR Illumination |
Interior IR : 940nm (2 Infrared (IR) LEDS) |
| Button |
EB-1 button : Press the button – manual recording. |
| Operation Temperature |
-20°C – 70°C (-4°F – 158°F ) |
| Storage Temperature |
-20°C – 80°C (-4°F – 176°F ) |
| High Temp Cut Off |
Approx. 80 °C (176 °F ) |
| Backup Battery |
Built-in supercapacitor |
| Input Power |
DC 12V-24V (3 pole DC Plug(Ø3.5 x Ø1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption Hour |
Normal Mode (GPS On / 3CH) : Avg. 730mA / 12V
Parking Mode (GPS Off / 3CH) : Avg. 610mA / 12V
* Approx. 40mA increase in current when Interior Camera IR LEDs are ON.
* Approx. 60mA increase in current when Rear Truck Camera IR LEDs are ON.
* Actual power consumption may vary depending on use conditions and environment. |
| Certifications |
Front (with Main unit & EB-1) : FCC, IC, CE, UKCA, RCM, Telec, WEEE, RoHS
Rear,Rear Truck & Interior IR : KC, FCC, IC, CE, UKCA, RCM, WEEE, RoHS |
| Software |
BlackVue Viewer
* Windows 7 or higher, Mac Sierra OS X (10.12) or higher
BlackVue Web Viewer
* Chrome 71 or higher, Safari 13.0 or higher |
| Application |
BlackVue Application
* Android 8.0 or higher, iOS 13.0 or higher |
| Others |
Adaptive Format Free File Management System
Advanced Driver Assistance System
LDWS (Lane Departure Warning System)
FVSA (Forward Vehicle Start Alarm) |
| Bluetooth |
Built-in (V2.1+EDR/4.2) |
| LTE |
External (optional) |
