Get 12G-SDI and HDMI video playback from your Thunderbolt™ laptop or desktop computer. The Blackmagic Design UltraStudio Mini Monitor 12G supports broadcast quality 10-bit SDI and HDMI video outputs from popular editing software such as DaVinci Resolve or broadcast graphics software using the 10-bit fill and key outputs. UltraStudio Mini Monitor 12G has multi-rate HDMI and 12G-SDI connections which support HD for broadcast video use as well as the latest Ultra HD video standards up to 2160p60.

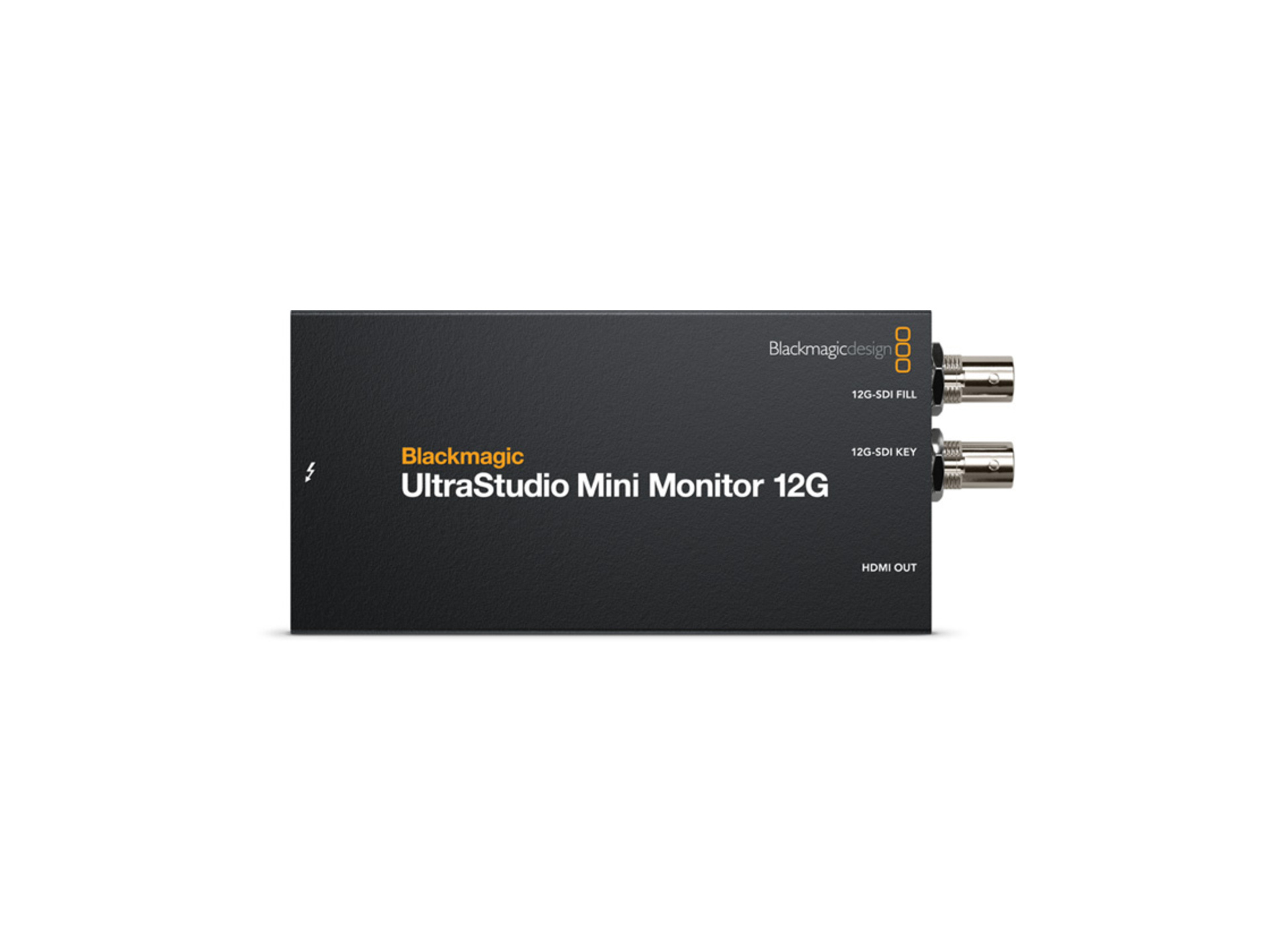

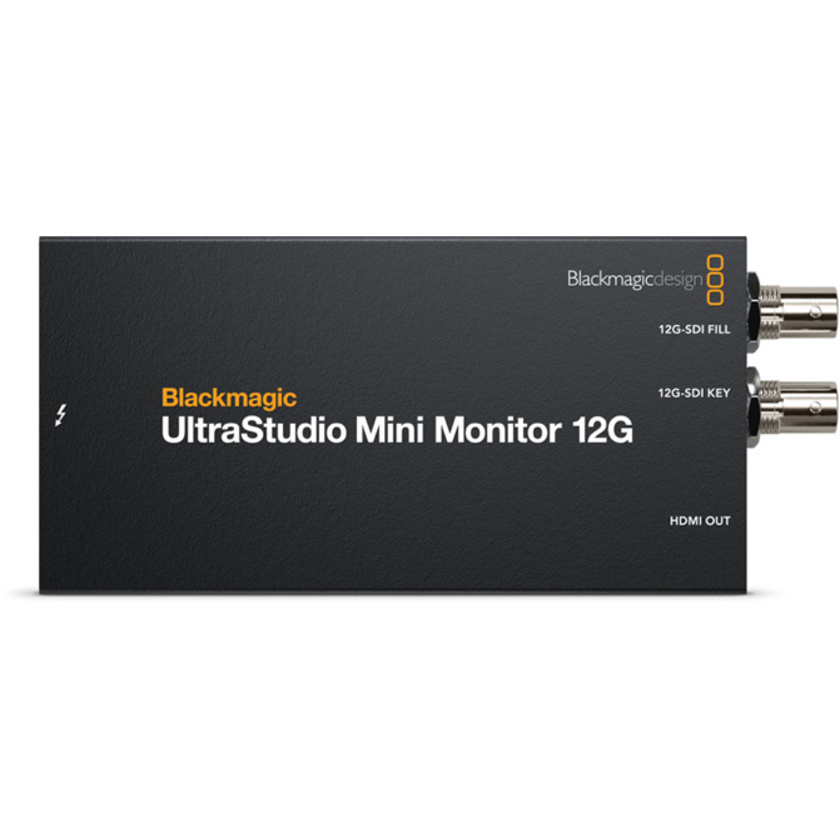

Blackmagic Design UltraStudio Mini Monitor 12G
In stock Ships tomorrow
Shipping & Availability
Ships tomorrow.
Deliver to
Auckland
for $5.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
1 - 2 working days
Click & Collect
Features
- Thunderbolt computer video playback output
- 12G-SDI and HDMI connections
- Supports 10-bit broadcast-quality video
- Works with editing and graphics software
- Fill and key output supported
- Supports HD and 2160p60 Ultra HD
Description
Specifications
| Connections | |
| SDI Video Outputs | 2 |
| SDI Fill Outputs | 1 |
| SDI Key Outputs | 1 |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G. |
| SDI Audio Outputs | 16 channels embedded audio on SDI output. |
| HDMI 2.0 Video Outputs | 1 |
| HDMI Audio Outputs | 8 channels embedded audio on HDMI output. |
| Computer Interface | Thunderbolt 4 (Mac OS Apple Silicon Macs, Windows and Linux) |
| Supported Codecs | |
| Video Codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4. |
| Software | |
| Software Included | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. |
| Internal Software Upgrade | Firmware built into software driver. Software driver loads upgrades at system start or via updater software. |
| SDI Video Standards | |
| SDI Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| 2K Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE ST2108-1 |
| SDI Metadata Support | RP 188/SMPTE 12M-2 and closed captioning. |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit. |
| SDI Video Sampling | 4:2:2, 4:4:4 |
| SDI Color Precision | 8, 10, 12-bit RGB 4:4:4 up to 2160p30, and 8, 10-bit YUV 4:2:2 in all standards. |
| SDI Color Space | Rec. 601, Rec. 709 and Rec. 2020. |
| HDR Support | HDR static metadata packing, HLG and PQ transfer characteristics. |
| Multiple Rate Support | SDI video connection is switchable between SD, HD, 2K, Ultra HD and 4K. |
| HDMI Video Standards | |
| SDI Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI |
| HDMI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| HDMI Video Sampling | 4:2:2 and 4:4:4 |
| HDMI Color Precision | 8, 10 and 12-bit RGB 444, 8-bit YUV 444* and 12-bit YUV 422* in all standards *converted from 10-bit YUV 422 |
| HDMI Configuration | HDMI 2.0 supports Deep Color. |
| HDMI Color Space | Rec. 601, Rec. 709 and Rec. 2020. |
| HDR Support | HDR static metadata packing, HLG and PQ transfer characteristics. |
| Multiple Rate Support | HDMI video connection is switchable between SD, HD, Ultra HD and 4K. |
| Hardware Frame Buffer | 2vuy (8-bit YUV), ARGB, BGRA (8-bit RGB), Ay10 (10-bit YUVA), r210 (10-bit RGB), v210 (10-bit YUV), R12B, R12L (12-bit RGB). |
| Processing | Colorspace Conversion Hardware based real time. |
| Operating Systems | |
| iOS | Mac 15.0 Sequoia Mac 26.0 Tahoe or later. |
| Windows | Windows 10, 64-bit. Windows 11. |
| Linux | Yes |
| Power Input | Powered by Thunderbolt cable. Requires computer with a Thunderbolt 4 USB-C port. |
| Power Usage | 15 W |
| Physical Installation | Works with Apple Silicon Macs and Thunderbolt 4 / Thunderbolt 5 PCs. |
| Environmental Specifications | |
| Operating Temperature | 5° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
In The Box
- Blackmagic Design UltraStudio Mini Monitor 12G
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Blackmagic Design UltraStudio Mini Monitor 12G
- Manufacturer: Blackmagic
- Model: Mini Monitor 12G
- SKU: BDLKULSDZMINMON12G
- RM Product #: 127042
