The Cerwin Vega CVPM1000.1D 1 Channel Mini-Series Mono Amplifier makes owning a Cerwin-Vega Mobile sound system very affordable for those that are budget-conscious. With a numerous amount of mono and multi-channel amplifiers to select from at a tremendous value for the performance, enjoy the LOUD sound experience with CVP Performance series products. The right price, the right power, the right products!

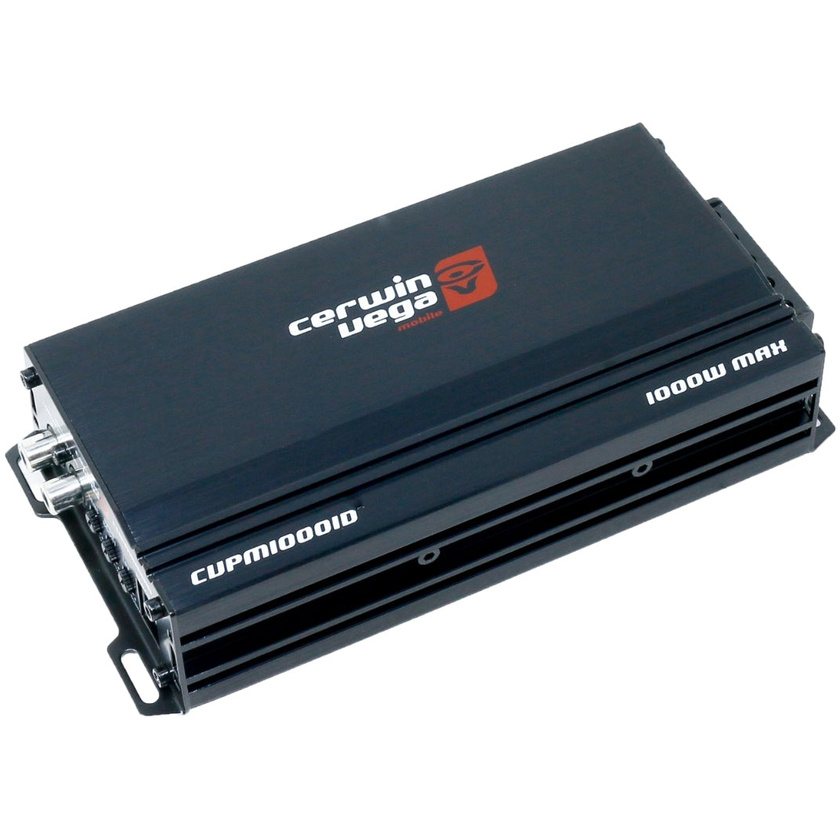

Cerwin Vega CVPM1000.1D 1 Channel Mini-Series Mono Amplifier
In stock Ships Monday
Our Price
$289
In stock Ships Monday
this item may be nonreturnable
Shipping & Availability
Ships Monday.
Deliver to
Auckland
for $8.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
2 - 3 working days
Click & Collect
Features
- MINI 1-Channel
- 500W x 1 @ 2 ohm RMS
- 350W x 1 @ 4 ohm RMS
- 15-500Hz Frequency Response
- IRS2092 Main Power Chip
- Low Pass Crossover 30Hz~500Hz
Description
Specifications
| Amplifier | 1 Channel |
| MAX Power Rating | 1000W MAX |
| RMS Bridge (mono 2 ohm) | 500W x 1 @ 2 ohm RMS |
| RMS Bridge (mono 4 ohm) | 310W x 1 @ 4 ohm RMS |
| Types | 1-Channel |
| Topology | Full-Range Class D |
| Power Supply | Full PWM |
| Power Supply (Threshold) | 10.0VDC - 17.0VDC |
| Idle Current | (0.7A) |
| Distortion - THD (1KHz @ 4 ohm) | 0.1% |
| Distortion - S/N Ratio (A weight @ 1W) | -85dBA |
| Distortion - S/N Ratio (A weight @ FP) | -101.1dBA |
| Input Sensitivity | 0.15V - 6.0V |
| Input Impedance - Low Input Level | 20 K ohm |
| Output Impedance | 0.0297 ohm |
| Damping Factor (50Hz @ 4 ohm) | >70 |
| Bandwidth (-3dB) | 10Hz-45KHz |
| Crossover (-12 dB/ Oct) Variable High-Pass | N/A |
| Crossover (-12 dB/ Oct) Variable Low-Pass | 35Hz-500Hz |
| Crossover (-12 dB/ Oct) Variable Sub-Sonic | N/A |
| FUSE Ratings - ATC | 2 x 30A |
| Dimension | 194 x 95 x 37.3mm |
In The Box
- Cerwin Vega CVPM1000.1D 1 Channel Mini-Series Mono Amplifier
