The Cerwin Vega CVPRO2K4 4-Channel Class D Amplifier quenches the thirst of those power-hungry subwoofers that call for enormous power to make the ground pound. Designed and engineered to generate maximum power output, the CV PRO series amplifiers delivers 3000W to 5000W of raw power that will produce bass mayhem and make your subwoofers flex and shiver like never before. For the ultimate SPL experience, you cannot go wrong with CV PRO series amplifiers!

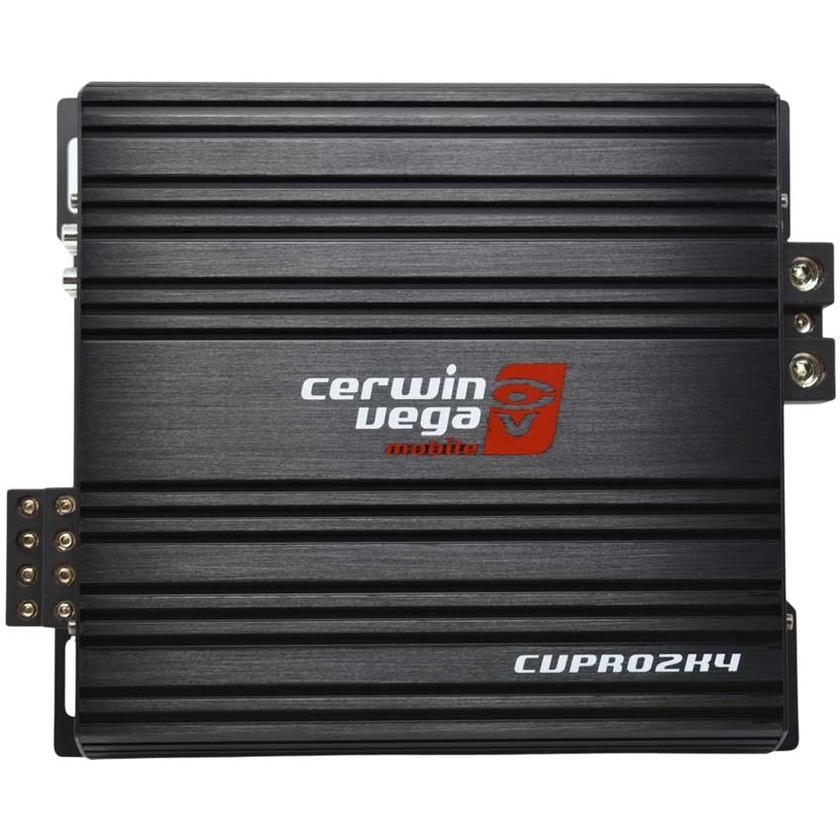

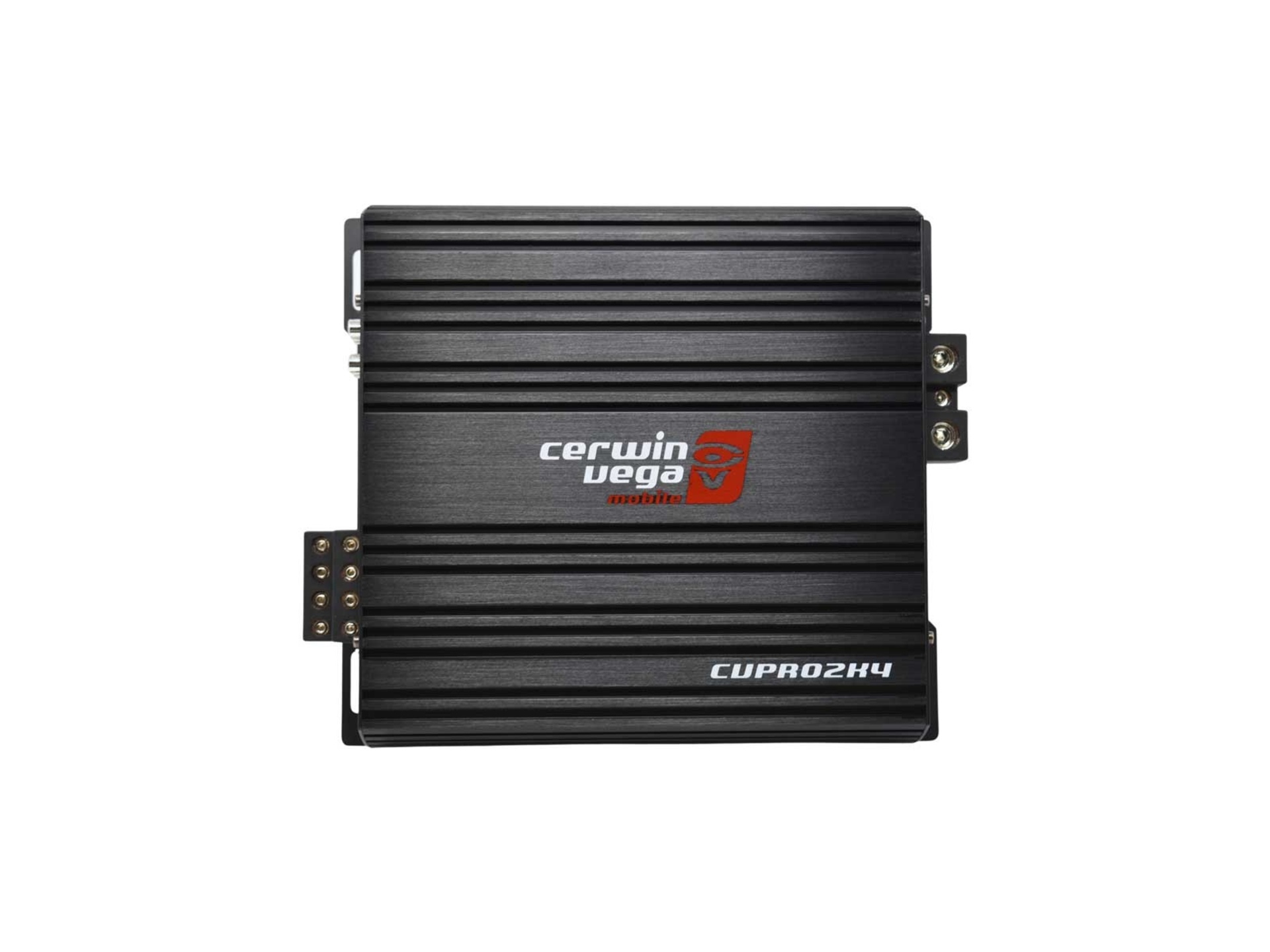

Cerwin Vega CVPRO2K4 4-Channel Class D Amplifier
In stock Ships Monday
Our Price
$669
In stock Ships Monday
this item may be nonreturnable
Shipping & Availability
Ships Monday.
Deliver to
Auckland
for $15
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
2 - 3 working days
Click & Collect
Features
- 325W x 4 @ 4 ohm
- 520W x 4 @ 2 ohm
- 1035W x 2 @ 4 ohm BRIDGED
- 15-20KHz Frequency Response
- LPF Filter 47-56KHz
- 12dB Crossover Slope
Description
Specifications
| Amplifier | 4 Channel |
| MAX Power Rating | 1000 W MAX |
| RMS Power(2 ohm) | 520 |
| RMS Power (4 ohm) | 325 |
| Topology | Full-Range Class D |
| Frequency Response | 15-20KHz |
| Power Supply | Full PWM |
| Power Supply (Threshold) | 10.0VDC - 17.0VDC |
| Idle Current | (2.6A) |
| Distortion - THD (1KHz @ 4 ohm) | 0.1% |
| Distortion - S/N Ratio (A weight @ 1W) | -90dBA |
| Distortion - S/N Ratio (A weight @ FP) | -105dBA |
| Input Sensitivity | 0.2V - 5.0V |
| Input Impedance - Low Input Level | 20 KO |
| Output Impedance | TBD |
| Damping Factor (50Hz @ 4 ohm) | >150 |
| Bandwidth (-3dB) | 15Hz-20KHz |
| LPF Filter | 47-56KHz |
| Crossover (-12 dB/ Oct) Variable High-Pass | 50Hz-6KHz |
| Crossover (-12 dB/ Oct) Variable Low-Pass | 15Hz-6KHz |
| Crossover (-12 dB/ Oct) Variable Sub-Sonic | 15Hz-1KHz |
| FUSE Ratings - ATC | 150A |
| Dimensions | 265 x 225 x 66.5mm |
In The Box
- Cerwin Vega CVPRO2K4 4-Channel Class D Amplifier
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Cerwin Vega CVPRO2K4 4-Channel Class D Amplifier
- Manufacturer: Cerwin Vega
- Model: CVPRO2K4
- SKU: CVPRO2K4
- RM Product #: 117827
