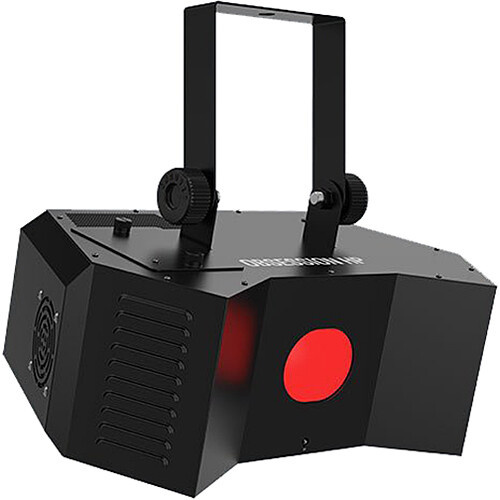

Chauvet DJ Obsession HP Compact LED Gobo Projector

Product #104538 | SKU OBSESSION HP | Chauvet
Usually ships in 2 - 3 weeks what does this mean?
Our Price $679
Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to Auckland for $17 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • Bright 100W Cool-White LED
  • Interchangeable Gobos for Flexibility
  • Rotating Gobo Wheel + Mirror Dish
  • Sync 2 Units with Master/Slave Mode
  • Separate Colour and Gobo Wheels
  • Power Link Multiple Units for Fast Setup

Description

Create eye-popping, animated gobo light shows with the Chauvet DJ Obsession HP Compact LED Gobo Projector, a compact LED effect light fitted with a 100W LED that projects multi-coloured, rotating gobos. Obsession HP’s design power and flexibility reaches new heights because gobos are interchangeable and the onboard mirror dish and separate color and gobo wheels easily generate complex lighting looks. Generate a synchronised show in Master/Slave mode with up to 2 units and save time running cables and extension cords by power linking multiple units. Obsession HP is compatible with IRC-6 for flexible control over all features and fits best in the CHS-40 VIP Gear Bag (sold separately).

Key Features
  • Compact LED effect light fitted with a 100W LED projects multi-coloured, rotating gobos
  • Increase design flexibility and effects with inter-changeable gobos
  • Easily generate complex looks using the rotating gobo wheel plus mirror dish
  • Generate a synchronized show in Master/Slave mode with up to 2 units
  • Separate color and gobo wheels allow for creative programming
  • Quickly and easily change gobos using the easy-access gobo door
  • Includes 10 popular holiday gobos
  • Compatible with IRC-6 for flexible control over all features
  • Save time running cables and extension cords by power linking multiple units
  • Fits best in the CHS-40 VIP Gear Bag (sold seperately)
  • Includes 10 popular holiday gobos

Specifications

Light
Fixture Type Gobo Projector
Light Source 1 x White LED - 100 W
Light Source Life Expectancy 50,000 Hours
Colours White, Red, Green, Blue, Yellow, Amber, Magenta
Beam Angle 116°
Shutter / Strobe Electronic
Dimming Electronic, 0 to 100%
Performance
Operating Modes Automatic, DMX, Primary/Secondary, Sound-Active, Standalone
Macros / Programmes None
Effects None
Strobe Rate 0 to 20 Hz
Gobos 7 x Removable Gobo
Gobo Size Outer Diameter: 0.7" / 18.6 mm
Max Image Size: 0.5" / 12 mm
Max Thickness: 0.2" / 5 mm
Control
Control Protocols DMX512
DMX Channel Modes 2 Mode(s):
2 / 8-Channel
Display / Controls LCD / 4-Button
Remote Control IR Remote (with Optional Equipment)
Connectivity
Inputs/Outputs 2 x XLR 3-Pin DMX Input/Output
Power
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector Input: 1 x IEC
Output: 1 x Edison
Power / Current Consumption 120 VAC, 60 Hz: 176 W / 2.2 A
230 VAC, 50 Hz: 171 W / 1.3 A
Power Linking 3 Units at 120 VAC
6 Units at 230 VAC
Environmental
IP Rating None
Environmental Protection None
Operating Temperature 104°F / 40°C
Physical
Mounting Mounting Bracket
Duty Cycle None
Exterior Colour Black
Dimensions 15 x 12 x 8.26" / 38.1 x 30.5 x 20.98 cm
Weight 10.2 lb / 4.6 kg

In The Box

  • CHAUVET DJ Obsession HP Compact LED Gobo Projector
  • Gobo Wheel with 10 Holiday Gobos
  • Power Cord
