The CineTreak CT-4 4K 4-Channel HDMI to USB Capture Device takes four HDMI I/O connections and links them to a single USB-C UVC output on your personal computer for streaming through a wide range of software. The device supports video resolutions up to DCI 4K60 and also includes a line input port, allowing you to add a microphone to your setup. Multiple power ports, including a USB-C DC output and a USB-C 100 W PD charging port, make integrating the CT-4 into your existing configuration intuitive and straightforward. The CT-4 is compatible with OBS, vMix, and Zoom, as well as mobile apps such as V Director Recording.

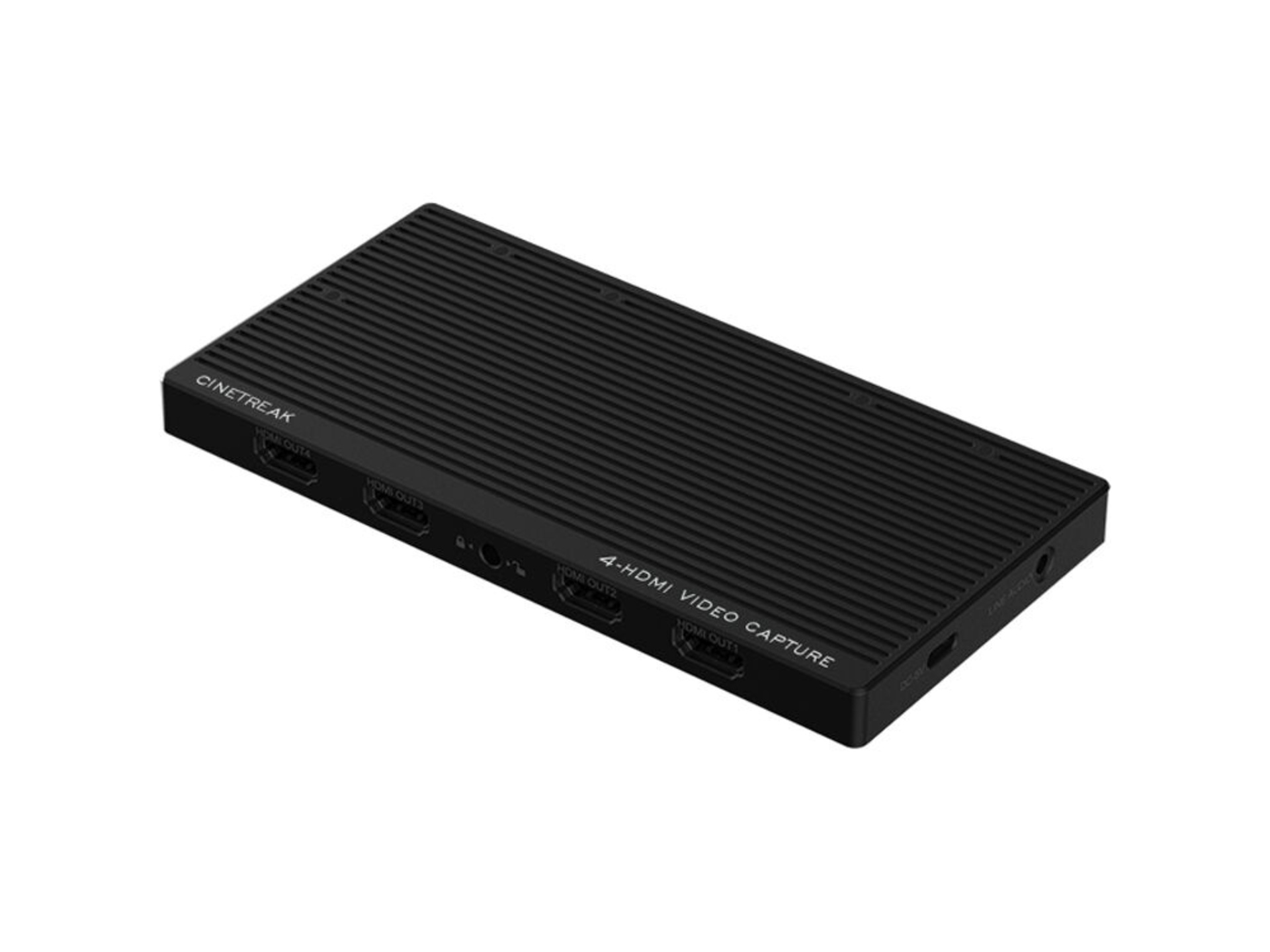

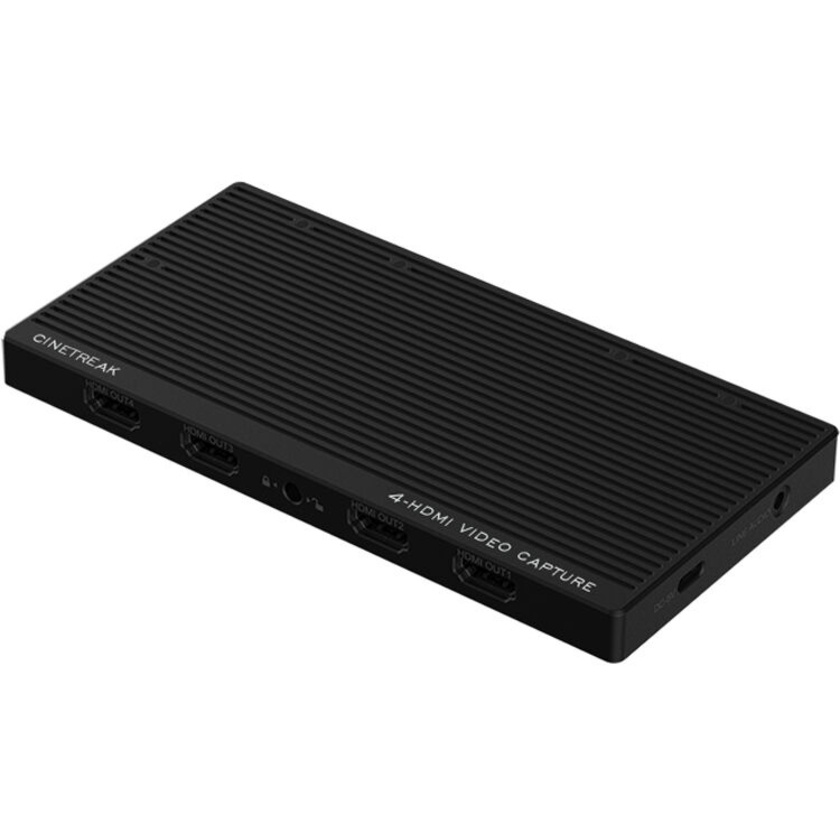

CineTreak CT-4 4K 4-Channel HDMI to USB Capture Device
Usually ships in 1 - 2 weeks
Our Price
$399
Usually ships in 1 - 2 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 1 - 2 weeks.
Deliver to
Auckland
for $6.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
1 - 2 weeks
Click & Collect
Features
- Four HDMI I/O, USB-C UVC Output
- Supports up to DCI 4K60 Video
- Audio Line Input
- DC Output, 100W PD Charging Port
- Compatible with OBS, vMix, and Zoom
Description
Specifications
| Inputs/Outputs | |
| System Connection | USB-C 3.1/3.2 Gen 2 |
| Video I/O | Input 4x HDMI Output 4x HDMI 1x USB-C |
| Audio I/O | Input 1x 1/8" / 3.5 mm TRS |
| Format Support | |
| Video Resolution | HDMI Input (4:4:4/4:2:0 YUV) 4096 x 2160 at 30/60 fps HDMI Output (4:2:0 YUV) 4096 x 2160 at 30/60 fps USB-C Output (4:2:0 YUV) 3840 x 2160 at 30 fps USB-C Output 4096 x 2160 at 60 fps |
| Audio Format | Analogue Input |
| Standards | |
| HDCP Support | No |
| HDR Support | No |
| Hardware | |
| OS Compatibility | Windows Android 5 or Later macOS |
| Power | |
| Power I/O | 1x USB-C (5 VDC at 2 A) Output 1x USB-C Input |
| General | |
| Operating Conditions | -4 to 122°F / -20 to 50°C |
| Storage Conditions | -4 to 176°F / -20 to 80°C |
| Dimensions | 6.5 x 3.2 x 0.5" / 165 x 82 x 13 mm |
| Weight | 7.8 oz / 220 g |
In The Box
- CineTreak CT-4 4K 4-Channel HDMI to USB Capture Device
- USB-C 3.2 Gen 2 Data Cable
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: CineTreak CT-4 4K 4-Channel HDMI to USB Capture Device
- Manufacturer: Cinetreak
- Model: CT-4
- SKU: CT-4
- RM Product #: 126887
