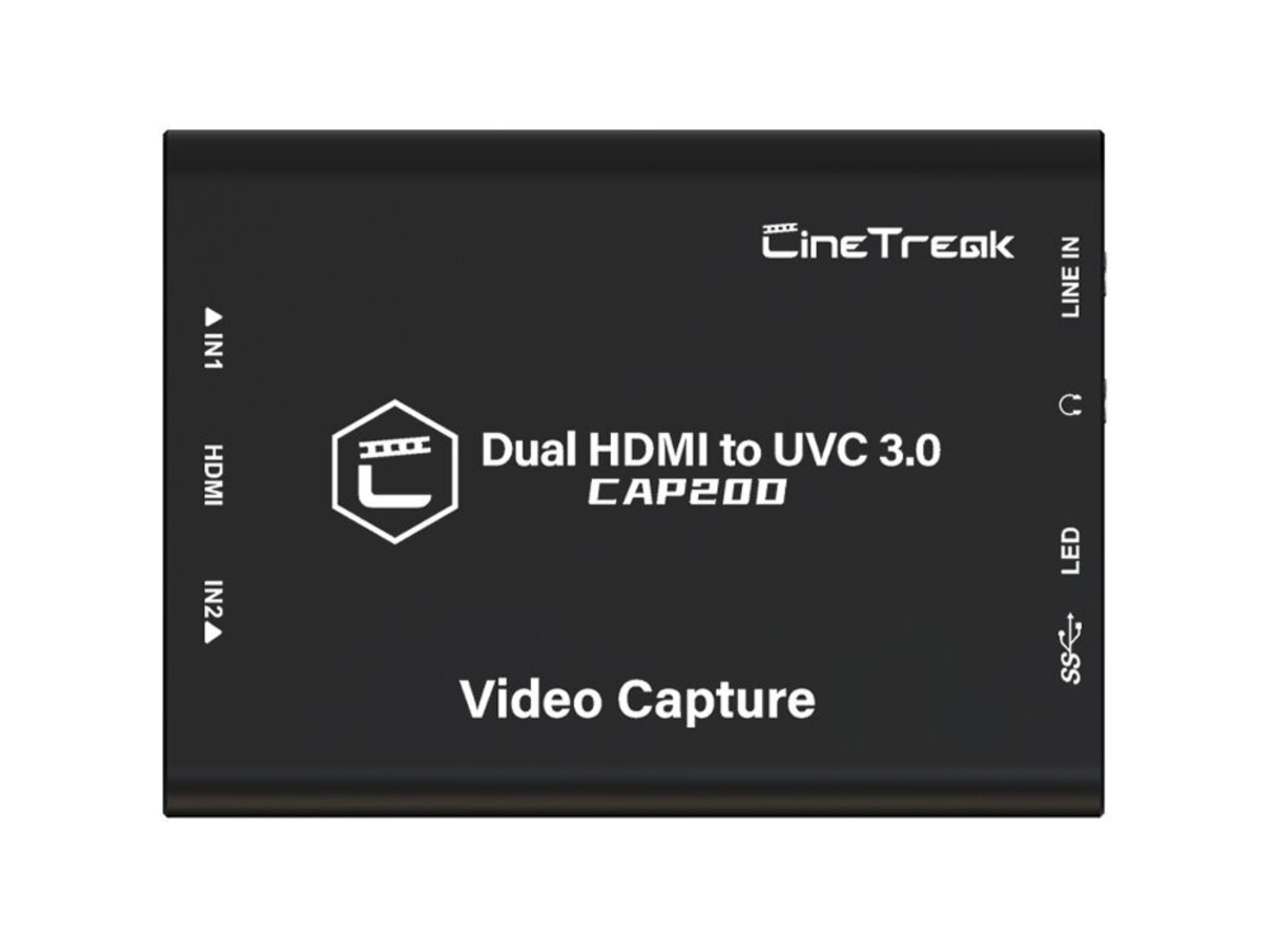

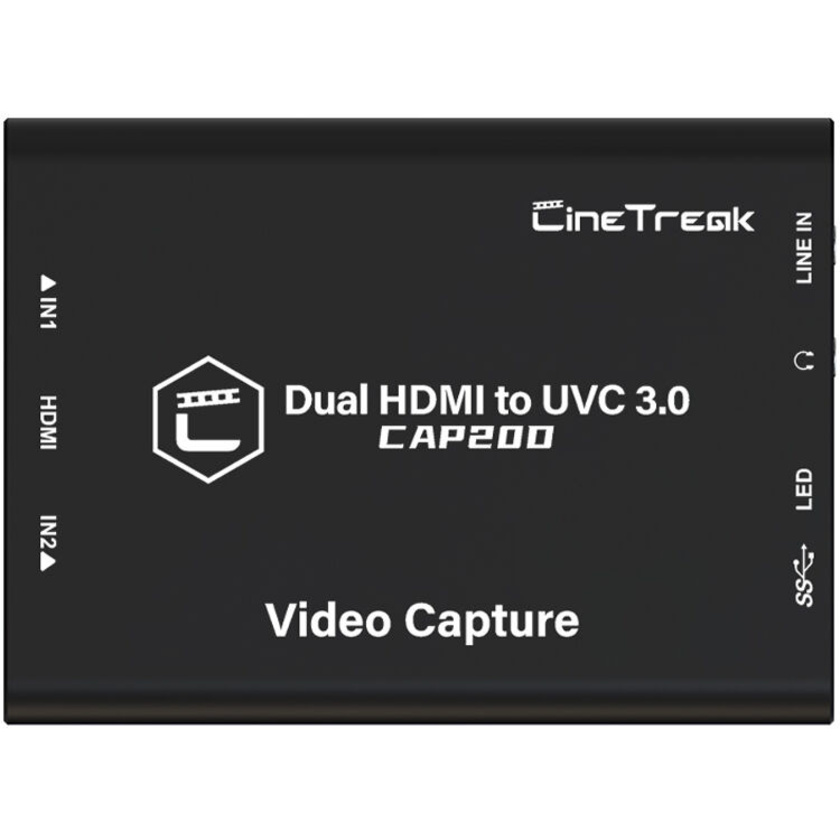

CineTreak Dual HDMI to USB 3.0 Video Capture Device

Name: CineTreak Dual HDMI to USB 3.0 Video Capture Device
Brand: Cinetreak
SKU: 126890
Price: 419.00 NZD
Availability: BackOrder

Product #126890 | SKU CAP20D | Cinetreak

| Write a review

Usually ships in 1 - 2 weeks what does this mean?

CineTreak Dual HDMI to USB 3.0 Video Capture Device

Our Price $419

Usually ships in 1 - 2 weeks what does this mean?

Email me when stock arrives

Request price match

Talk to our experts

Shipping & Availability

Usually ships in 1 - 2 weeks. Deliver to Auckland for $6^.90 Change location

Click & Collect

Check availability

Features

HDMI to USB 3.0 Video & Audio Convertor
Up to 1080p60 Input & Output
Dual HDMI Input for PiP, PbP Layouts
Built-In Chroma Key, Transitions
3.5mm Audio I/O for Embed/Monitoring
UVC/UAC Control, 3D LUT Support

Description Specifications In The Box

Description

Convert your HDMI video content to USB video using the CineTreak Dual HDMI to USB 3.0 Video Capture Device. This capture device enables you to convert an HDMI video signal along with embedded audio to your computer via USB-A 3.0. It packs numerous features into its compact form, including PiP and PbP functions, 3D LUTs, UAC/UVC control, image flip, chroma key, transitions, and more.

It supports HDMI input and USB 3.0 output of uncompressed resolutions up to 1080p60. The 3.5 mm audio input allows you to embed audio into your output or pass audio through to the 3.5 mm port for monitoring.

Specifications


Inputs/Outputs
System Connection	USB-A 3.0 / 3.1/3.2 Gen 1
Video I/O	Input 2x HDMI 2.0 Female
Audio I/O	Input 1x 1/8" / 3.5 mm TRS Stereo Analogue Female 1x 1/8" / 3.5 mm TRS Stereo Analogue Female (Loop Output)
Format Support
Video Resolution	HDMI Input 2048 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080i at 50/60 fps 1280 x 720 at 23.98/24/25/29.97/30/50/59.94/60 fps 720 x 576p 720 x 576i 720 x 480p 720 x 480i USB-A Output 1920 x 1080 1600 x 1200 1360 x 768 1280 x 1024 1280 x 720 1280 x 960 1024 x 768 800 x 600 720 x 480 720 x 576 640 x 480
Embedded Audio	HDMI/USB: 3-Channel
Power
Power I/O	1x USB-A (5 VDC ) Input
General
Operating Conditions	32 to 122°F / 0 to 50°C
Storage Conditions	32 to 122°F / 0 to 50°C
Dimensions	4.1 x 3 x 1" / 104 x 76 x 25 mm
Weight	6.6 oz / 188 g
