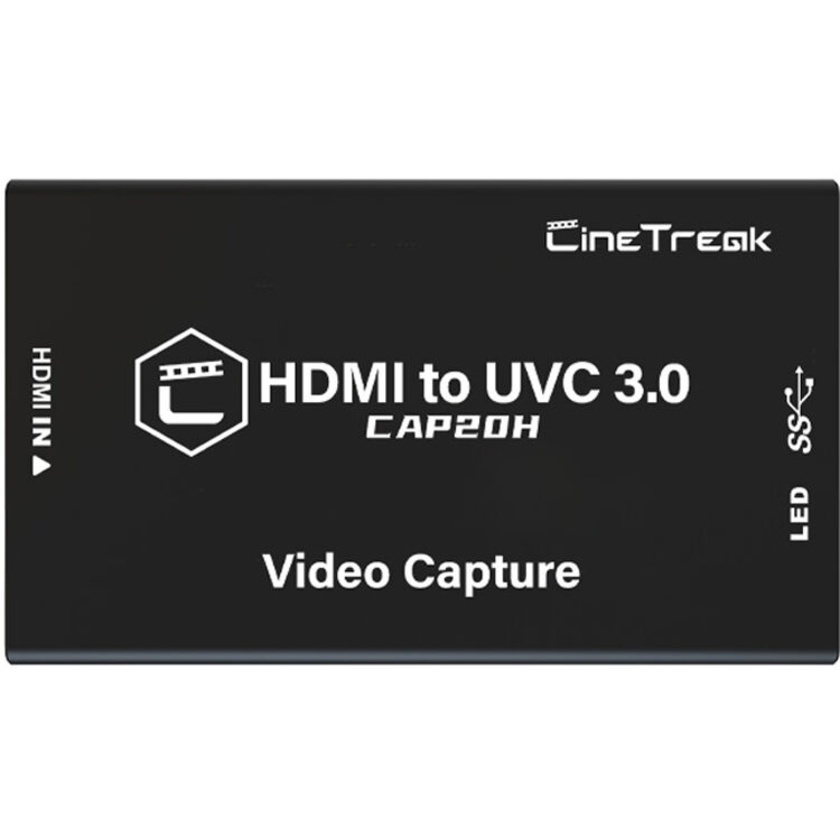

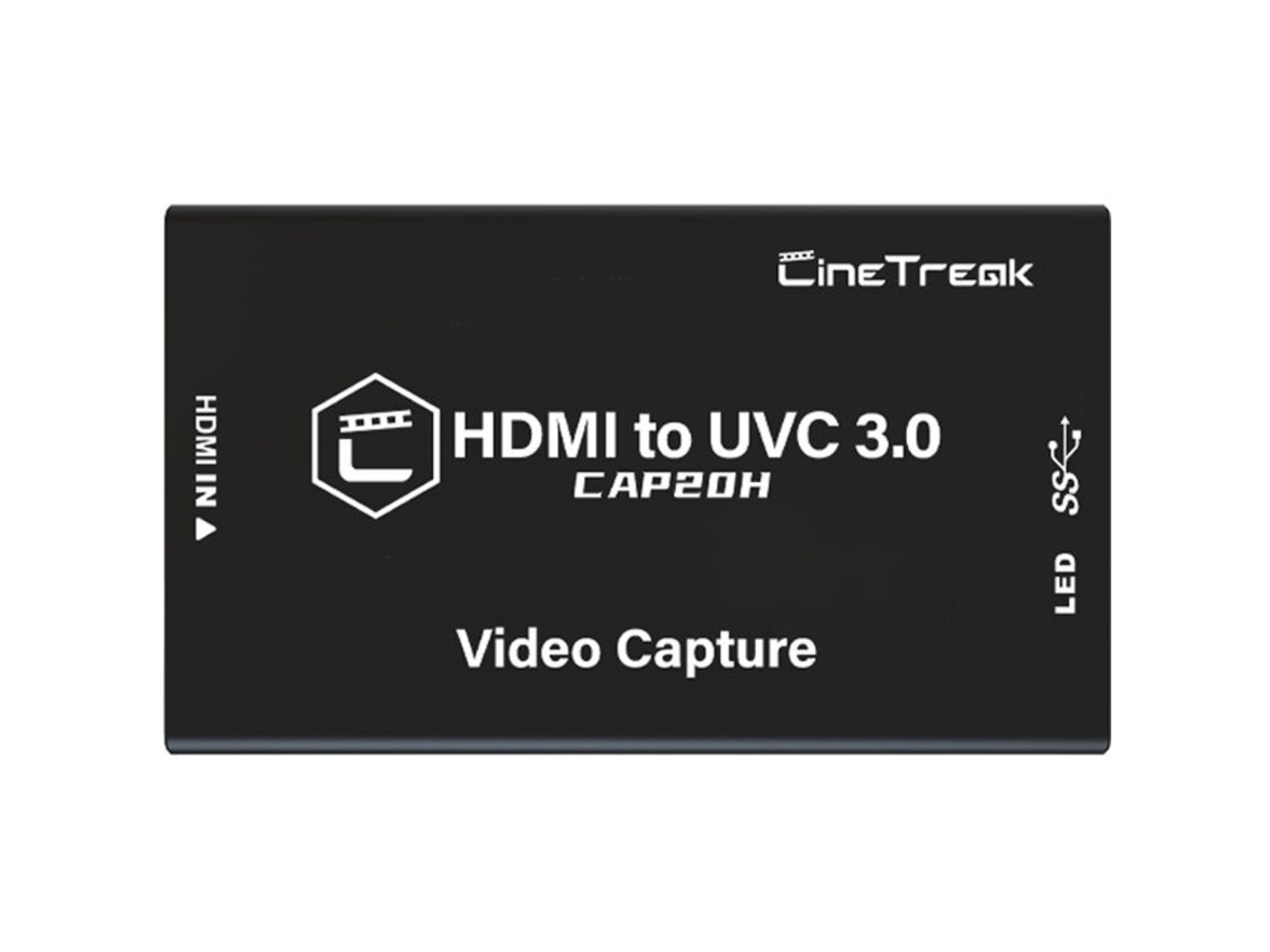

Convert your HDMI video content to USB video with the CineTreak HDMI to USB 3.0 Video Capture Device. This capture device lets you send one HDMI video signal, along with embedded audio, to your computer through USB-A 3.0.
The device supports HDMI input resolutions up to 4K30 and delivers uncompressed output resolutions up to 1080p60 over USB 3.0. Its plug-and-play design offers compatibility with popular streaming applications such as OBS, XSplit, and more, with no additional drivers required.
| Inputs/Outputs | |
| System Connection | USB-A 3.0 / 3.1/3.2 Gen 1 |
| Video I/O | Input 1x HDMI 2.0 Female |
| Audio I/O | No |
| Format Support | |
| Video Resolution | HDMI Input 4096 x 2160 up to 30 fps 3840 x 2160 up to 30 fps 2048 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080i at 50/60 fps 1280 x 720 at 23.98/24/25/29.97/30/50/59.94/60 fps 720 x 576p 720 x 576i 720 x 480p 720 x 480i USB-A Output 1920 x 1080 1600 x 1200 1360 x 768 1280 x 1024 1280 x 720 1280 x 960 1024 x 768 800 x 600 720 x 480 720 x 576 640 x 480 |
| Embedded Audio | HDMI/USB: 3-Channel |
| Power | |
| Power I/O | 1x USB-A (5 VDC ) Input |
| General | |
| Operating Conditions | 32 to 122°F / 0 to 50°C |
| Storage Conditions | 32 to 122°F / 0 to 50°C |
| Dimensions | 3 x 1.7 x 1" / 75.5 x 43 x 25 mm |
| Weight | 2.8 oz / 80 g |
