Expand your cinematography toolkit by incorporating FPV capabilities to your existing non-FPV drone using the cutting-edge DJI O4 Air Unit Pro. This innovative device comes equipped with a camera module and dual antennas, seamlessly attaching to drone frames as compact as 2 inches. By pairing the O4 Air Unit Pro with DJI Goggles (sold separately), you can unlock the potential of DJI's pioneering O4 transmission system, allowing for the streaming of immersive real-time video in stunning 1080p quality at 100 frames per second, all the way from distances of up to 9.3 miles. Elevate your aerial footage with the dynamic Racing Mode feature, drastically reducing latency to an impressive 15 ms for smoother and more engaging first-person videography experiences. The 1/1.3" CMOS sensor within the camera module is capable of capturing breathtaking 4K120 footage across a wide 155° ultrawide field of view, ensuring that every detail is preserved. With both 4GB of internal storage and support for external microSD cards up to 512GB, you'll have ample space to store all your high-quality footage.

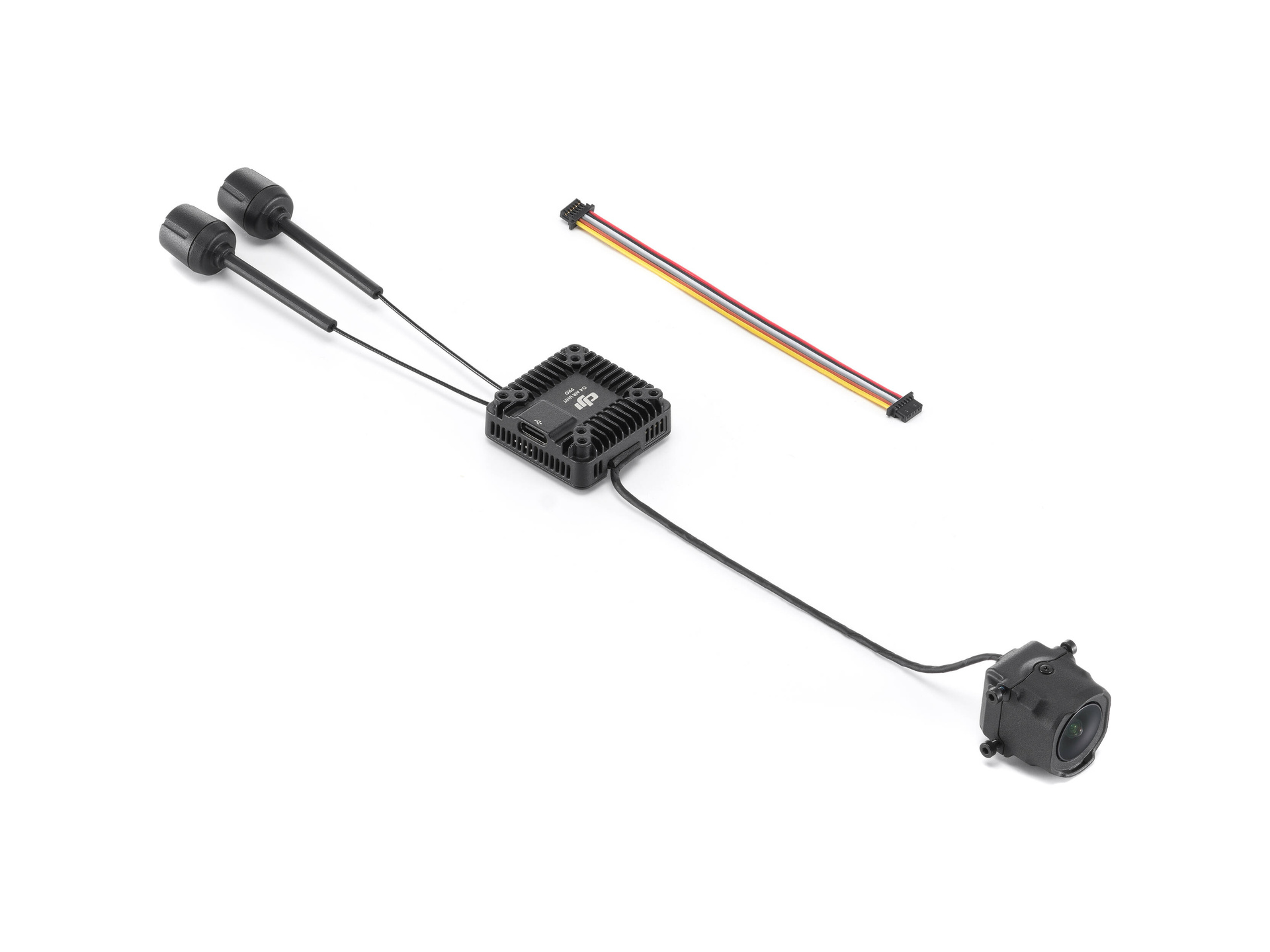

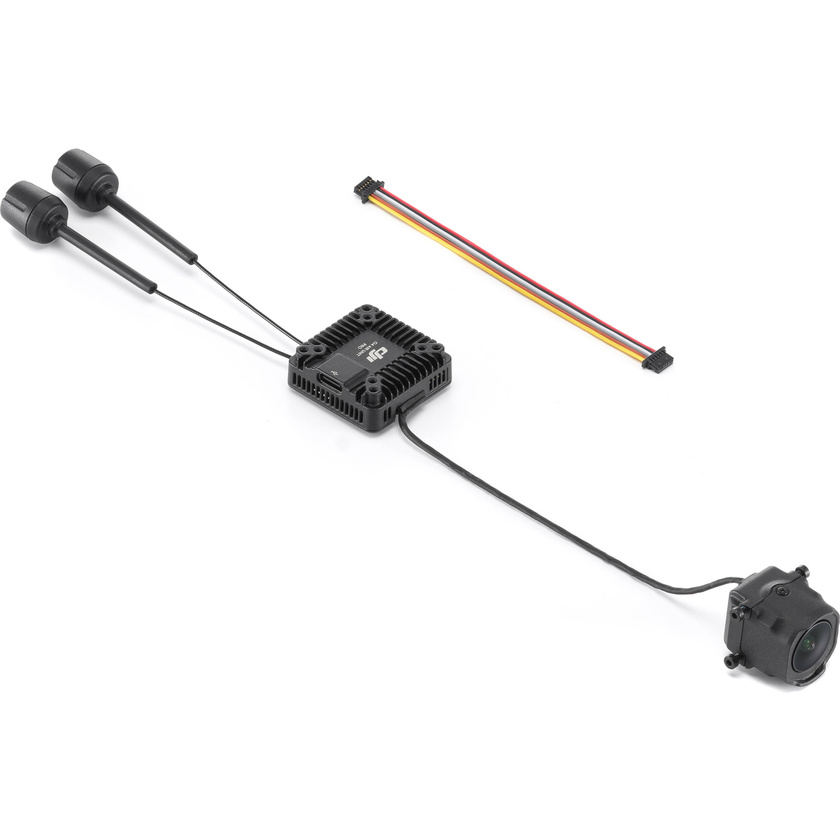

DJI O4 Air Unit Pro
Usually ships in 4 - 6 weeks
Our Price
$449
Usually ships in 4 - 6 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 4 - 6 weeks.
Deliver to
Auckland
for $5.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
4 - 6 weeks
Click & Collect
Features
- Add FPV Capabilities to Your Drone
- Fits Drone Frames as Small as 2"
- Works with DJI Goggles
- DJI O4 Transmission w/ 2T2R Antennas
- Stream 1080p100 Video
- Up to 9.3-Mile Range
Related Products
Description
Specifications
| General | |
| Camera | Image Sensor: 1/1.3" CMOS FOV: 155° Equivalent Focal Length: 12mm Aperture: f/2.8 Minimum Focus Distance: 2' / 0.6 m ISO Range (Auto): 100 to 25,600 ISO Range (Manual): 100 to 25,600 Video Resolution (4K 4:3): 3840 x 2880 at 30, 48, 50, and 60 fps Video Resolution (4K 16:9): 3840 x 2160 at 30, 48, 50, 60, 100, and 120 fps Video Resolution (2.7K 4:3): 2888 x 2016 at 30, 48, 50, and 60 fps Video Resolution (2.7K 16:9): 2688 x 1512 at 30, 48, 50, 60, 100, and 120 fps Video Resolution (1080p 4:3): 1440 x 1080 at 30, 48, 50, 60, 100, and 120 fps Video Resolution (1080p 16:9): 1920 x 1080 at 30, 48, 50, 60, 100, and 120 fps Video Format: MP4 Video Bit Rate (Max): 130 Mb/s |
| Storage Capacity | 4 GB |
| Memory Card Type | microSD (Up to 512 GB) |
| Wireless | |
| Wireless | 5.8 GHz Radio/RF |
| Mobile App Compatible | No |
| Type of Transmitter | Operating Freqency: 5.17 to 5.25 and 5.725 to 5.85 Transmitter Power (EIRP): 5.1 GHz: <23 dBm (COE) Transmitter Power (EIRP): 5.8 GHz: <33 dBm (FCC), <14 dBm (COE), and <30 dBm (SRRC) Transmission Range: With DJI Goggles 3/N3: Up to 9.3 Miles / 15 km (FCC), Up to 5 Miles / 8 km (COE/SRRC) Live View Quality: 1080p at 30, 48, 50, 60, or 100 fps Communication Bandwidth: 60 MHz (Max) Antenna: 2T2R Channels with DJI Goggles 3/N3: 60/40 MHz (1 Channel), 20/10 MHz (3 Channels) Channels with DJI Goggles 2/Integra: 40 MHz (1 Channel), 20/10 MHz (3 Channels) Channels (FCC/SRRC/COE, 60/40 MHz): Channel 1 at 5794.5 MHz Channels (FCC/SRRC/COE, 20/10 MHz): Channel 1 at 5768.5 MHz, Channel 2 at 5789.5 MHz, and Channel 3 at 5814.5 MH |
| Latency | With DJI Goggles 3, Racing Mode, and 1080p/100: Down to 15 ms With DJI Goggles N3, Racing Mode, and 1080p/100: Down to 19 ms With DJI Goggles 2 or Integra and 1080p/100: Down to 30 ms |
| Power | |
| Power Source | Proprietary Interface |
| DC Input Power | 7.4 to 26.4 VDC |
| Physical | |
| Colour | Black |
| Operating Conditions | 14 to 104°F / -10 to 40°C |
| Cable Length | 5.5" / 140 mm (Coaxial) 3.9" / 100 mm (3-in-1) |
| Dimensions | 1.3 x 1.3 x 0.5" / 33.5 x 33.5 x 13 mm (Transmission Module) 1.01 x 0.9 x 0.8" / 25.55 x 23.3 x 20 mm (Camera Module) 4.3" / 110 mm (Each Antenna) |
| Weight | 0.6 oz / 15.6 g (Without Camera Module) 1.1 oz / 32 g (With Camera Module) 0.1 oz / 2.1 g (Each Antenna) |
In The Box
- DJI O4 Air Unit Pro
- Camera Module
- Transmission Module
- Antenna
- 3-in-1 Cable
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: DJI O4 Air Unit Pro
- Manufacturer: DJI
- Model: 190021122451
- SKU: 190021122451
- RM Product #: 119823
- Series/Compatibility: FPV/Avata
