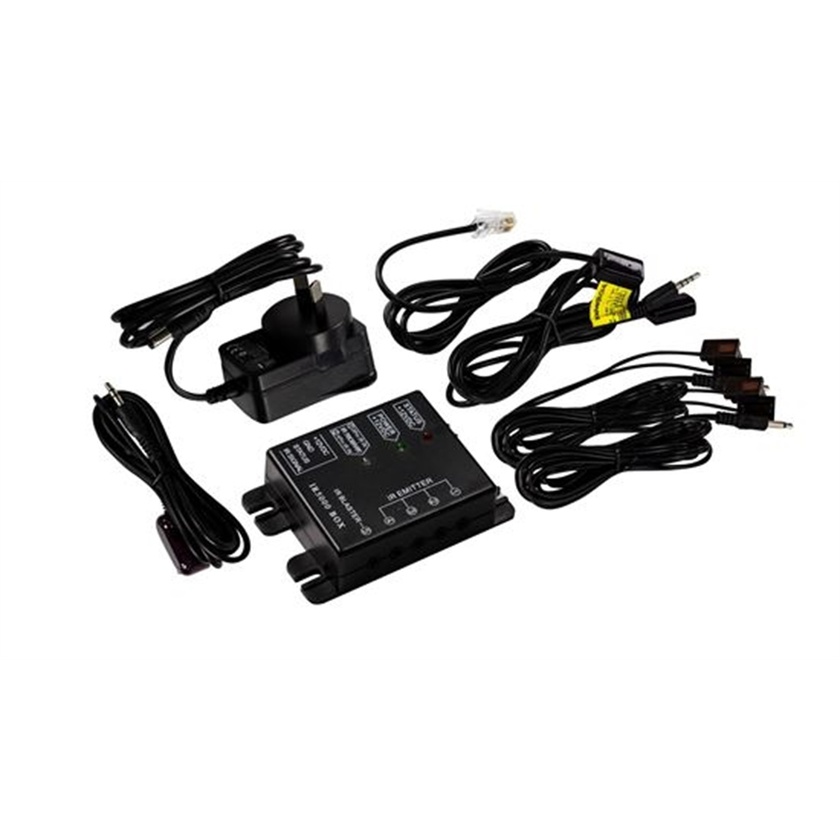

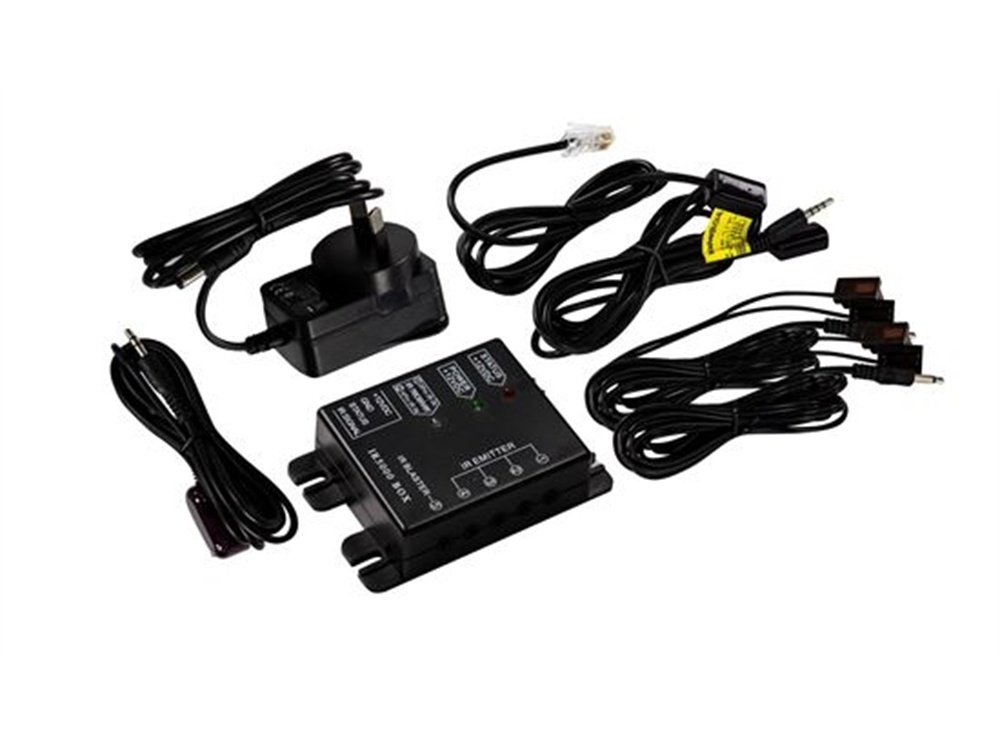

DYNAMIX 4-2 Hidden IR Distribution System. Kit includes 1x IR Box with RJ45 Port, 1x 1M RJ45 IR Rec Emitter, 1x 2M IR Blaster, 1x AU Power Adapter
The IR6000 System is a modular infrared extension system and the components required are available individually. This system can be used universally and is suitable for just about any situation. You can extend the IR (infrared) signals of remote controls. It makes sure that all your AV components receive the commands sent from your existing IR remote controls. You can keep all your devices behind in closed cabinets but still keep them in use with this device. Simply place the hidden IR repeater box in the cabinet or closet, affix it to the included IR emitters/IR blaster, then place a receiver somewhere near your television and the system will let you control up to numerous individual home theater components using your existing IR remote control.
| IR Module | |
| Power Supply | DC12V/250mA, supplied from connected IR6000 box |
| IR Input | 1x 3.5mm jack connector for IRCV-3 Receiver (3 conductor plug) 1x 3.5mm jack connector for IR-CV-4 receiver (4 conductor plug) |
| IR Emitter Output | 4x 3.5mm jack connector for IR-EM-3 Emitter 1x 2.5mm jack connector for IR-Baster |
| RJ45 Port | Extra RJ45 IR Receiver can be connected to this input or you can use the cat cable together with the RJ45 IR Receiver to extend the IR signal reception |
| Status Indication | Green LED for On/Off indication |
| IR Signal Indication | Blue indication LED |
| Power Indication | Red indication LED |
| Dimensions | 55 x 85 x 23mm |
| IR Receiver (IR-CV-4, IR-CV-5) | |
| Frequency Range | 25 ~ 60KHz |
| IR Reception Range | ±10m |
| Status Indication | Green LED for system On/Off indication |
| IR Signal Indication | Blue indication LED |
| IR Reception Angle | 90º (+45º/-45º from center) |
| IR Receiver Connection | 1x 3.5mm jack plug (4 conductor plug), 1x RJ45 connector |
| Cable Length | 1x 2m (IR-CV-4), 1x 1m (IR-CV-5) extendable up to max 100m |
| Dimensions | 25 x 14 x 9mm |
| IR Emitter (IR-EM-3) | |
| Connection | 3.5m jack plug (mono) |
| IR LEDs | 2x IR emitter LEDs |
| Cable Length | 2m |
| Peak Forward Current | 100mA |
| Forward Voltage Max | 1.5V |
| Peak Wavelength | 940nm |
| Dimensions | 22 x 16 x 8mm |
| Power Adapter | |
| Input | AC 100 ~ 240V |
| Output | DC 12V/250mA |
| DC Plug | 5.5 x 2.1mm |
| IR Blaster | |
| Connection | 2.5mm jack plug (mono) |
| IR LEDs | 1x IR blaster LED |
| Cable Length | 2m |
| IR Transmitting Range | 1m |
| IR Transmitting Angle | 90° (+45°/-45° from center) |
