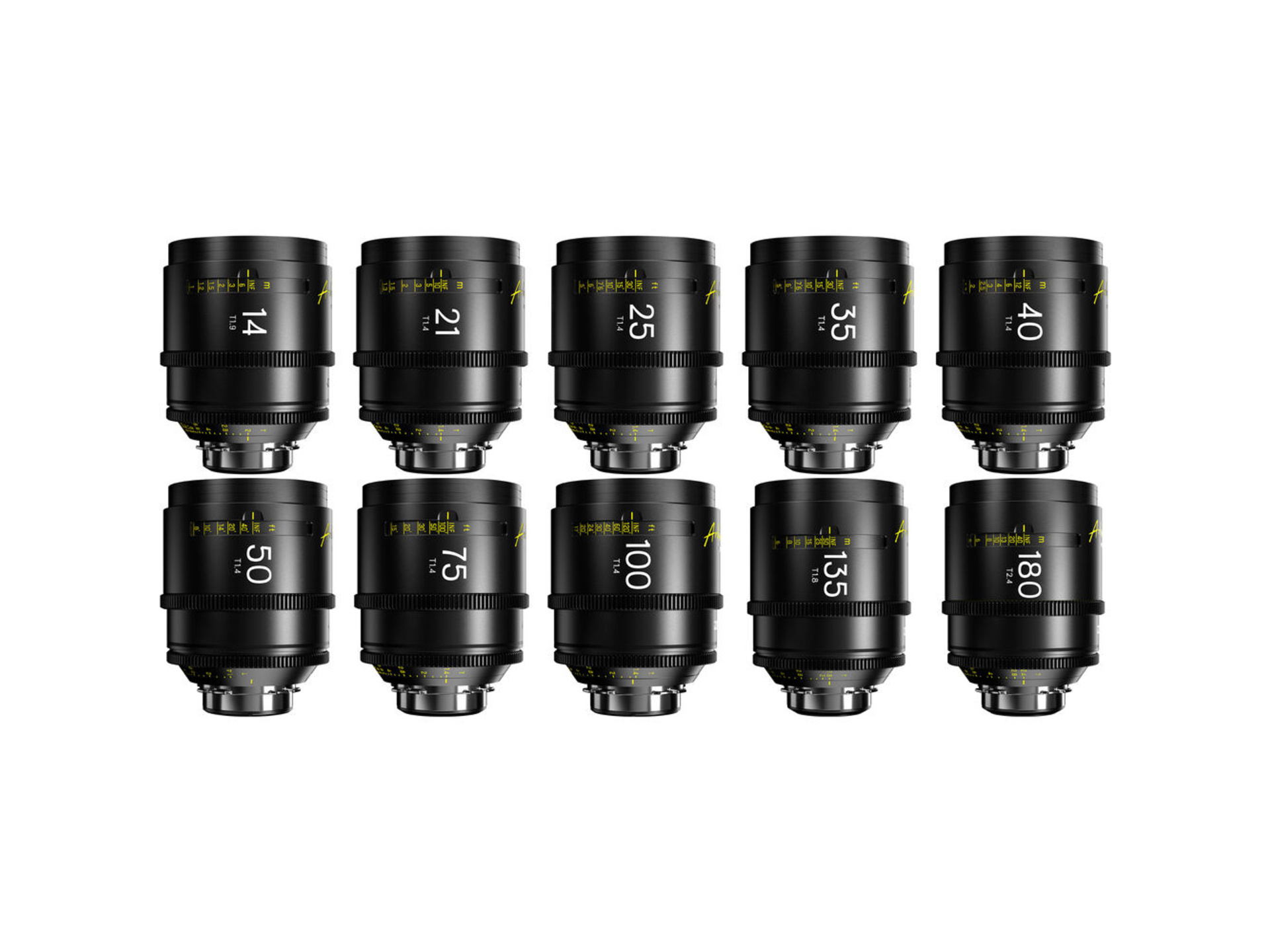

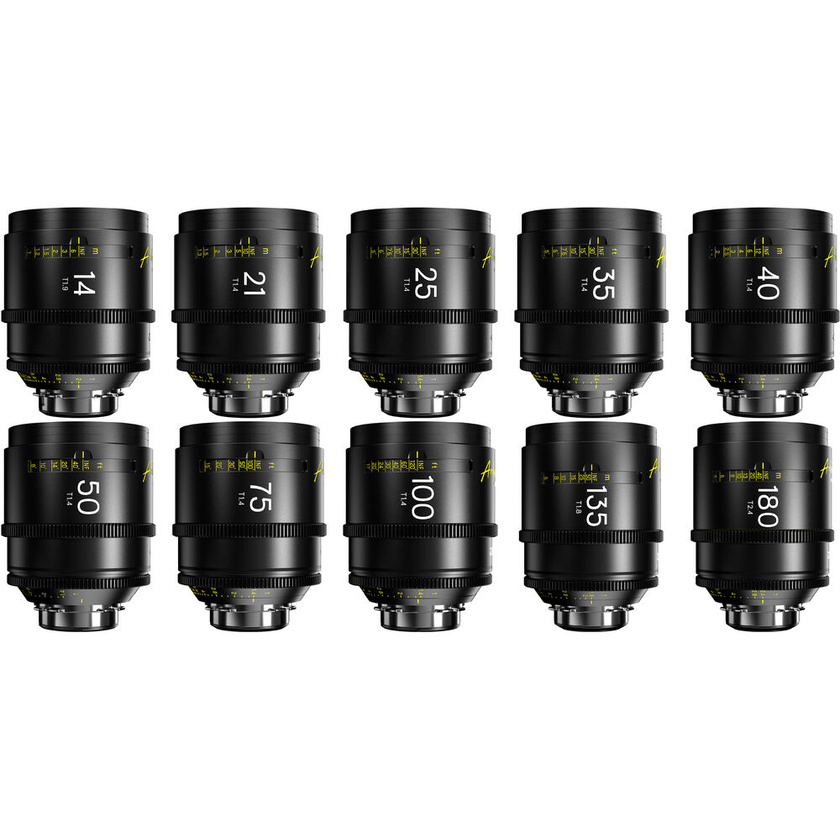

DZOFilm Arles FF/VV 10-Lens 14/21/25/35/40/50/75/100/135/180mm Set (ARRI PL, Feet)

Product #117486 | SKU DZO-SAP10IPL | DZOFilm
In Stock with Supplier Usually ships in 2 - 3 weeks what does this mean?
Our Price $38,799
In Stock with Supplier Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to Auckland for $79 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • 14, 21, 25, 35, and 40mm Primes
  • 50, 75, 100, 135, and 180mm Primes
  • All Lenses Cover Full-Frame Format
  • T1.4 to T22 Aperture Range
  • 16-Blade Iris, M86 Filter Thread
  • 95mm Front Diameter

Description

This DZOFilm Arles FF/VV 10-Lens 14/21/25/35/40/50/75/100/135/180mm Set includes 10 different focal lengths ranging from wide to telephoto. Designed for full-frame ARRI PL-mount cameras, this set features lenses with similar gearing, iris blades, front diameters, and aperture ranges for seamless switching. Each lens in this kit is detailed below.

DZOFilm Arles 14mm T1.9 FF/VV Prime Cine Lens (ARRI PL)

Capture sharp, natural-looking imagery with the Arles 14mm T1.9 FF/VV Prime Cine Lens from DZOFilm. With an aperture range of T1.9 to T22, this lens delivers exceptional low-light performance and shallow depth of field. It features a 16-blade iris and advanced optical construction for beautiful bokeh. The focus ring rotates 270° and the iris ring 77° for easy manual adjustments.

DZOFilm Arles 25mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

Enhance your cinematography with the Arles 25mm T1.4 FF/VV Prime Cine Lens from DZOFilm. Its aperture range of T1.4 to T22 enables a wide depth of field, while the 16-blade iris and 14-element optical construction produce a soft, natural bokeh. The lens offers a 87.44° diagonal field of view and is equipped with 0.8 MOD focus and aperture gears, making it easy to switch between focal lengths.

DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

Capture cinematic images with the Arles 35mm T1.4 FF/VV Prime Cine Lens from DZOFilm. This lens features an aperture range of T1.4 to T22, allowing for a wide depth of field. Its 16-blade iris and 14-element optical construction deliver a soft, natural bokeh. With a 67.15° diagonal field of view, 0.8 MOD focus and aperture gears, and a 95mm outside diameter, this lens provides versatility and ease of use.

DZOFilm Arles 40mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

Capture natural-looking imagery with the Arles 40mm T1.4 FF/VV Prime Cine Lens from DZOFilm. With its aperture range of T1.4 to T22, this lens excels in low-light conditions and offers shallow depth of field. The 16-blade iris and optical construction provide a soft, natural bokeh. Featuring a 270° focus ring rotation and a 77° iris ring rotation, this lens offers intuitive manual adjustments.

DZOFilm Arles 50mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

Elevate your cinematography with the Arles 50mm T1.4 FF/VV Prime Cine Lens from DZOFilm. This lens features an aperture range of T1.4 to T22, enabling a wide depth of field. Its 16-blade iris and 13-element optical construction produce a soft, natural bokeh. With a 50.23° diagonal field of view and 0.8 MOD focus and aperture gears, this lens is well-suited for various shooting scenarios.

DZOFilm Arles 75mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

Capture cinematic images with the Arles 75mm T1.4 FF/VV Prime Cine Lens from DZOFilm. This lens offers an aperture range of T1.4 to T22, allowing for a wide depth of field. Its 16-blade iris and 13-element optical construction deliver a soft, natural bokeh. With a 34.1° diagonal field of view and a 0.8 MOD focus and aperture gears, this lens provides versatility and ease of use.

DZOFilm Arles 100mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

Enhance your cinematography with the Arles 100mm T1.4 FF/VV Prime Cine Lens from DZOFilm. With an aperture range of T1.4 to T22, this lens offers a wide depth of field. Its 16-blade iris and 13-element optical construction produce a soft, natural bokeh. Featuring a 25.96° diagonal field of view and 0.8 MOD focus and aperture gears, this lens provides flexibility and ease of use.

DZOFilm Arles 135mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

Capture consistently sharp, natural-looking imagery with the Arles 135mm T1.4 FF/VV Prime Cine Lens from DZOFilm. This lens offers an aperture range of T1.4 to T22, perfect for low-light situations and shallow depth of field. Its 16-blade iris and advanced optical construction provide a soft, natural bokeh. The lens features a focus ring rotation of 270° and an iris ring rotation of 77° for easy manual adjustments.

DZOFilm Arles 180mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

Equip your camera with the Arles 180mm T1.4 FF/VV Prime Cine Lens from DZOFilm for consistently sharp, natural-looking imagery. With an aperture range of T1.4 to T22, this lens excels in low-light conditions and offers shallow depth of field. The 16-blade iris and optical construction ensure a soft, natural bokeh. It features a 270° focus ring rotation and a 77° iris ring rotation for intuitive manual adjustments.

Specifications

DZOFilm Arles 14mm T1.9 FF/VV Prime Cine Lens (ARRI PL)
Key Specs
Focal Length 14mm
Maximum Aperture T1.9
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 86 mm
Image Stabilisation No
Maximum Aperture T1.9
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Angle of View Not Specified by Manufacturer
Focus Scales Imperial
Optical Design 14 Elements in 12 Groups
Filter Thread 86 mm
Diaphragm Blades 16
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus: 270° (Manual Only)
Iris: 77° (Manual Only)
Coatings Multi-Coating
Diameter 3.7" / 95 mm
Length Not Specified by Manufacturer
DZOFilm Arles 25mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
Key Specs
Focal Length 25mm
Maximum Aperture T1.4
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 86 mm
Image Stabilisation No
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Angle of View Full Frame
Horizontal: 80.36°
Vertical: 47.28°
Diagonal: 87.44°
Focus Scales Imperial
Optical Design 14 Elements in 12 Groups
Filter Thread 86 mm
Minimum Focus Distance From Camera Sensor: 13.78" / 0.35 m
Diaphragm Blades 16
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus: 270° (Manual Only)
Iris: 77° (Manual Only)
Diameter 3.7" / 95 mm
Length 4.8" / 121 mm
Weight 3.3 lb / 1490 g
DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
Key Specs
Focal Length 35mm
Maximum Aperture T1.4
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 86 mm
Image Stabilisation No
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Angle of View Full Frame
Horizontal: 61.1°
Vertical: 34.23°
Diagonal: 67.15°
Focus Scales Imperial
Optical Design 14 Elements in 12 Groups
Filter Thread 86 mm
Minimum Focus Distance From Camera Sensor: 13.78" / 0.35 m
Diaphragm Blades 16
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus: 270° (Manual Only)
Iris: 80° (Manual Only)
Coatings Multi-Coating
Environmental Resistance No
Diameter 3.7" / 95 mm
Length 4.8" / 121 mm
Weight 3.6 lb / 1650 g
DZOFilm Arles 40mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
Key Specs
Focal Length 40mm
Maximum Aperture T1.4
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 86 mm
Image Stabilisation No
Electronic Communication No
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Interchangeable Mount Yes
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Focus Scales Imperial
Filter Thread 86 mm
Diaphragm Blades 16
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus: 270° (Manual Only)
Iris: 77° (Manual Only)
Electronic Communication No
Diameter 3.7" / 95 mm
DZOFilm Arles 50mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
Key Specs
Focal Length 50mm
Maximum Aperture T1.4
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 86 mm
Image Stabilisation No
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Angle of View Full Frame
Horizontal: 45.17°
Vertical: 24.61°
Diagonal: 50.23°
Focus Scales Imperial
Optical Design 13 Elements in 9 Groups
Filter Thread 86 mm
Minimum Focus Distance From Camera Sensor: 19.7" / 0.5 m
Diaphragm Blades 16
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus: 270° (Manual Only)
Iris: 80° (Manual Only)
Coatings Multi-Coating
Environmental Resistance No
Diameter 3.7" / 95 mm
Length 4.8" / 121 mm
Weight 3.7 lb / 1688 g
DZOFilm Arles 75mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
Key Specs
Focal Length 75mm
Maximum Aperture T1.4
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 86 mm
Image Stabilisation No
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Angle of View Full Frame
Horizontal: 30.45°
Vertical: 16.35°
Diagonal: 34.1°
Focus Scales Imperial
Optical Design 13 Elements in 9 Groups
Filter Thread 86 mm
Minimum Focus Distance From Camera Sensor: 2.46' / 0.75 m
Diaphragm Blades 16
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus: 270° (Manual Only)
Iris: 82° (Manual Only)
Coatings Multi-Coating
Environmental Resistance No
Diameter 3.7" / 95 mm
Length 4.8" / 121 mm
Weight 3.7 lb / 1662 g
DZOFilm Arles 100mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
Key Specs
Focal Length 100mm
Maximum Aperture T1.4
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 86 mm
Image Stabilisation No
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Angle of View Full Frame
Horizontal: 23.12°
Vertical: 12.34°
Diagonal: 25.96°
Focus Scales Imperial
Optical Design 13 Elements in 8 Groups
Filter Thread 86 mm
Minimum Focus Distance From Camera Sensor: 3.0' / 0.9 m
Diaphragm Blades 16
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus: 270° (Manual Only)
Iris: 90° (Manual Only)
Coatings Multi-Coating
Environmental Resistance No
Diameter 3.7" / 95 mm
Length 4.8" / 121 mm
Weight 4 lb / 1830 g
DZOFilm Arles 135mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
Key Specs
Focal Length 135mm
Maximum Aperture T1.4
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 86 mm
Image Stabilisation No
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Focus Scales Imperial
Optical Design 14 Elements in 12 Groups
Filter Thread 86 mm
Diaphragm Blades 16
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus: 270° (Manual Only)
Iris: 77° (Manual Only)
Coatings Multi-Coating
Diameter 3.7" / 95 mm
DZOFilm Arles 180mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
Key Specs
Focal Length 180mm
Maximum Aperture T1.4
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 86 mm
Image Stabilisation No
Electronic Communication No
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Interchangeable Mount Yes
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Focus Scales Imperial
Filter Thread 86 mm
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus: 270° (Manual Only)
Iris: 77° (Manual Only)
Electronic Communication No
Coatings Multi-Coating
Diameter Front: 3.7" / 95 mm

In The Box

  • DZOFilm Arles 14mm T1.9 FF/VV Prime Cine Lens (ARRI PL)
  • DZOFilm Arles 25mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
  • DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
  • DZOFilm Arles 40mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
  • DZOFilm Arles 50mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
  • DZOFilm Arles 75mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
  • DZOFilm Arles 100mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
  • DZOFilm Arles 135mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
  • DZOFilm Arles 180mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
  • 21mm T1.4 Arles Prime Lens
  • Lens Case

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: DZOFilm Arles FF/VV 10-Lens 14/21/25/35/40/50/75/100/135/180mm Set (ARRI PL, Feet)
  • Manufacturer: DZOFilm
  • Model: DZO-SAP10IPL
  • SKU: DZO-SAP10IPL
  • RM Product #: 117486
  • Lens Type: Wide to Telephoto
  • Maximum Aperture: T1.4
  • Lens Mount: Arri PL
  • Zoom or Prime Lens: Prime
  • Maximum Aperture: T1.9
