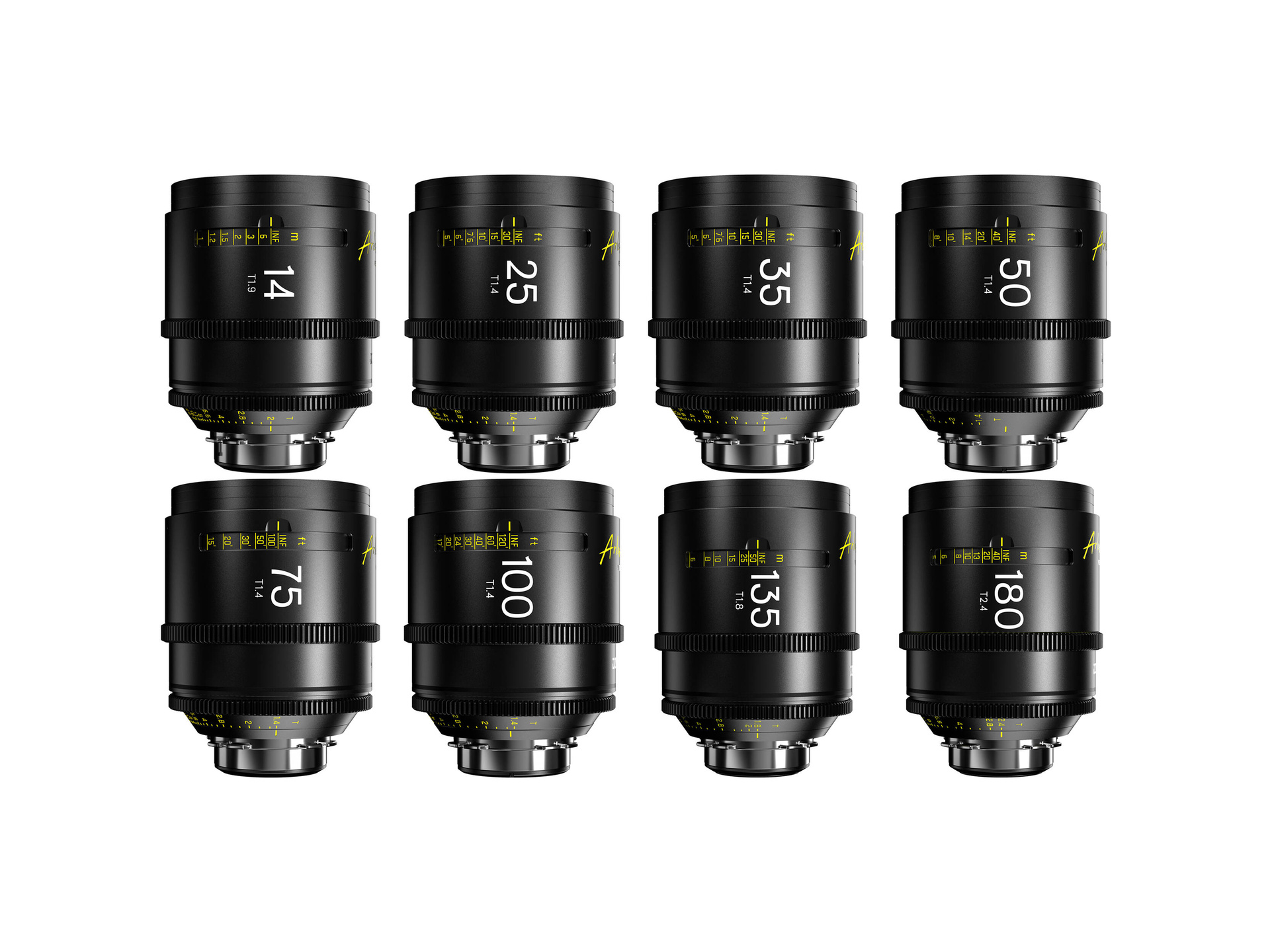

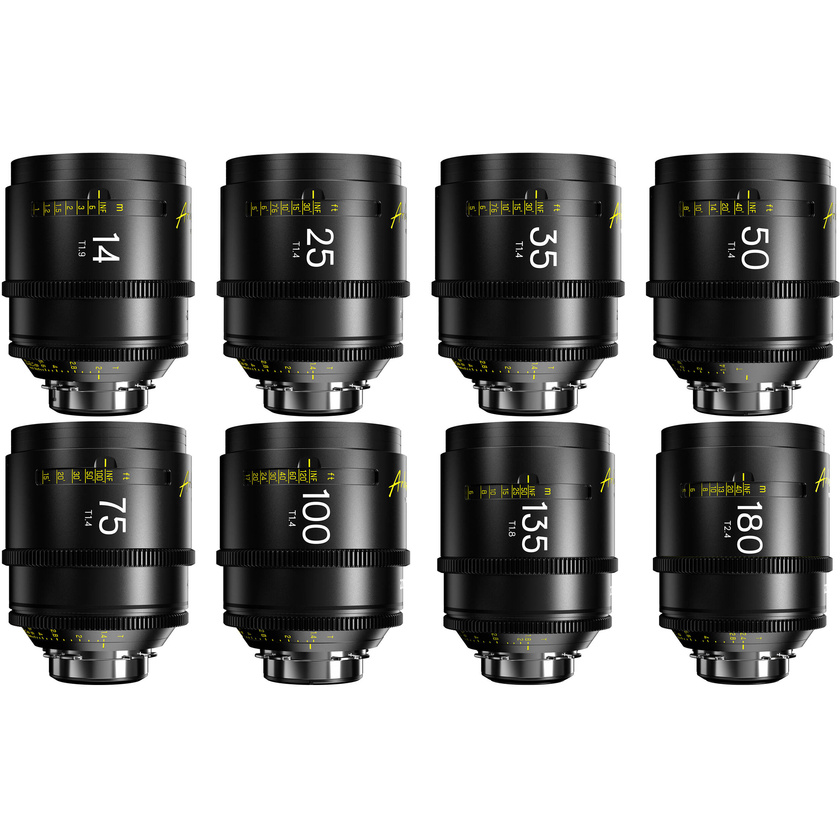

DZOFilm Arles FF/VV 8-Lens 14/25/35/50/75/100/135/180mm Set (ARRI PL)

Product #117319 | SKU DZO-SAP8MPL | DZOFilm
In Stock with Supplier Usually ships in 2 - 3 weeks what does this mean?
Our Price $30,999
In Stock with Supplier Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to Auckland for $15 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • 14, 25, 35, 50, 75, 100, 135, and 180mm
  • All Lenses Cover Full-Frame Format
  • T1.4 to T22 Aperture Range
  • 16-Blade Iris, M86 Filter Thread
  • 95mm Front Diameter
  • Cinema-Standard Gearing

Description

This DZOFilm Arles FF/VV 8-Lens 14/25/35/50/75/100/135/180mm Set is a comprehensive collection of lenses ranging from wide to telephoto, designed for full-frame ARRI PL-mount cameras. The set includes 14mm, 25mm, 35mm, 50mm, 75mm, 100mm, 135mm, and 180mm lenses, as well as a lens case. All of these lenses feature similar gearings, iris blades, front diameters, and aperture ranges, making it easy to switch between them. Read on for more details about each lens within this exceptional kit.

DZOFilm Arles 14mm T1.9 FF/VV Prime Cine Lens (ARRI PL)

Expand the capabilities of your full-frame ARRI PL-mount camera with the DZOFilm Arles 14mm T1.9 FF/VV Prime Cine Lens. This prime lens offers excellent low-light performance and allows you to achieve a shallow depth of field with its aperture range of T1.9 to T22. With its 16-blade iris and a sophisticated optical construction, this lens is capable of capturing high-quality imagery with a soft and natural bokeh. The focus ring, which rotates 270°, and the iris ring, which rotates 77°, provide precise manual control for intuitive adjustments.

DZOFilm Arles 25mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

Enhance your full-frame ARRI PL-mount camera with the DZOFilm Arles 25mm T1.4 FF/VV Prime Cine Lens. This prime lens delivers cine-style images and allows for a wide depth of field with its aperture range of T1.4 to T22. Its 16-blade iris and optical construction with 14 elements in 12 groups ensure a soft and natural bokeh in your high-quality imagery. The lens provides a diagonal field of view of 87.44°, ensuring that your subject remains within the frame. With its cine-style design, 0.8 MOD focus and aperture gears, and versatile 95mm outer diameter and M86 filter thread, this lens offers seamless integration into your camera setup.

DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

Expand your creative possibilities with the DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens for full-frame ARRI PL-mount cameras. This prime lens enables you to capture cine-style images, thanks to its improved features. With an aperture range of T1.4 to T22, it allows for a wide depth of field. The lens features a 16-blade iris and an optical construction of 14 elements in 12 groups, providing a soft and natural bokeh in your high-quality imagery. Offering a diagonal field of view of 67.15°, this lens ensures that your subject remains perfectly framed. Its cine-style design, 0.8 MOD focus and aperture gears, and convenient 95mm outer diameter and M86 filter thread make it effortless to switch between focal lengths.

DZOFilm Arles 50mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

Unleash your creativity with the DZOFilm Arles 50mm T1.4 FF/VV Prime Cine Lens, designed for full-frame ARRI PL-mount cameras. This prime lens allows you to capture cine-style images and achieve a wide depth of field with its aperture range of T1.4 to T22. Its 16-blade iris and optical construction of 13 elements in 9 groups deliver a soft and natural bokeh in your high-quality imagery. With a diagonal field of view of 50.23°, this lens ensures that your subject remains within the frame. It boasts a cine-style design, 0.8 MOD focus and aperture gears, and a versatile 95mm outer diameter and M86 filter thread, enabling seamless integration into your camera setup.

DZOFilm Arles 75mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

Expand your creative possibilities with the DZOFilm Arles 75mm T1.4 FF/VV Prime Cine Lens, designed for full-frame ARRI PL-mount cameras. This prime lens is perfect for capturing cine-style images, thanks to its improved features. With an aperture range of T1.4 to T22, it allows for a wide depth of field. Its 16-blade iris and optical construction of 13 elements in 9 groups deliver a soft and natural bokeh to your high-quality imagery. This lens provides a diagonal field of view of 34.1°, ensuring that your subject remains perfectly framed. Its cine-style design, 0.8 MOD focus and aperture gears, and adaptable 95mm outer diameter and M86 filter thread make it easy to switch between focal lengths.

DZOFilm Arles 100mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

Equip your full-frame ARRI PL-mount camera with the DZOFilm Arles 100mm T1.4 FF/VV Prime Cine Lens and elevate your cinematography to new heights. This prime lens offers a wide depth of field with its aperture range of T1.4 to T22, enabling exceptional low-light performance. Its 16-blade iris and optical construction of 13 elements in 8 groups deliver a soft and natural bokeh in your high-quality imagery. The lens provides a diagonal field of view of 25.96°, ensuring that your subject remains perfectly framed. With a cine-style design, 0.8 MOD focus and aperture gears, and a versatile 95mm outer diameter and M86 filter thread, switching between focal lengths becomes effortless.

DZOFilm Arles 135mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

Capture consistently sharp and natural-looking imagery with the DZOFilm Arles 135mm T1.4 FF/VV Prime Cine Lens, designed for full-frame ARRI PL-mount cameras. This longer prime lens boasts an aperture range of T1.4 to T22, making it ideal for low-light situations and achieving a shallow depth of field. With a 16-blade iris and an optical construction consisting of multiple grouped elements, this lens offers a soft and natural bokeh for your high-quality imagery. The focus ring, rotating 270°, and the iris ring, rotating 77°, allow for precise manual adjustments.

DZOFilm Arles 180mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

Take your cinematography to the next level with the DZOFilm Arles 180mm T1.4 FF/VV Prime Cine Lens, designed for full-frame ARRI PL-mount cameras. This longer prime lens features an aperture range of T1.4 to T22, allowing for excellent low-light performance and a strikingly shallow depth of field. Its 16-blade iris and optical construction of multiple grouped elements deliver a soft and natural bokeh in your high-quality imagery. With a 270° focus ring rotation and a 77° iris ring rotation, this lens offers intuitive manual adjustments for precise control.

Specifications

DZOFilm Arles 14mm T1.9 FF/VV Prime Cine Lens (ARRI PL)
Key Specs
Focal Length 14mm
Maximum Aperture T1.9
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 86 mm
Image Stabilisation No
Maximum Aperture T1.9
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Angle of View Not Specified by Manufacturer
Focus Scales Metric
Optical Design 14 Elements in 12 Groups
Filter Thread 86 mm
Diaphragm Blades 16
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus: 270° (Manual Only)
Iris: 77° (Manual Only)
Coatings Multi-Coating
Diameter 3.7" / 95 mm
Length Not Specified by Manufacturer
DZOFilm Arles 25mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
Key Specs
Focal Length 25mm
Maximum Aperture T1.4
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 86 mm
Image Stabilisation No
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Angle of View Full Frame
Horizontal: 80.36°
Vertical: 47.28°
Diagonal: 87.44°
Focus Scales Metric
Optical Design 14 Elements in 12 Groups
Filter Thread 86 mm
Minimum Focus Distance From Camera Sensor: 13.78" / 0.35 m
Diaphragm Blades 16
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus: 270° (Manual Only)
Iris: 77° (Manual Only)
Diameter 3.7" / 95 mm
Length 4.8" / 121 mm
Weight 3.3 lb / 1490 g
DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
Key Specs
Focal Length 35mm
Maximum Aperture T1.4
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 86 mm
Image Stabilisation No
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Angle of View Full Frame
Horizontal: 61.1°
Vertical: 34.23°
Diagonal: 67.15°
Focus Scales Metric
Optical Design 14 Elements in 12 Groups
Filter Thread 86 mm
Minimum Focus Distance From Camera Sensor: 13.78" / 0.35 m
Diaphragm Blades 16
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus: 270° (Manual Only)
Iris: 80° (Manual Only)
Coatings Multi-Coating
Environmental Resistance No
Diameter 3.7" / 95 mm
Length 4.8" / 121 mm
Weight 3.6 lb / 1650 g
DZOFilm Arles 50mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
Key Specs
Focal Length 50mm
Maximum Aperture T1.4
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 86 mm
Image Stabilisation No
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Angle of View Full Frame
Horizontal: 45.17°
Vertical: 24.61°
Diagonal: 50.23°
Focus Scales Metric
Optical Design 13 Elements in 9 Groups
Filter Thread 86 mm
Minimum Focus Distance From Camera Sensor: 19.7" / 0.5 m
Diaphragm Blades 16
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus: 270° (Manual Only)
Iris: 80° (Manual Only)
Coatings Multi-Coating
Environmental Resistance No
Diameter 3.7" / 95 mm
Length 4.8" / 121 mm
Weight 3.7 lb / 1688 g
DZOFilm Arles 75mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
Key Specs
Focal Length 75mm
Maximum Aperture T1.4
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 86 mm
Image Stabilisation No
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Angle of View Full Frame
Horizontal: 30.45°
Vertical: 16.35°
Diagonal: 34.1°
Focus Scales Metric
Optical Design 13 Elements in 9 Groups
Filter Thread 86 mm
Minimum Focus Distance From Camera Sensor: 2.46' / 0.75 m
Diaphragm Blades 16
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus: 270° (Manual Only)
Iris: 82° (Manual Only)
Coatings Multi-Coating
Environmental Resistance No
Diameter 3.7" / 95 mm
Length 4.8" / 121 mm
Weight 3.7 lb / 1662 g
DZOFilm Arles 100mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
Key Specs
Focal Length 100mm
Maximum Aperture T1.4
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 86 mm
Image Stabilisation No
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Angle of View Full Frame
Horizontal: 23.12°
Vertical: 12.34°
Diagonal: 25.96°
Focus Scales Metric
Optical Design 13 Elements in 8 Groups
Filter Thread 86 mm
Minimum Focus Distance From Camera Sensor: 3.0' / 0.9 m
Diaphragm Blades 16
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus: 270° (Manual Only)
Iris: 90° (Manual Only)
Coatings Multi-Coating
Environmental Resistance No
Diameter 3.7" / 95 mm
Length 4.8" / 121 mm
Weight 4 lb / 1830 g
DZOFilm Arles 135mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
Key Specs
Focal Length 135mm
Maximum Aperture T1.4
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 86 mm
Image Stabilisation No
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Focus Scales Metric
Optical Design 14 Elements in 12 Groups
Filter Thread 86 mm
Diaphragm Blades 16
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus: 270° (Manual Only)
Iris: 77° (Manual Only)
Coatings Multi-Coating
Diameter 3.7" / 95 mm
DZOFilm Arles 180mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
Key Specs
Focal Length 180mm
Maximum Aperture T1.4
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 86 mm
Image Stabilisation No
Electronic Communication No
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Interchangeable Mount Yes
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Focus Scales Metric
Filter Thread 86 mm
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus: 270° (Manual Only)
Iris: 77° (Manual Only)
Electronic Communication No
Coatings Multi-Coating
Diameter Front: 3.7" / 95 mm

In The Box

  • DZOFilm Arles 14mm T1.9 FF/VV Prime Cine Lens (ARRI PL)
  • DZOFilm Arles 25mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
  • DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
  • DZOFilm Arles 50mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
  • DZOFilm Arles 75mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
  • DZOFilm Arles 100mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
  • DZOFilm Arles 135mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
  • DZOFilm Arles 180mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
  • Lens Case

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: DZOFilm Arles FF/VV 8-Lens 14/25/35/50/75/100/135/180mm Set (ARRI PL)
  • Manufacturer: DZOFilm
  • Model: DZO-SAP8MPL
  • SKU: DZO-SAP8MPL
  • RM Product #: 117319
  • Maximum Aperture: T1.4
  • Lens Mount: Arri PL
  • Zoom or Prime Lens: Prime
  • Maximum Aperture: T1.9
  • Lens Type: Wide to Telephoto
