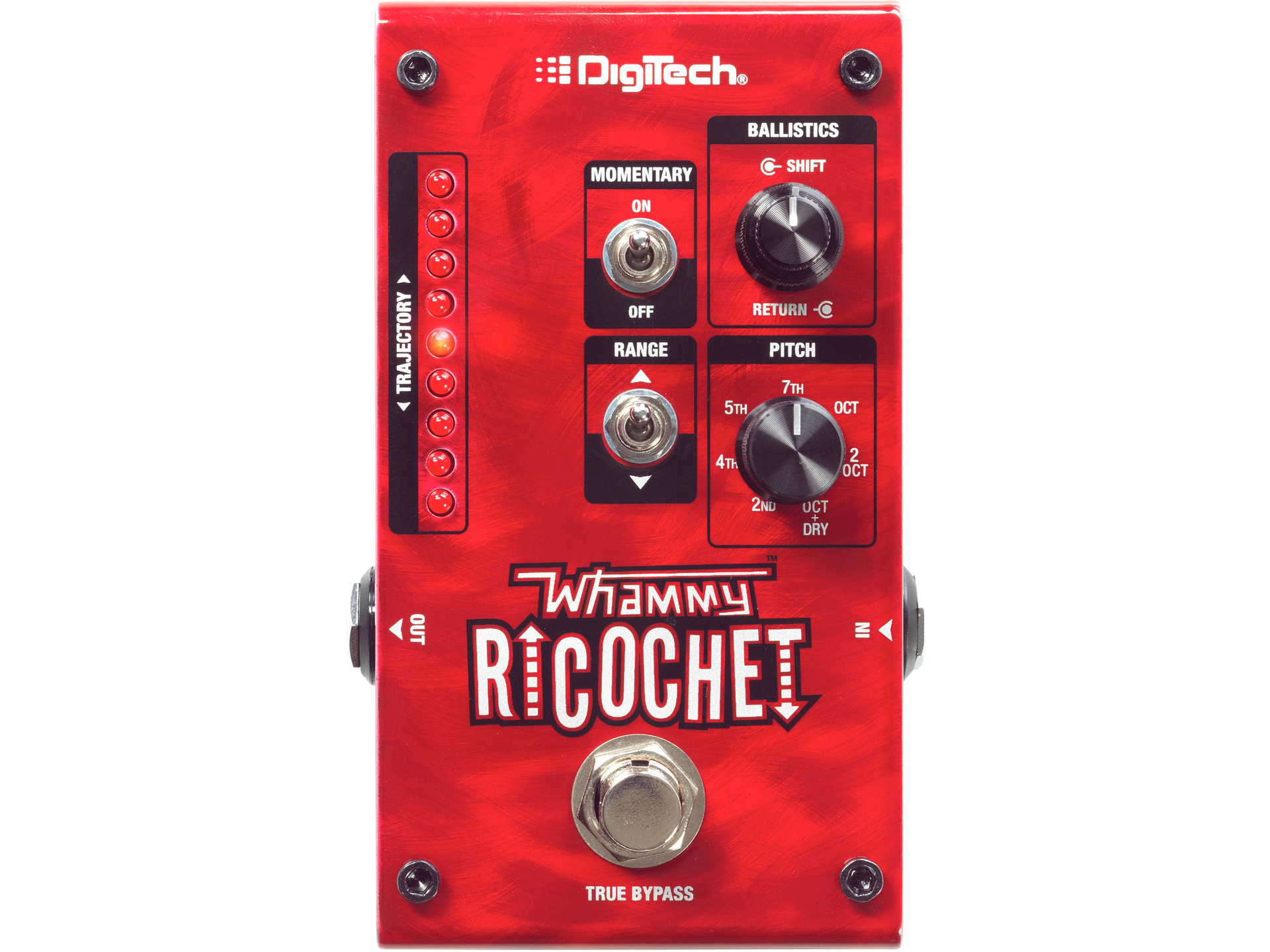

DigiTech Whammy Ricochet Pitch Shift Pedal

Product #118236 | SKU Whammy Ricochet | DigiTech
Enquire for ETA what does this mean?
Our Price $389
Enquire for ETA what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Enquire for ETA. Deliver to Auckland for $5.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in Enquire for ETA
Click & Collect

Features

  • Whammy, Harmony, & Detune Effects
  • Classic & Chords Algorithms Provided
  • Shift & Return Controls Replace Treadle
  • Drop & Raised Tuning Effects
  • 7 Selectable Intervals
  • Momentary Switch Effects Pedal Operation

Description

Intended for electric guitar players, the DigiTech Whammy Ricochet Pitch Shift Pedal offers classic Whammy sounds in a more compact stompbox design. Unlike the original, it does not have an integrated expression pedal. Instead, it has separate controls for adjusting the rise and fall time using stacked, concentric Shift and Return knobs. The Pitch selector knob allows you to set the desired interval of the pitch-shifted note, while the Range switch determines whether the pitch will be shifted upwards or downwards. The LED Trajectory ladder provides a visual display of how the pedal is affecting your pitch.

This pedal offers seven intervallic selections, including 2nd, 4th, 5th, 7th, Octave, Double Octave, and Octave+Dry for a stacked pitch sound. When combined with distortion, these sounds can make rhythm parts sound powerful and commanding. One interesting feature of the Whammy Ricochet is the Momentary toggle switch. This switch allows you to use the bypass footswitch in different ways and even changes it from buffered to true bypass depending on the mode you're using. For more details on the various operational functions of the Momentary switch, please refer to the Features section below.

Specifications

Sample Rate Classic mode: 44.1 kHz
Chords mode: 22 kHz
Frequency Response Classic mode: 20 Hz to 16 kHz
Chords mode: 20 Hz to 11 kHz
Signal to Noise Ratio > -106 dB (A-weighted); ref = max level, 22 kHz bandwidth
THD 0.004% at 1 kHz; ref = 1 dBu with unity gain
A/D/A Convertor 24-bit resolution
Audio I/O 1 x 1/4" TS unbalanced input, phone type
1 x 1/4" TS unbalanced output, phone type
Maximum Level Input: +5 dBu
Output: +10 dBu
Impedance Input: 1 MOhm (effect enabled or effect bypassed with Momentary switch on)
Output: 1 kOhm (Effect enabled or effect bypassed with Momentary switch on)
Power Consumption 2.1 W (235 mA typical at 9 VDC)
Power Requirements 9 VDC External Adapter (available separately)
Dimensions 4.8 x 2.9 x 1.8" / 12.1 x 7.3 x 4.4 cm
Weight 0.4 lb / 0.2 kg

In The Box

  • DigiTech Whammy Ricochet Pitch Shift Pedal

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: DigiTech Whammy Ricochet Pitch Shift Pedal
  • Manufacturer: DigiTech
  • Model: Whammy Ricochet
  • SKU: Whammy Ricochet
  • RM Product #: 118236
