The winding method of this Dynamix Cat6 Blue UTP SOLID Cable Roll was developed to improve the payout performance of all products and to increase the bend radius of the cable. The larger payout hole and tube were found to help significantly with LAN cable signal performance while also smoothing the payout of cables with inherent twisting.

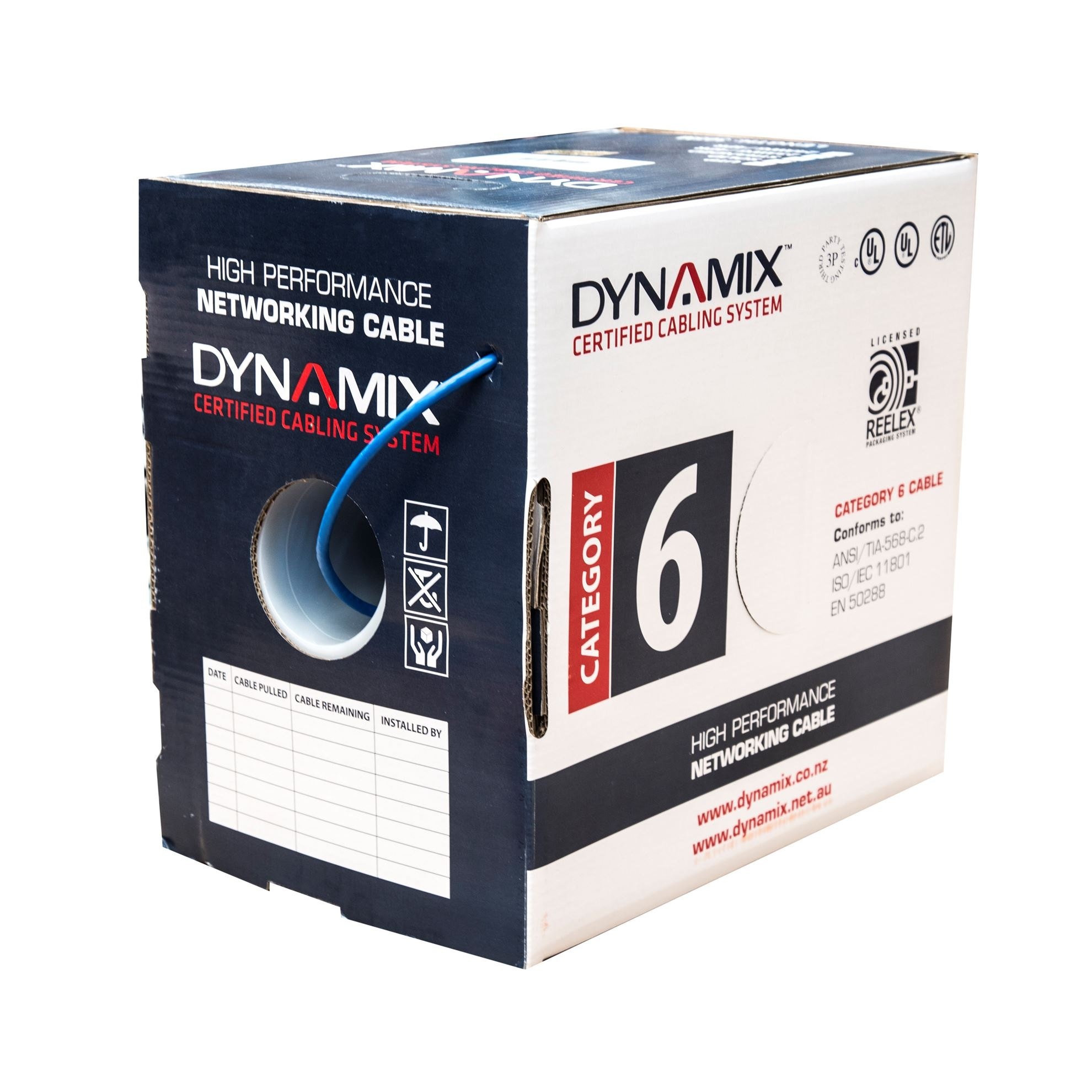

Dynamix Cat6 Blue UTP SOLID Cable Roll (305m)
In stock
Ships tomorrow
Our Price
$284.59
In stock
Ships tomorrow
this item may be nonreturnable
Shipping & Availability
Ships tomorrow.
Deliver to
Auckland
for $19
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
4 - 5 working days
Click & Collect
Features
- 305m Roll
- 250MHz, 24AWGx4P
- PVC Jacket
- Colour: Blue
Description
Specifications
| Conductor | Material | SOLID-Bare Copper |
| 24AWG | ||
| Insulation | Material | HDPE |
| Diameter | 0.87 ±0.03mm | |
| Colour | A. White-Blue, Blue | B. White-Orange, Orange |
| C. White-Green, Green | D. White-Brown, Brown | |
| Rip-cord | Yes | |
| Drain Wire | No | |
| Sheath | Thickness | 0.55 ±0.05mm |
| External O.D. | 4.9 ±0.4mm. | |
| Surface | Clean, Frap, Satiation | |
| Material | PVC (RoHS Complied) & CM rated (UL E225668) | |
| Colour | Blue | |
| Sheath Physical Properties | Before Aging | Tensile Strength (Mpa) ≥13.5/Elongation (%) ≥150 |
| Ageing Period (°C x hrs) | 100°C x 24h x 7d | |
| After Aging | Tensile Strength (Mpa) ≥12.5/Elongation (%) ≥125 | |
| Cold Blend (-20 ±2°C x4h) | No visible cracks | |
| Electrical Characteristics (20°C) | 1.0-250.0MHz, Characteristic impedance (Ω) | 100 ±15 |
| 1.0-250.0MHz, Delay Shew (ns/100m) | ≤45 | |
| DC Resistance (Ω/100m) max | 11.0 | |
| DC Conductor Resistance Unbalance (%) max | 5.0 |
In The Box
- Dynamix Cat6 Blue UTP SOLID Cable Roll (305m)
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Dynamix Cat6 Blue UTP SOLID Cable Roll (305m)
- Manufacturer: Dynamix
- Model: C-C6-SLD24-BLUE
- SKU: C-C6-SLD24-BLUE
- RM Product #: 98233
- Length Meters: 305 m
- Colour: Blue
- Cable Type: Cat6
- Warranty: Click here for warranty terms view terms
