Eartec UPMON9 UltraPAK 9-Person HUB Intercom System with Monarch Headset

Product #96508 | SKU UPMON9 | Eartec
Usually ships in 4 - 6 weeks what does this mean?
Our Price $5,549.00
Usually ships in 4 - 6 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 4 - 6 weeks. Deliver to Auckland for $5.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 4 - 6 weeks
Click & Collect

Features

  • Provides Hands-Free Communication
  • 9 Rechargeable Batteries
  • 8-Port Charger
  • Medium Soft-Side Case

Description

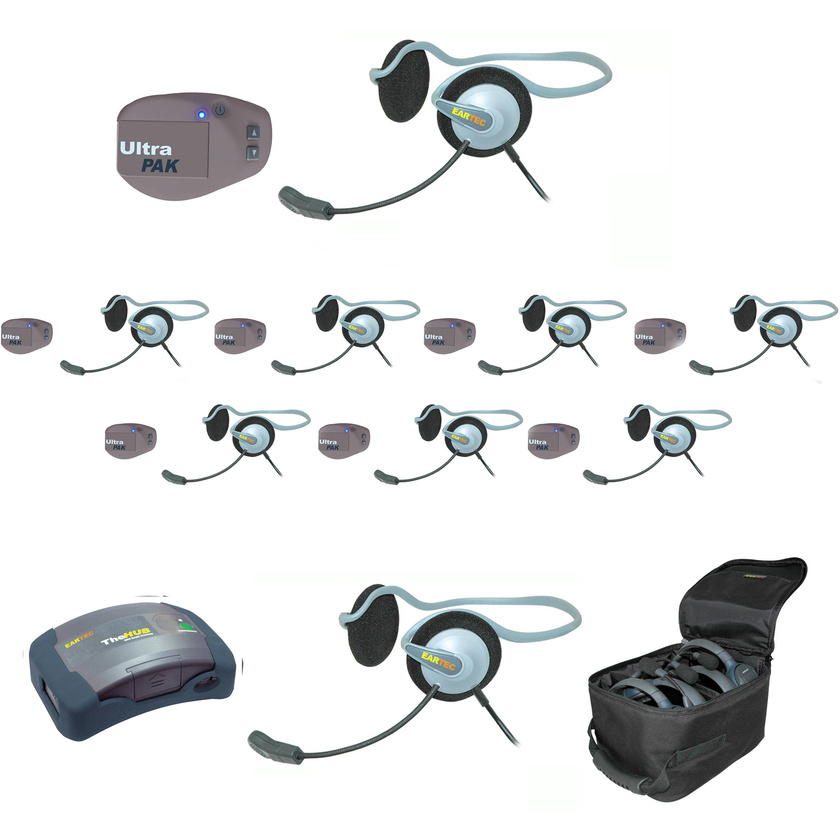

The Eartec UPMON9 UltraPAK 9-Person HUB Intercom System with Monarch Headset includes one HUB Mini Base Station, eight UltraPAK Remote Beltpacks, nine Monarch Headsets, nine rechargeable batteries, an 8-port battery charger, and a medium soft-side case. It is designed to accommodate nine-person crews who need to communicate wirelessly while simultaneously working with their hands.

The Hub is designed to extend the range of your existing Eartec wireless system by over 304.8m. The UltraPAK utilises Digital Enhanced Cordless Technology (DECT) to provide wireless communication within .4km. It weighs only 71g and includes a volume control, mute button, and LED indicator. The Monarch Headset features padded speakers, which sit on both ears, and a thin back band that runs around the neck.

Eartec Monarch Low-Profile Midweight Plug-In Headset for UltraLITE HUB Intercom System

These lightweight headsets were originally designed for use with commercial speech recognition computers. They are manufactured with PBT, the same material used to make automobile bumpers and are built for rough industrial environments. Monarch headsets feature a slender backhand that offers a unisex fit.

Eartec 8-Port Multi-Charger

The Eartec 8-Port Multi-Charger features eight bays to recharge the batteries for UltraLITE, UltraPAK, and HUB. When the batteries reach full charge, the corresponding LED turns from red to green indicating that the battery is charged up and ready to go. The use of external batteries allows users to keep their systems up and running with minimal down time. The charge time is approximately three hours. The charging base ships with an AC adapter.

Specifications

Standard DECT 6.0
Frequency 1920 to 1930 MHz
Connector 2.5 / 3.5 mm plug-in
Channel Bandwidth 1.728 GHz
Modulation Type GFSK
Transmission Speed 1.152 Mbps (baud rate)
Duplex Mode Time Division Duplex (TDD)
Encoding Speech Encoding
ADPCM / 32 bit/s
RF RF Accessing
Time Division Multiple Access (TDMA)
Range 0.25 mile / 400 m in open space
Power Supply Headset Power Supply
Rechargeable lithium 3.7 V / 800 mAh, 3.0 Wh
Charger Power Supply
AC / Adapter: Input 100 to 240 VAC
Charge Time 3 hours
Operation Time 4 hours
Storage Temperature -10 to 60°C
Dimensions 13.97 x 3.81 x 9.53 cm
Weight 113.4 g
General
Product Type Headset - wired
Weight 3.99 oz
Recommended Use 2-way radio
Headphones
Headphones Form Factor On-ear - behind-the-neck mount
Connectivity Technology Wired
Sound Output Mode Stereo
Frequency Response 20 - 20000 Hz
Sensitivity 96 dB
Impedance 32 Ohm
Diaphragm Mylar - 1.2 in
Microphone
Type Boom
Form Factor Headset microphone
Microphone Technology Electret condenser
Remote Control
Controls Push to Talk (PTT)
Connections
Connector Type Headset
Cable
Cable Length .9m
**Miscellaneous **
Cable Details Headset cable - .9m
Manufacturer Warranty
Service & Support Limited warranty - 6 months
General
Compatibility Eartec UltraLITE Lithium Polymer Rechargeable Battery
Power
Power Source AC Input (Included)
Physical
Cable Length Not Specified by Manufacturer
Dimensions Not Specified by Manufacturer
Weight Not Specified by Manufacturer

In The Box

  • Eartec HUB Mini Duplex Transceiver Base for 1 Plug-In & up to 8 Wireless UltraLITE Headsets (USA)
  • Eartec UltraPAK Remote Beltpack for UltraLITE & HUB
  • Eartec Monarch Low-Profile Midweight Plug-In Headset for UltraLITE HUB Intercom System
  • Eartec 8-Port Multi-Charger
  • Rechargeable Batteries
  • Medium Soft-Side Case

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Eartec UPMON9 UltraPAK 9-Person HUB Intercom System with Monarch Headset
  • Manufacturer: Eartec
  • Model: UPMON9
  • SKU: UPMON9
  • RM Product #: 96508
