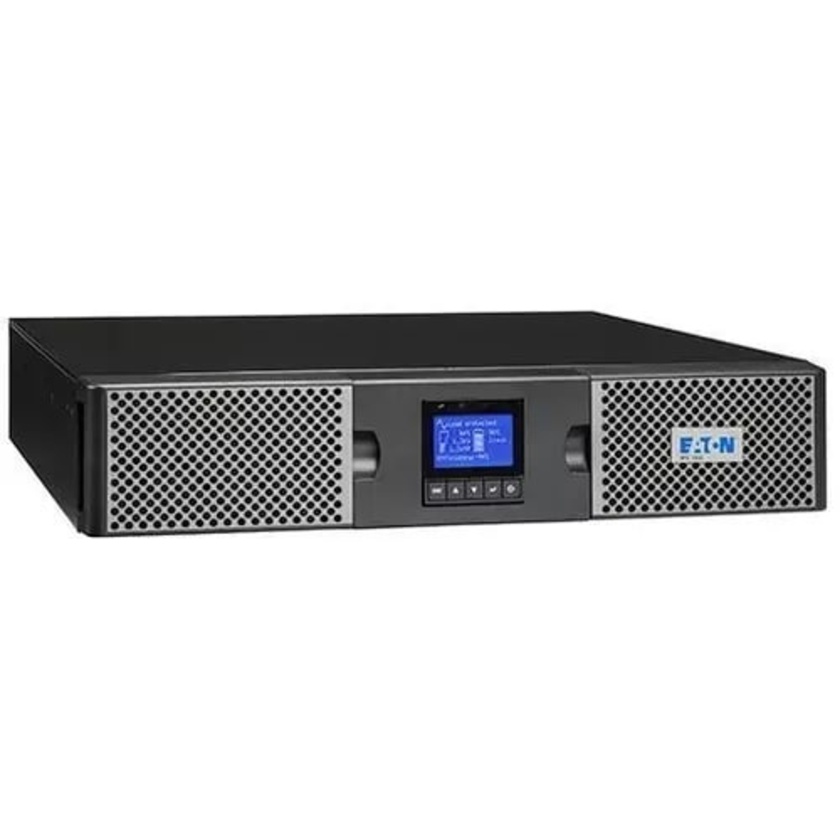

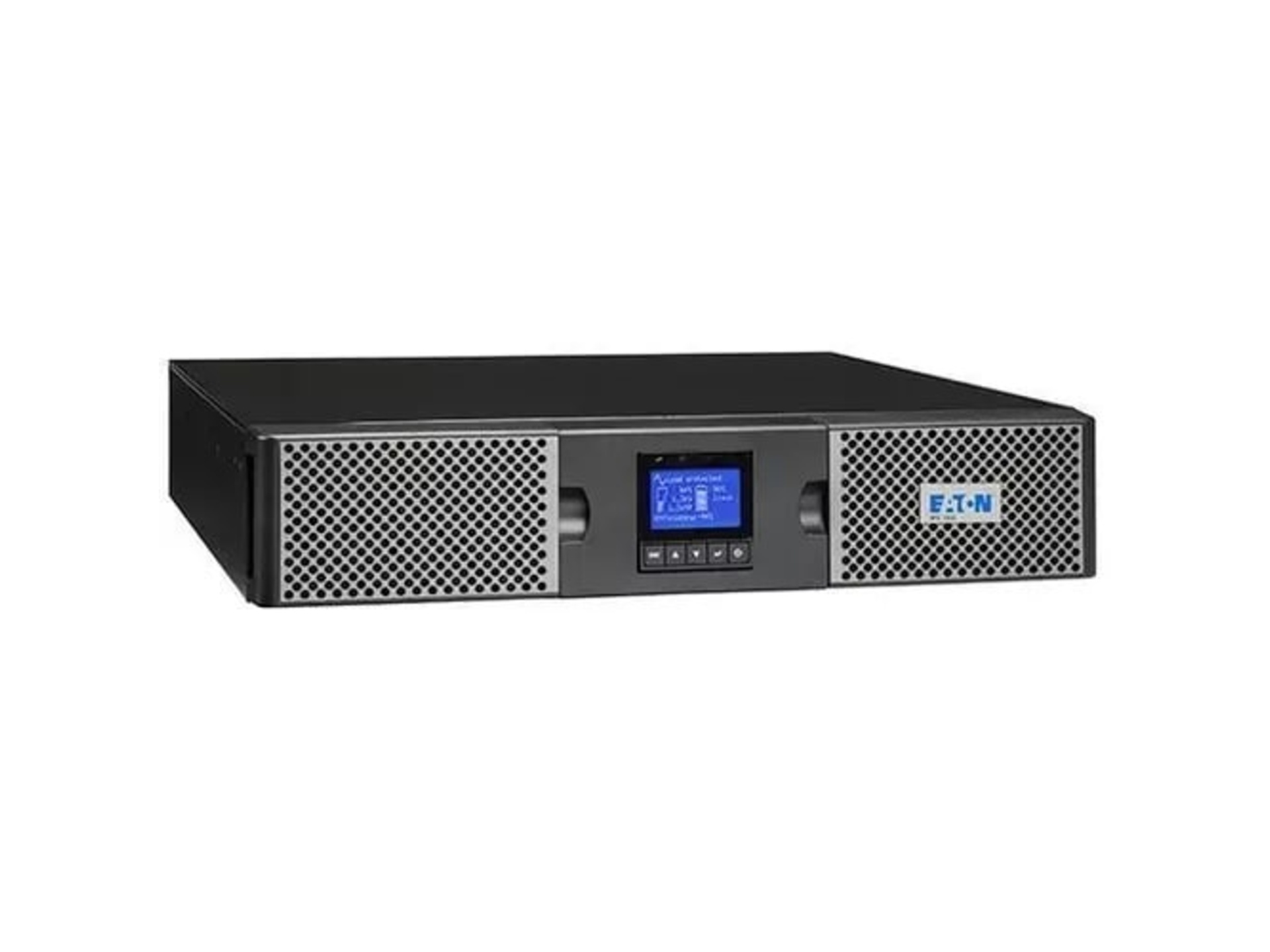

The Eaton 9PX 2000VA 2U Rack/Tower 10Amp Input 230V (Rail Kit Included) is a versatile 2000VA/1800W double-conversion online UPS system designed for critical IT installations and edge networks.
Eaton 9PX 2000VA 2U Rack/Tower 10Amp Input 230V (Rail Kit Included)
In stock Ships in 2 - 4 working days
Our Price
$4,349
In stock Ships in 2 - 4 working days
this item may be nonreturnable
Shipping & Availability
Ships in 2 - 4 working days.
Deliver to
Auckland
for $81
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
3 - 4 working days
Click & Collect
Features
- 2000VA / 18000W Capacity
- 8 Outlets
- Rack/Tower Configuration
- 10Amp Input
Description
Specifications
| General | |
| Topology | On-line double conversion with Power Factor Correction (PFC) system |
| Configuration | Rack/Tower |
| Rating (VA/Watts) | 2000/1800 |
| Dimensions (H x W x D, mm) | 86.5 x 440 x605 |
| Weight (kg) | 27.4 |
| Electrical Input | |
| Connection | (1) IEC-320-C14 |
| Input Voltage Range | 176-276V without derating (up to 100-276V with derating) |
| Nominal Voltage | 200/208/220/230/240V |
| Frequency | 50/60 Hz autoselection |
| Frequency Range | 40-70 Hz |
| Electrical Output | |
| Nominal Voltage | 200/208/220/230/240V |
| Output Receptacles | (6) IEC-320-C13 (2) Aust. 10A |
| Remotely controlled sockets | 2 Groups: (2) Aust. 10A & (2) IEC C13 10A |
| Efficiency (Normal Mode) | Up to 93% in online mode (Up to 98% in Hi-efficiency mode) |
| Output Frequency | 50/60 Hz autoselect, frequency converter mode |
| Battery | |
| Battery Management | ABM® & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units |
| Extended Battery Capability | EBM (2U) |
| Communications | |
| User Interface | Multilingual graphical LCD display |
| Communication Ports | 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay |
| Communication Slot | 1 slot for Network-MS card, ModBus-MS or Relay-MS cards |
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Eaton 9PX 2000VA 2U Rack/Tower 10Amp Input 230V (Rail Kit Included)
- Manufacturer: Eaton
- Model: 9PX2000IRTAU
- SKU: 9PX2000IRTAU
- RM Product #: 120472
