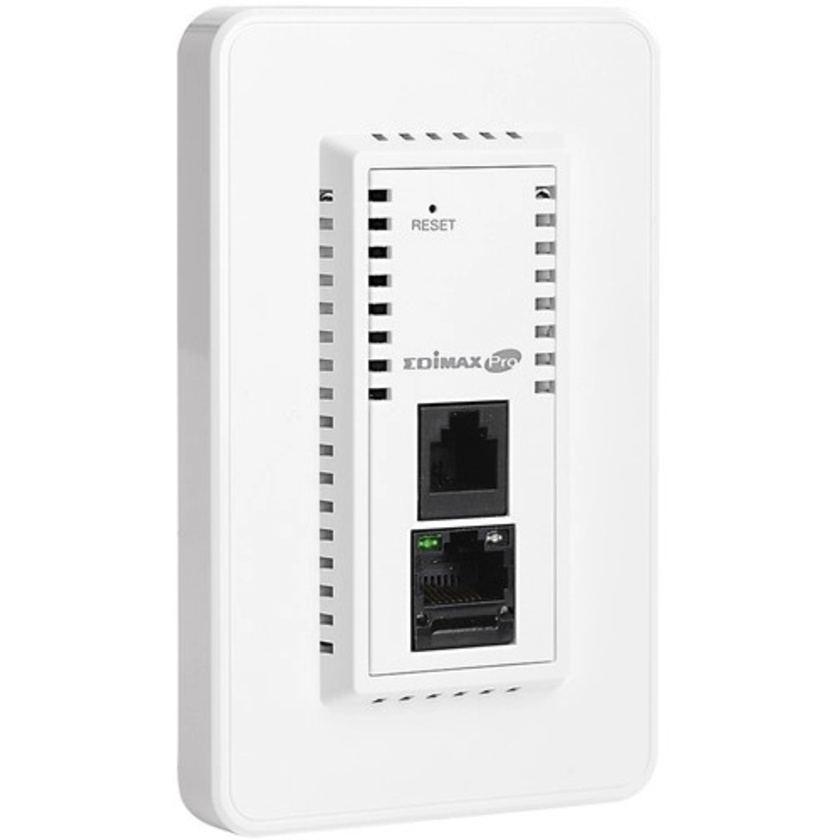

Edimax IAP1200 AC1200 In-Wall Dual-Band PoE Access Point

Product #99097 | SKU IAP1200 | Edimax
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
Our Price $121
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 3 - 5 working days. Deliver to Auckland for $5.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 5 working days
Click & Collect

Features

  • 802.11ac High-Speed Dual-Band
  • In-wall Design with Easy Installation Kit
  • Compact Ultraslim Housing Design
  • Designed for High-Density BYOE Usage
  • Multiple SSIDs up to 32 for Security Management

Description

The Edimax IAP1200 AC1200 In-Wall Dual-Band PoE Access Point is a powerful wireless solution designed to meet the needs of modern mainstream businesses. With the latest IEEE 802.11ac technology for wireless speeds up to 1200Mbps, the stylish in-wall design is specifically for existing building structures so you can easily change an existing in-wall wired Ethernet jack to a wireless access point. Ideal areas of deployment include offices, hotels, MDUs (Multi-Dwelling Units), airports, meeting rooms, schools, campuses etc.

For hotels which demand security, flexibility and speed, the IAP1200 provides guests with a convenient wireless LAN service. With standard US or EU type Ethernet wall jacks already installed, there’s no need for extra time and cost to deploy a wireless network – you can reduce re-wiring costs while blending the AP with the interior décor. The high-density capacity is ideal for BYOE workplaces or other environments with a high volume of users and wireless devices. Multiple SSIDs can be configured for different departments or user groups and a built-in RADIUS server provides additional verification. Additionally featuring fast roaming for seamless transitions between access points, Power over Ethernet support (PoE) and an intuitive web-based management interface – which provides flexibility for deployment and extensive management options for company MIS departments and network administrators.

When performance and security are critical for your business, you need products that are engineered for your industry. The Edimax Pro series is designed to help your business and provide the connectivity that you rely on every day, with safety and effectiveness guaranteed.

Specifications

Hardware
LAN Interface 2 x Gigabit Ethernet ports
2 x RJ-11 ports
PoE 802.3af (supports 802.3at)
Antenna Type: 2 x built-in PIFA
Gain: 2.14 dBi (2.4 GHz), 3.8 dBi (5 GHz) max
Power 802.3af (support 802.3at)
Power Consumption 8 W (full loading)
Mounting In-wall
WPS / Reset Button Yes
LED Indicator Power, Diag
Temperature & Humidity
Operating Temperature 0 to 40°C
Storage Temperature -20 to 60°C
Operating Humidity 90% or less
Storage Humidity 90% or less
Power Saving 802.3az
Internal Buzzer Yes
Housing Flammability rating plastic
Wireless
Standard 802.11a/b/g/n/ac concurrent dual-band
No. of Radios 2
Receiver Sensitivity ≤ -91 dBm
Certifications CE / FCC
Fast Roaming Yes
Number of SSIDs Supported 16 (2.4 GHz) + 16 (5 GHz)
Performance
Data Rates 300 + 867 Mbps (maximum)
Concurrent Clients Up to 50 per radio
RF Specification
Frequency Band •Radio Ⅰ: 802.11b/g/n 2.4122.484 (GHz)
•Radio Ⅱ: 802.11a/n/ac 5.18
5.24 (GHz), 5.7455.825 (GHz)
(The supported frequency band is restricted by local regulations)
Operation Channels 2.4 GHz
US/Canada 1-11; 2.4122.462 GHz
Europe 1-13; 2.4122.472 GHz
Japan 1-14; 2.412
2.484 GHz
5 GHz

In The Box

  • Edimax IAP1200 AC1200 In-Wall Dual-Band PoE Access Point
